XKU600-TPUQC (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XKU60#,64#,65#

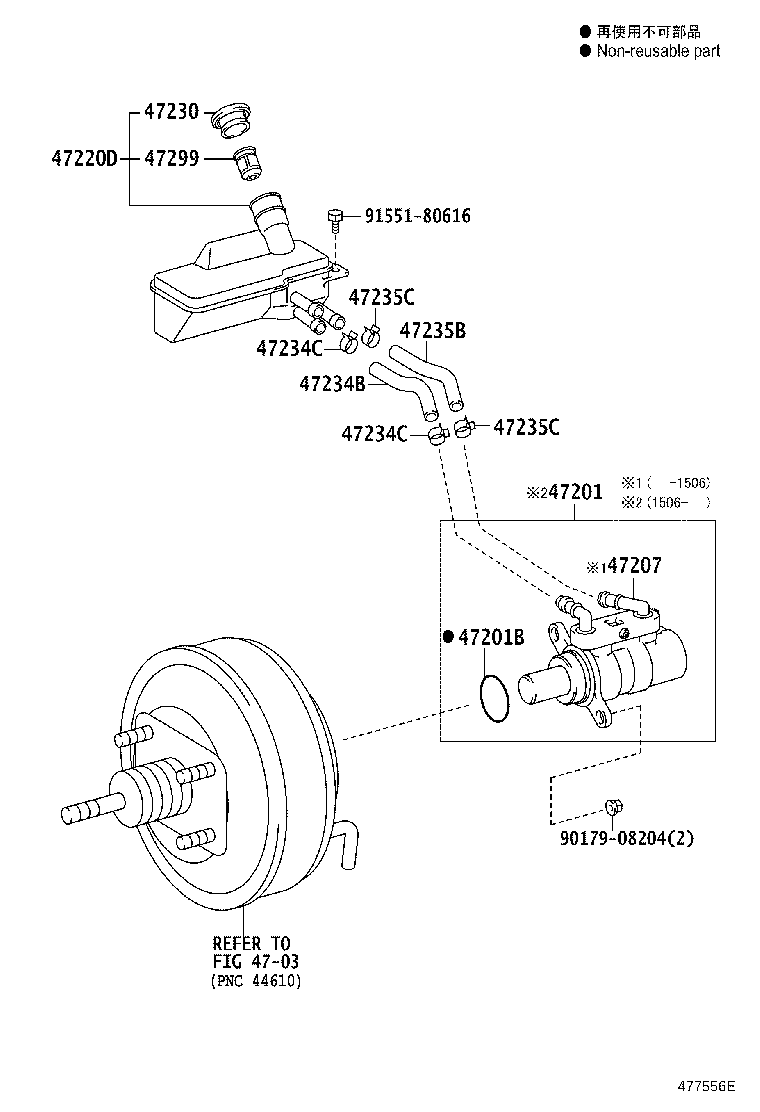

Click highlighted areas on diagram

diagram 4703 47201 47201B 47207 47220D 47230 47234B 47234C 47234C 47235B 47235C 47235C 47299 9017908204 9155180616
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-37280

XKU60#,64#,65#

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH001

XKU60#,64#,65#

 1
47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK
47207-37160

XKU60#,64#,65#

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-37160

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-37020

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
47234B - TUBE, RESERVOIR, NO.1
47234-37170

XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKU600,64#,655..DM6,T3,T4

 1
47234C - CLIP(FOR RESERVOIR TUBE NO.1)
96133-41500

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 2
47234C - CLIP(FOR RESERVOIR TUBE NO.1)
96133-41500

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 2
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-37160

XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKU600,64#,655..DM6,T3,T4

 1
47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)
96133-41500

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 2
47235C - CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)
96133-41500

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-28010

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
Common parts
90179-08204
91551-80616
Linked diagrams
4703
