XKU600-TPUMC3 (2011)
Toyota Dyna/Toyoace Hv

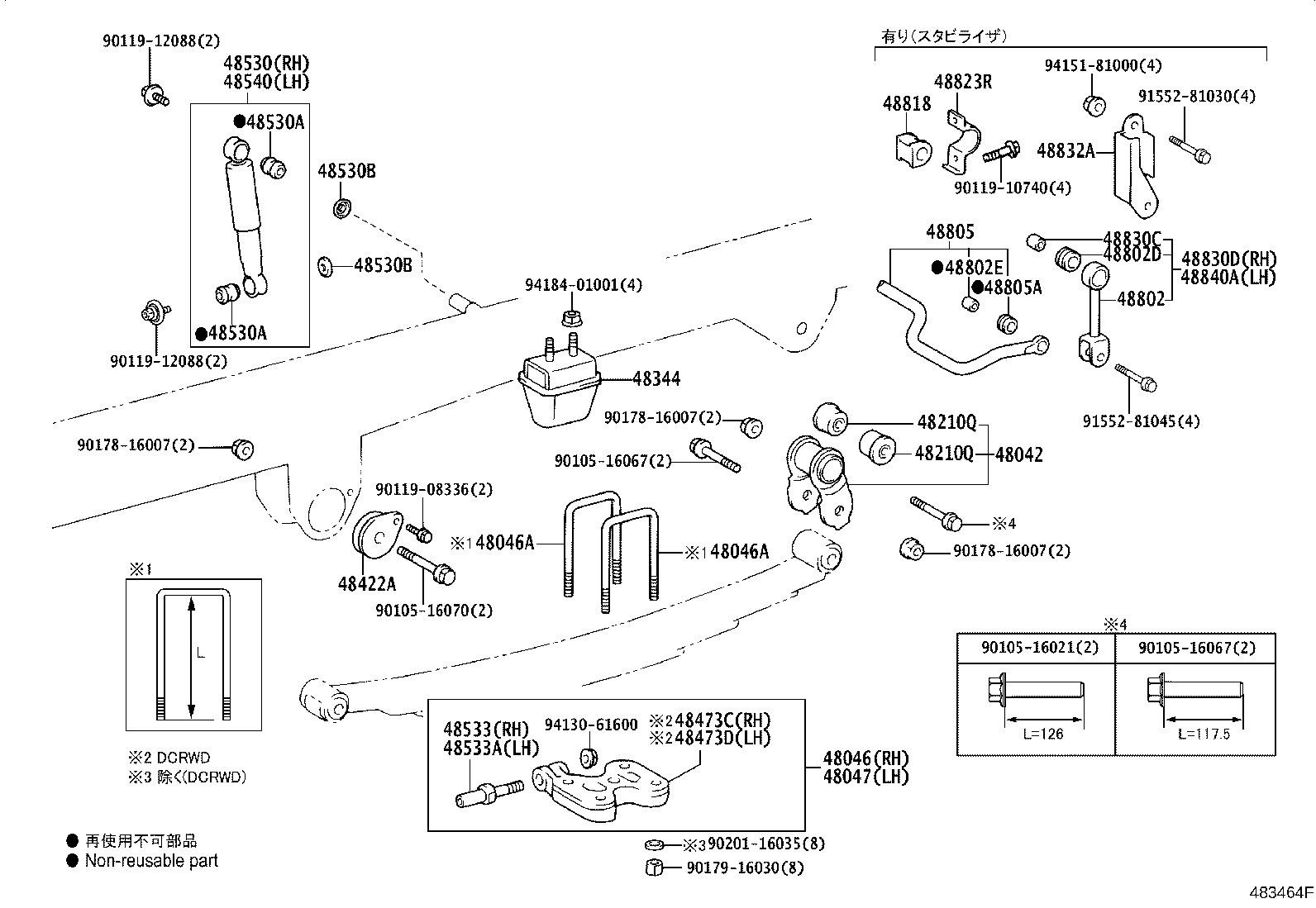

ILLUST NO. 1 OF 2(1107- )XKU645..DCRTK ; (1107- )XKC605,645,XKU60#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37080 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16077 |
XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T 長さ=240 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16077 |
XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T 長さ=240 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37080 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37170 |
XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
XKC605,645,XKU60#,645 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80744 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) ﾏｰｸ 48531−37190 |
1 | ||
| 48531-80800 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) ﾏｰｸ 48531−37191 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80800 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) ﾏｰｸ 48531−37191 |
1 | ||
| 48531-80744 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) ﾏｰｸ 48531−37190 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-37010 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13009 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-37030 |
XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-13009 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48815-37060 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-37011 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48830C - SPACER(FOR REAR STABILIZER LINK) | ||||
| 90560-10044 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-37010 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-37020 |
XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-37010 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..T4..20T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-08336 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91552-81030 | ||||
| 91552-81045 | ||||
| 94130-61600 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

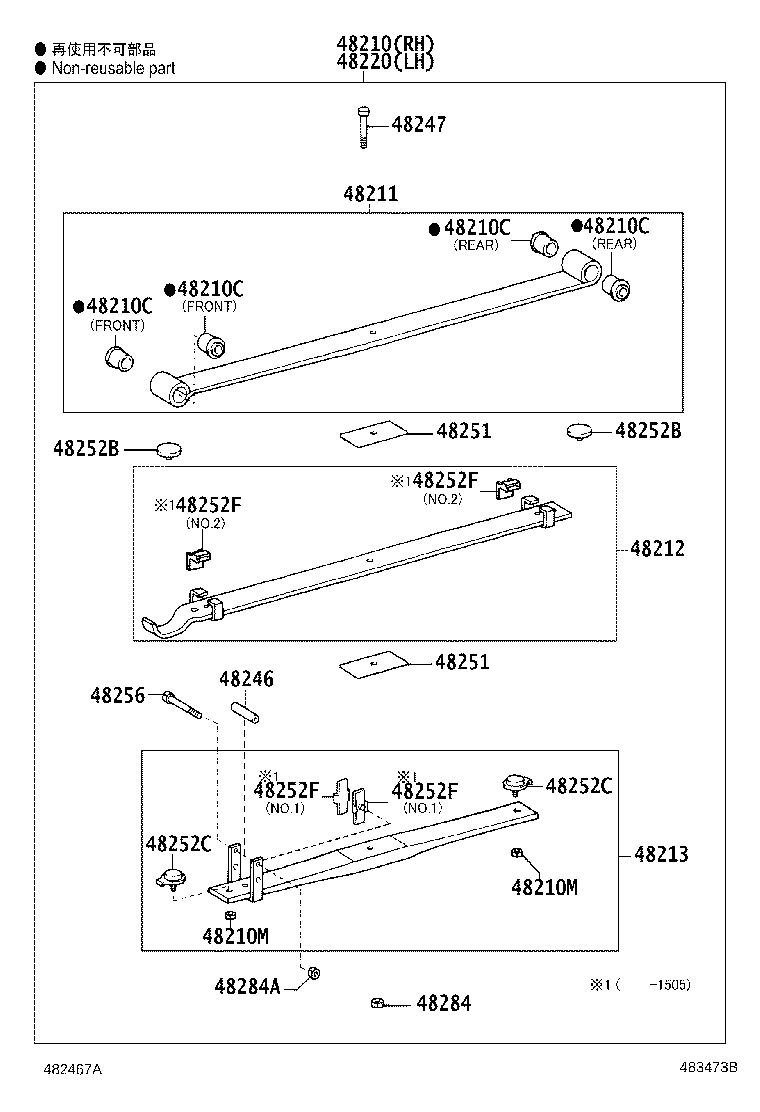

ILLUST NO. 2 OF 2(1107- )XKC605,645,XKU60#,645..20T..DCRTK..CBU,IV3
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37C20 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) 3枚ﾘｰﾌ |
1 | ||
| 48210-37C21 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) 3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T ﾘﾔ |
4 | ||
| 90389-16024 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T ﾘﾔ |
4 | ||
| 90389-16024 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T ﾘﾔ |
4 | ||
| 90389-16024 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4 ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T ﾘﾔ |
4 | ||
| 90389-16024 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4 ﾌﾛﾝﾄ |
4 | ||
| 48210M - NUT(FOR REAR SPRING) | ||||
| 48284-0W060 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 94184-61000 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48210M - NUT(FOR REAR SPRING) | ||||
| 48284-0W060 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 94184-61000 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37C20 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48201-37C21 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37C20 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48202-37C21 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-37C20 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48203-37C21 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37C20 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) 3枚ﾘｰﾌ |
1 | ||
| 48210-37C21 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) 3枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48246-0W060 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37622 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48247-37880 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37521 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48251-36530 |
XKC655..T3;XKU650..T3..20T..CBU;XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37521 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48251-36530 |
XKC655..T3;XKU650..T3..20T..CBU;XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XKC655..T3;XKU650..T3..20T..CBU;XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48252-37521 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XKC655..T3;XKU650..T3..20T..CBU;XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48252-37521 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..T4 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..T4 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) NO.2 |
8 | ||
| 48252-37630 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) NO.2 |
8 | ||
| 48252-37630 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) NO.2 |
8 | ||
| 48252-37630 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) NO.2 |
8 | ||
| 48252-37630 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) NO.1 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3B770 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48256-37521 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48299-27620 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 94130-00802 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
| 48284-37521 |
XKC605,645,XKU60#,645..20T..(CBU,IV3) |
2 | ||
