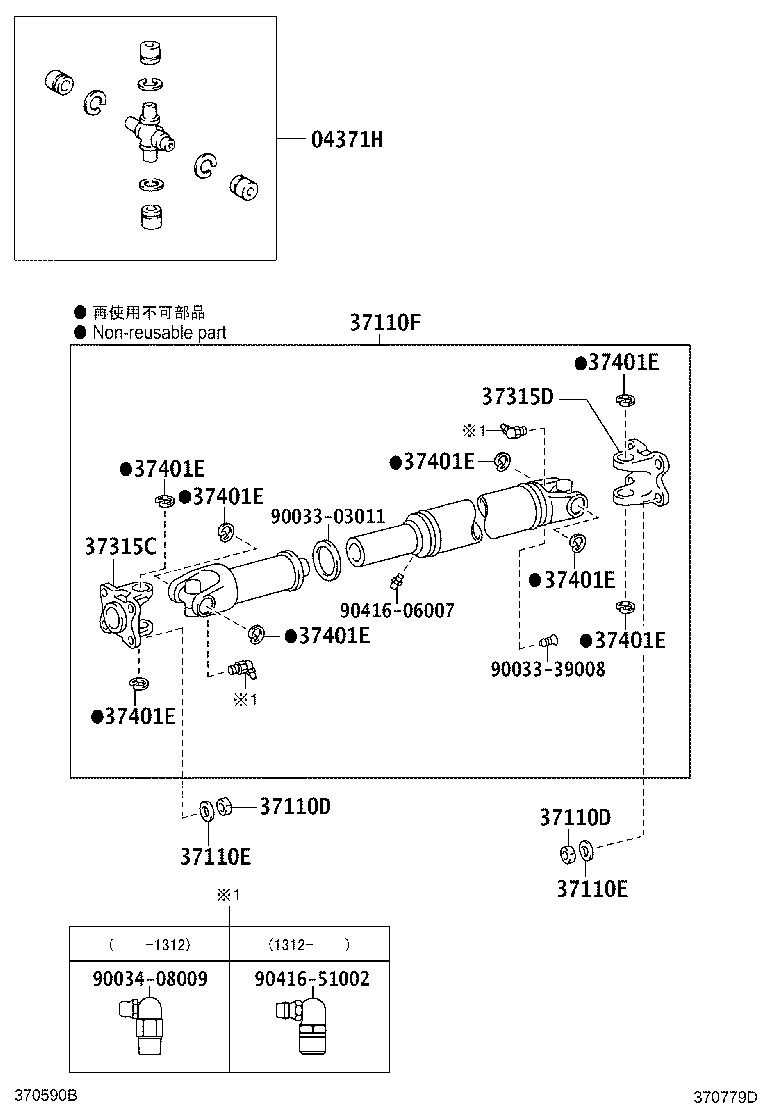

XKU600-TPUMC3 (2011)
Toyota Dyna/Toyoace Hv
(1107- )XKC605,645,XKU60#,64#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
XKC605,645,XKU60#,64# |
2 | ||
| 04371-37081 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,64#..DM6,T3,T4 |
2 | ||
| 04371-37110 |
XKC605,645,XKU60#,64# |
2 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37F11 |
XKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,XKU600..DM6,T4 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.62 |
8 | ||
| 90035-21039 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.65 |
8 | ||
| 90035-21044 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.56 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.62 |
8 | ||
| 90035-21039 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.65 |
8 | ||
| 90035-21044 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.56 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.62 |
8 | ||
| 90035-21039 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.65 |
8 | ||
| 90035-21044 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.56 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.62 |
8 | ||
| 90035-21039 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.65 |
8 | ||
| 90035-21044 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.56 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.62 |
8 | ||
| 90035-21039 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.65 |
8 | ||
| 90035-21044 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.56 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.62 |
8 | ||
| 90035-21039 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.65 |
8 | ||
| 90035-21044 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.56 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.62 |
8 | ||
| 90035-21039 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.65 |
8 | ||
| 90035-21044 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.56 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.62 |
8 | ||
| 90035-21039 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.65 |
8 | ||
| 90035-21044 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 厚さ=1.56 |
8 | ||
| Common parts | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08009 | ||||
| 90416-06007 | ||||
| 90416-51002 | ||||
