XKU600-TPUMC (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2015
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )DCRTK

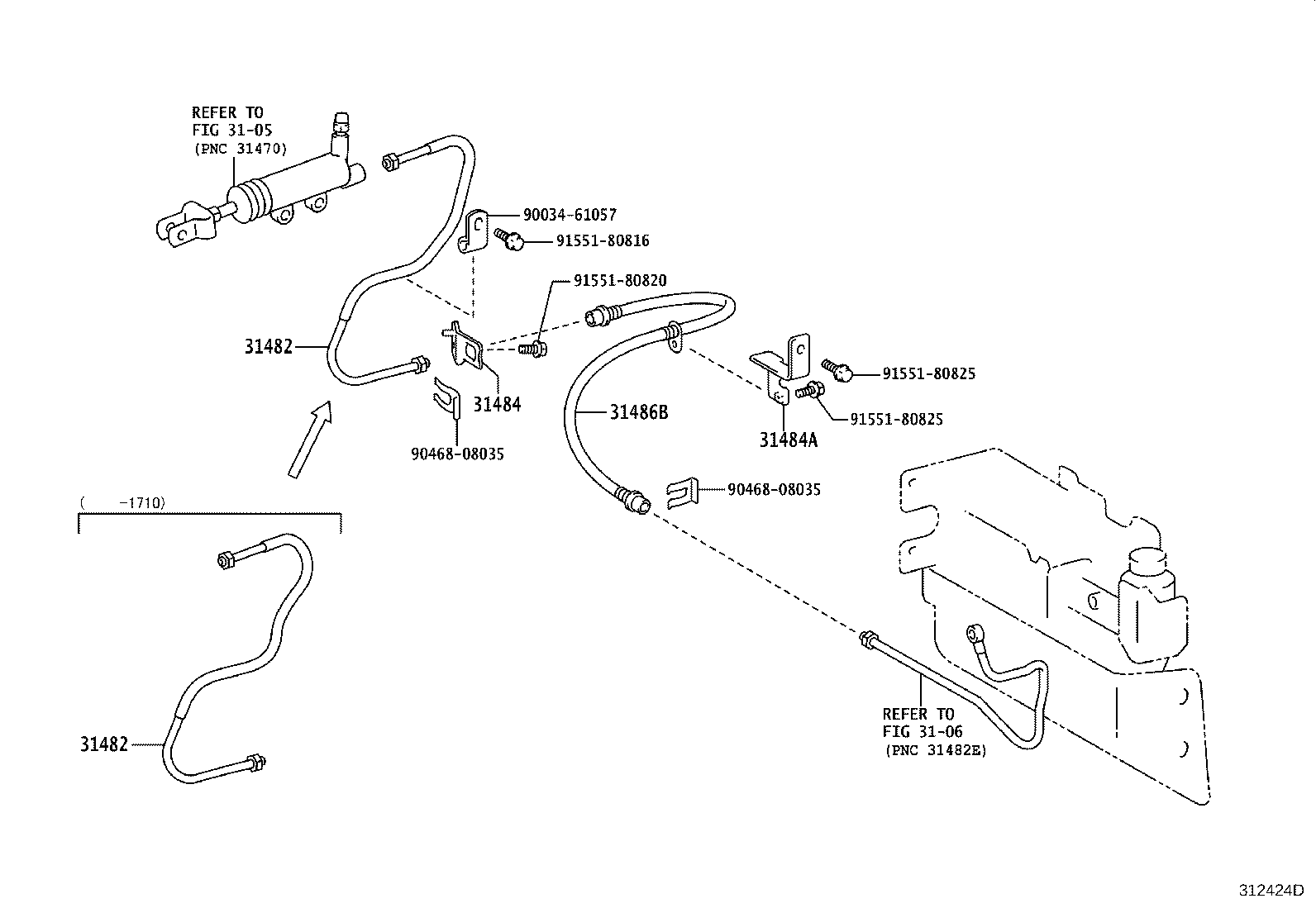

Click highlighted areas on diagram

diagram 3105 3106 31482 31482 31484 31484A 31486B 9003461057 9046808035 9046808035 9155180816 9155180820 9155180825 9155180825
Part # Description Qty Price
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-37360

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-37360

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-37320

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37310

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
31486B - HOSE, MASTER CYLINDER TO RELEASE CYLINDER
31486-37120

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
Common parts
90034-61057
90468-08035
91551-80816
91551-80820
91551-80825
Linked diagrams
3105
3106
