XKU508-TQTMB3 (2008)

Toyota Dyna/Toyoace Hv

Production Jan 2008 - Nov 2009
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )6FC

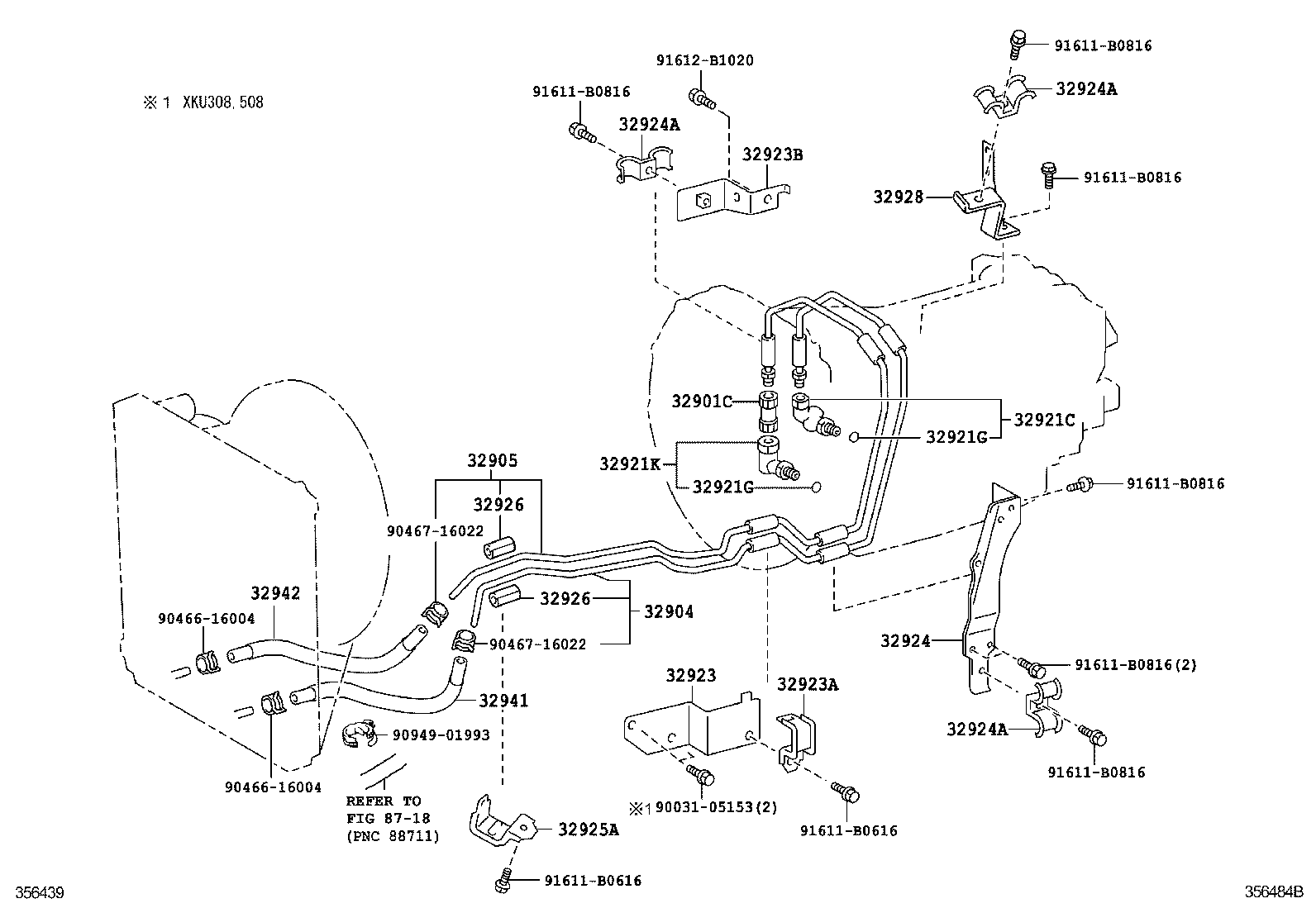

Click highlighted areas on diagram

A860E

diagram 32901C 32904 32905 32921C 32921G 32921G 32921K 32923 32923A 32923B 32924 32924A 32924A 32924A 32925A 32926 32926 32928 32941 32942 8718 9003105153 9046616004 9046616004 9046716022 9046716022 9094901993 91611B0616 91611B0616 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91612B1020
Part # Description Qty Price
32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32904-37200

XKU30#,344,508..6FC

 1
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
32905-37200

XKU30#,344,508..6FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32927-37021

XKU30#,344,508..6FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32929-25020

XKU30#,344,508..6FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-37011

XKU30#,344,508..6FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-37030

XKU30#,344,508..6FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

XKU30#,344,508..6FC

 3
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

XKU30#,344,508..6FC

 3
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

XKU30#,344,508..6FC

 3
32925A - CLAMP, FLEXIBLE HOSE, NO.2
32929-25020

XKU30#,344,508..6FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

XKU30#,344,508..6FC

長さ=45,内径=12

 10
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

XKU30#,344,508..6FC

長さ=45,内径=12

 10
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-37041

XKU30#,344,508..6FC

 1
Common parts
90031-05153
90466-16004
90467-16022
90949-01993
91611-B0616
91611-B0816
91612-B1020
Linked diagrams
8718
