XKU508-TQMMB3 (2006)

Toyota Dyna/Toyoace Hv

Production Oct 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XKU308,338,348,508

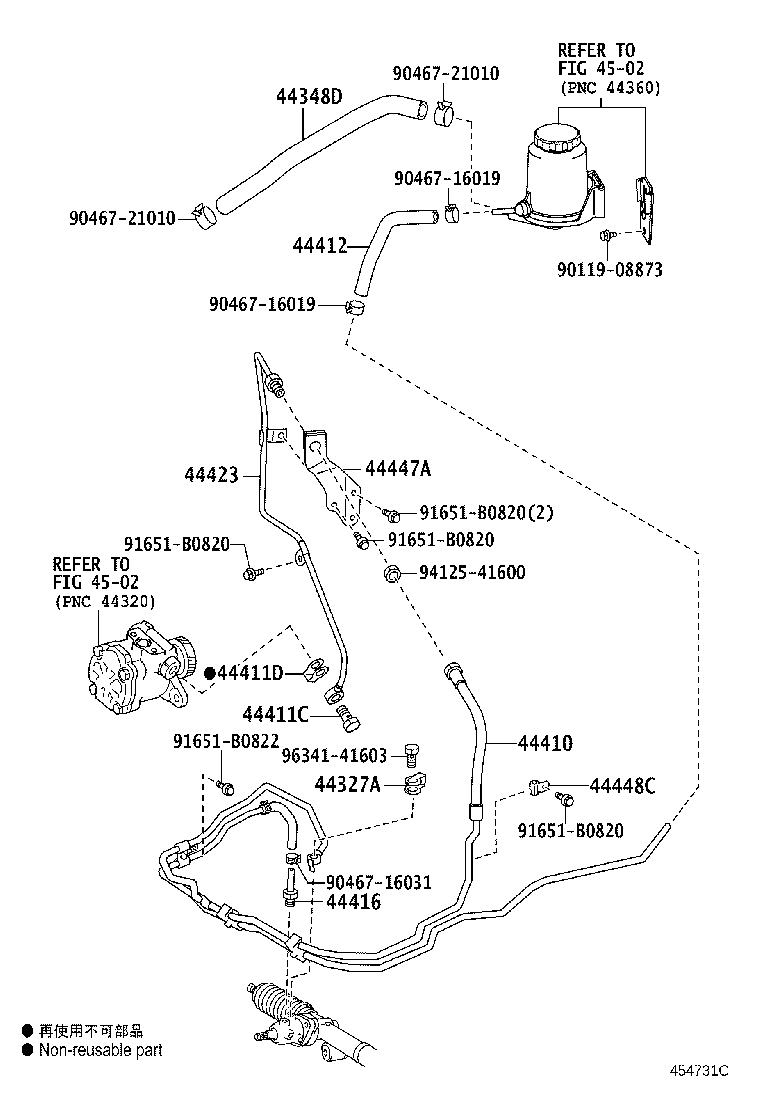

Click highlighted areas on diagram

diagram 44327A 44348D 44410 44411C 44411D 44412 44416 44423 44447A 44448C 4502 4502 9011908873 9046716019 9046716019 9046716031 9046721010 9046721010 91651B0820 91651B0820 91651B0820 91651B0820 91651B0822 9412541600 9634141603
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

XKU308,338,348,508

 1
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37400

XKU30#,338,34#,508

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-37160

XKU308,338,348,508

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

XKU30#,338,34#,508

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030

XKU30#,338,34#,508

 1
44412 - HOSE, RETURN
44412-37230

XKU344..6FC;XKU308,338,348,508

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

XKU308,338,348,508

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37220

XKU30#,338,34#,508

 1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060

XKU308,338,348,508

 1
Common parts
90119-08873
90467-16019
90467-16031
90467-21010
91651-B0820
91651-B0822
94125-41600
96341-41603
