XKU424-TQFRW3 (2003)
Toyota Dyna/Toyoace Hv
ILLUST NO. 1 OF 3(0310-0610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-37060 |
XKU414,424 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37160 |
XKU414,424..30T,35T |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45302-37010 |
XKU414,424 |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37170 |
XKU414,424..30T,35T |
1 | ||
| Common parts | ||||
| 90031-16061 | ||||
| 90105-14002 | ||||
| 90170-30001 | ||||
| 90204-30040 | ||||
| 90901-01004 | ||||
| 94130-01401 | ||||
| 94130-01601 | ||||
| 94531-01400 | ||||
| 94531-01600 | ||||
ILLUST NO. 3 OF 3(0310-0505)30T,35T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39455 |
XKU414,424..30T,35T |
1 | ||
| 45046-39745 |
XKU414,424..30T,35T |
1 | ||
| 45046-39645 |
XKU414,424..30T,35T |
1 | ||
| 45046-39795 |
XKU414,424..30T,35T |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90031-71018 |
XKU414,424..30T,35T |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90031-71018 |
XKU414,424..30T,35T |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39475 |
XKU414,424..30T,35T |
1 | ||
| 45047-39285 |
XKU414,424..30T,35T |
1 | ||
| 45047-39395 |
XKU414,424..30T,35T |
1 | ||
| 45047-39515 |
XKU414,424..30T,35T |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39245 |
XKU414,424..30T,35T |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90031-71018 |
XKU414,424..30T,35T |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90031-71018 |
XKU414,424..30T,35T |
2 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-80001 |
XKU414,424..30T,35T |
1 | ||
| 45460-39675 |
XKU414,424..30T,35T |
1 | ||
| 45460-39555 |
XKU414,424..30T,35T |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37070 |
XKU414,424..30T,35T |
1 | ||
| 45461-37110 |
XKU414,424..30T,35T |
1 | ||
| 45461-37110 |
XKU414,424..30T,35T |
1 | ||
| 45461-37110 |
XKU414,424..30T,35T |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-39215 |
XKU414,424..30T,35T |
1 | ||
| 45611-39145 |
XKU414,424..30T,35T |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90171-27001 |
XKU414,424..30T,35T |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90171-27001 |
XKU414,424..30T,35T |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39335 |
XKU414,424..30T,35T |
1 | ||
| 45612-39265 |
XKU414,424..30T,35T |
1 | ||
| Common parts | ||||
| 90031-70113 | ||||
| 90031-70114 | ||||
| 90032-52014 | ||||
| 90032-52016 | ||||
ILLUST NO. 2 OF 3(0310-0610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-37160 |
XKU414,424..30T,35T |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-37110 |
XKU414,424 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20047 |
XKU414,424 NO.1 |
1 | ||
| 90029-20006 |
XKU414,424 NO.2 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20047 |
XKU414,424 NO.1 |
1 | ||
| 90029-20006 |
XKU414,424 NO.2 |
1 | ||
| 44101L - SEAL, DUST(FOR POWER PISTON SUB-ASSY) | ||||
| 90029-20708 |
XKU414,424 |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-37160 |
XKU414,424 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20061 |
XKU414,424 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-21023 |
XKU414,424 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01515 |
XKU414,424 |
2 | ||
| 44108C - COVER SUB-ASSY, SECTOR | ||||
| 44108-37160 |
XKU414,424 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20006 |
XKU414,424 |
1 | ||
| 44108F - SEAL, DUST(FOR SECTOR COVER) | ||||
| 90029-21023 |
XKU414,424 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
XKU414,424 |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
XKU414,424 |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-25010 |
XKU414,424 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 90029-02302 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90029-01001 | ||||
| 90029-34002 | ||||
| 94115-51200 | ||||
| 94531-01200 | ||||
| 96711-35042 | ||||

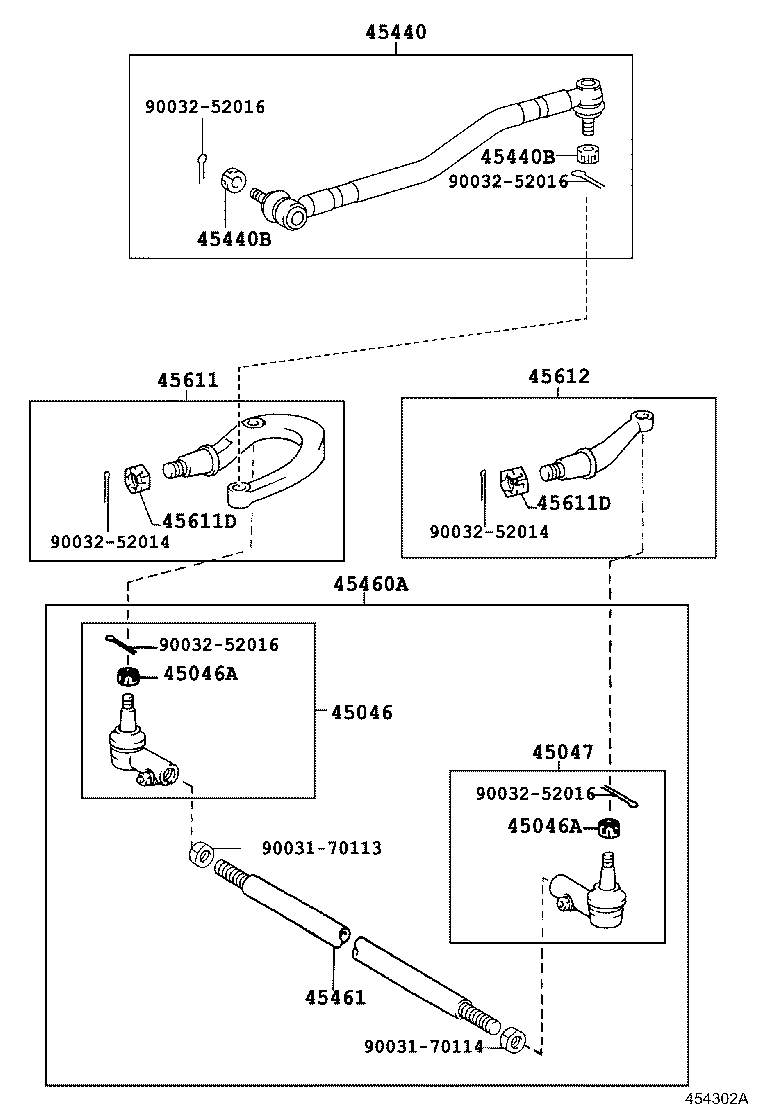

ILLUST NO. 3 OF 3(0505-0610)30T,35T ; (0610- )30T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39455 |
XKU414,424..30T,35T |
1 | ||
| 45046-39745 |
XKU414,424..30T,35T |
1 | ||
| 45046-39645 |
XKU414,424..30T,35T |
1 | ||
| 45046-39795 |
XKU414,424..30T,35T |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90031-71018 |
XKU414,424..30T,35T |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90031-71018 |
XKU414,424..30T,35T |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39475 |
XKU414,424..30T,35T |
1 | ||
| 45047-39285 |
XKU414,424..30T,35T |
1 | ||
| 45047-39395 |
XKU414,424..30T,35T |
1 | ||
| 45047-39515 |
XKU414,424..30T,35T |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39245 |
XKU414,424..30T,35T |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90031-71018 |
XKU414,424..30T,35T |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90031-71018 |
XKU414,424..30T,35T |
2 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-80001 |
XKU414,424..30T,35T |
1 | ||
| 45460-39675 |
XKU414,424..30T,35T |
1 | ||
| 45460-39555 |
XKU414,424..30T,35T |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37070 |
XKU414,424..30T,35T |
1 | ||
| 45461-37110 |
XKU414,424..30T,35T |
1 | ||
| 45461-37110 |
XKU414,424..30T,35T |
1 | ||
| 45461-37110 |
XKU414,424..30T,35T |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-39215 |
XKU414,424..30T,35T |
1 | ||
| 45611-39145 |
XKU414,424..30T,35T |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90171-27001 |
XKU414,424..30T,35T |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90171-27001 |
XKU414,424..30T,35T |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39335 |
XKU414,424..30T,35T |
1 | ||
| 45612-39265 |
XKU414,424..30T,35T |
1 | ||
| Common parts | ||||
| 90031-70113 | ||||
| 90031-70114 | ||||
| 90032-52014 | ||||
| 90032-52016 | ||||
