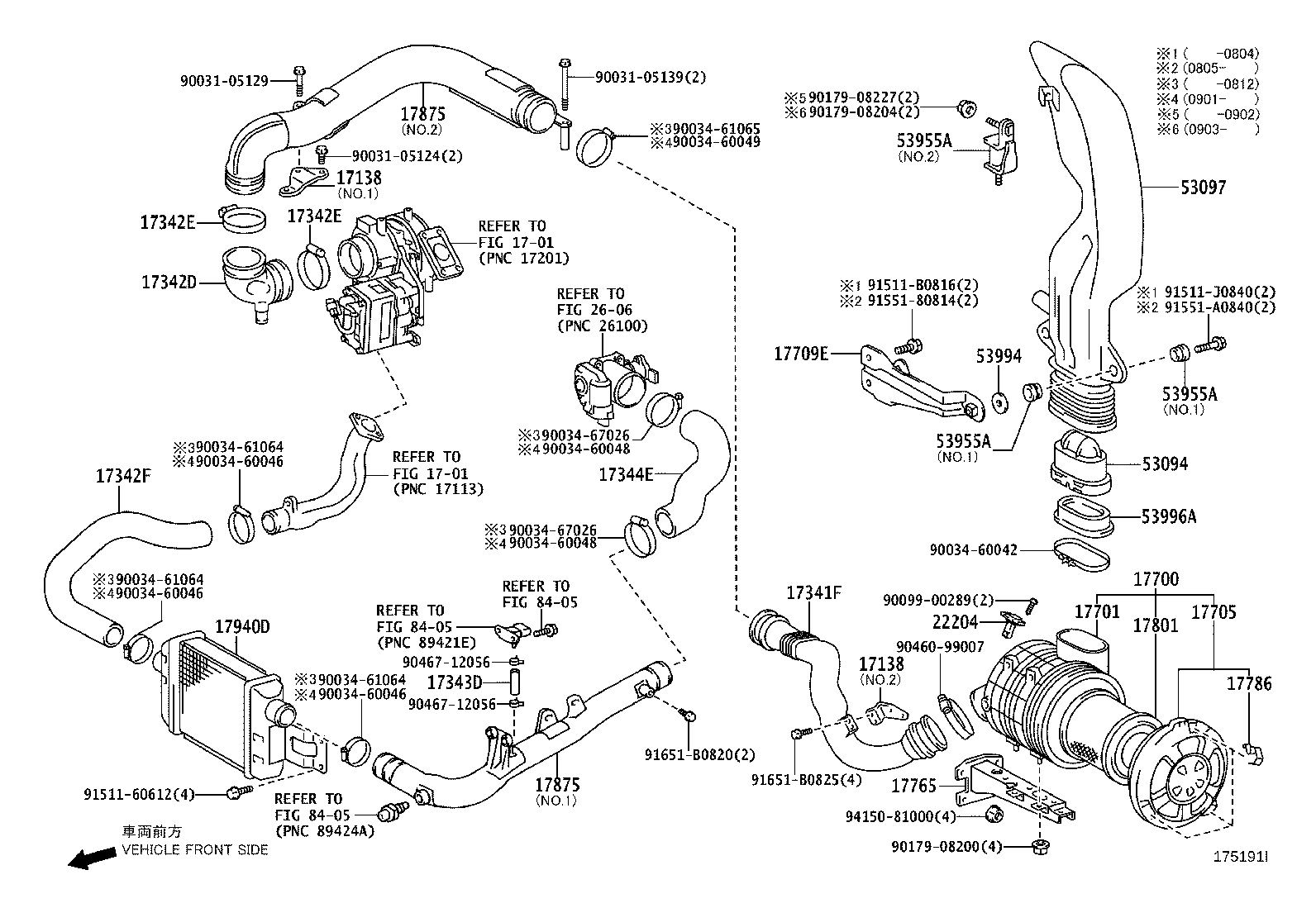

XKU414-TQFQB3 (2006)
Toyota Dyna/Toyoace Hv
(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78030 |
N04C..XKU414,424 NO.2 |
1 | ||
| 17138-78030 |
N04C..XKU414,424 NO.2 |
1 | ||
| 17138-78090 |
N04C..XKU414,424 NO.1 |
1 | ||
| 17138-78200 |
N04C..XKU414,424 NO.1 |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78030 |
N04C..XKU414,424 NO.2 |
1 | ||
| 17138-78030 |
N04C..XKU414,424 NO.2 |
1 | ||
| 17138-78090 |
N04C..XKU414,424 NO.1 |
1 | ||
| 17138-78200 |
N04C..XKU414,424 NO.1 |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78271 |
N04C..XKU414,424 |
1 | ||
| 17030-78410 |
N04C..XKU414,424 |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17341-78020 |
N04C..XKU414,424 |
1 | ||
| 17341-78200 |
N04C..XKU414,424 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90034-67025 |
N04C..XKU414,424 |
2 | ||
| 90034-67025 |
N04C..XKU414,424 |
2 | ||
| 90034-60050 |
N04C..XKU414,424 |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90034-67025 |
N04C..XKU414,424 |
2 | ||
| 90034-67025 |
N04C..XKU414,424 |
2 | ||
| 90034-60050 |
N04C..XKU414,424 |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-78011 |
N04C..XKU414,424 |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-78020 |
N04C..XKU414,424 |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-78020 |
N04C..XKU414,424 |
1 | ||
| 17344-78130 |
N04C..XKU414,424 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78200 |
N04C..XKU414,424 |
1 | ||
| 17700-78200 |
N04C..XKU414,424 |
1 | ||
| 17700-78201 |
N04C..XKU414,424 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-78160 |
N04C..XKU414,424 |
1 | ||
| 17701-78161 |
N04C..XKU414,424 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-78020 |
N04C..XKU414,424 |
1 | ||
| 17705-78020 |
N04C..XKU414,424 |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-37080 |
N04C..XKU414,424 |
1 | ||
| 53773-37080 |
N04C..XKU414,424 |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17706-78150 |
N04C..XKU414,424 |
1 | ||
| 17706-78150 |
N04C..XKU414,424 |
1 | ||
| 17786 - CLAMP, AIR CLEANER | ||||
| 17786-78010 |
N04C..XKU414,424 |
3 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-78020 |
N04C..XKU414,424 |
1 | ||
| 17801-78020 |
N04C..XKU414,424 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17015-78010 |
N04C..XKU414,424 NO.2 |
1 | ||
| 17113-78130 |
N04C..XKU414,424 NO.3 |
1 | ||
| 17103-78052 |
N04C..XKU414,424 NO.1 |
1 | ||
| 17103-78050 |
N04C..XKU414,424 NO.1 |
1 | ||
| 17113-78322 |
N04C..XKU414,424 NO.2 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17015-78010 |
N04C..XKU414,424 NO.2 |
1 | ||
| 17113-78130 |
N04C..XKU414,424 NO.3 |
1 | ||
| 17103-78052 |
N04C..XKU414,424 NO.1 |
1 | ||
| 17103-78050 |
N04C..XKU414,424 NO.1 |
1 | ||
| 17113-78322 |
N04C..XKU414,424 NO.2 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78050 |
N04C..XKU414,424 |
1 | ||
| 17940-78050 |
N04C..XKU414,424 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-21010 |
N04C..XKU414,424 |
1 | ||
| 22204-21010 |
N04C..XKU414,424 |
1 | ||
| 53094 - INLET, AIR CLEANER PIPE, NO.3 | ||||
| 53094-37010 |
XKU414,424 |
1 | ||
| 53094-37010 |
XKU414,424 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37330 |
XKU414,424 |
1 | ||
| 53097-37280 |
XKU414,424 |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-37040 |
XKU414,424 NO.2 |
1 | ||
| 53955-37020 |
XKU414,424 NO.1 |
4 | ||
| 53955-37020 |
XKU414,424 NO.1 |
4 | ||
| 53955-37040 |
XKU414,424 NO.2 |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-37040 |
XKU414,424 NO.2 |
1 | ||
| 53955-37020 |
XKU414,424 NO.1 |
4 | ||
| 53955-37020 |
XKU414,424 NO.1 |
4 | ||
| 53955-37040 |
XKU414,424 NO.2 |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-37040 |
XKU414,424 NO.2 |
1 | ||
| 53955-37020 |
XKU414,424 NO.1 |
4 | ||
| 53955-37020 |
XKU414,424 NO.1 |
4 | ||
| 53955-37040 |
XKU414,424 NO.2 |
1 | ||
| 53994 - RETAINER, AIR CLEANER INLET PIPE | ||||
| 53994-37020 |
XKU414,424 |
2 | ||
| 53994-37020 |
XKU414,424 |
2 | ||
| 53996A - PACKING, AIR CLEANER INLET PIPE | ||||
| 53996-37040 |
XKU414,424 |
1 | ||
| 53996-37040 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90031-05124 | ||||
| 90031-05129 | ||||
| 90031-05139 | ||||
| 90034-60042 | ||||
| 90034-60046 | ||||
| 90034-60048 | ||||
| 90034-60049 | ||||
| 90034-61064 | ||||
| 90034-61065 | ||||
| 90034-67026 | ||||
| 90099-00289 | ||||
| 90179-08200 | ||||
| 90179-08204 | ||||
| 90179-08227 | ||||
| 90460-99007 | ||||
| 90467-12056 | ||||
| 91511-60612 | ||||
| 91511-B0816 | ||||
| 91511-J0840 | ||||
| 91551-80814 | ||||
| 91551-A0840 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
