XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310-0610)

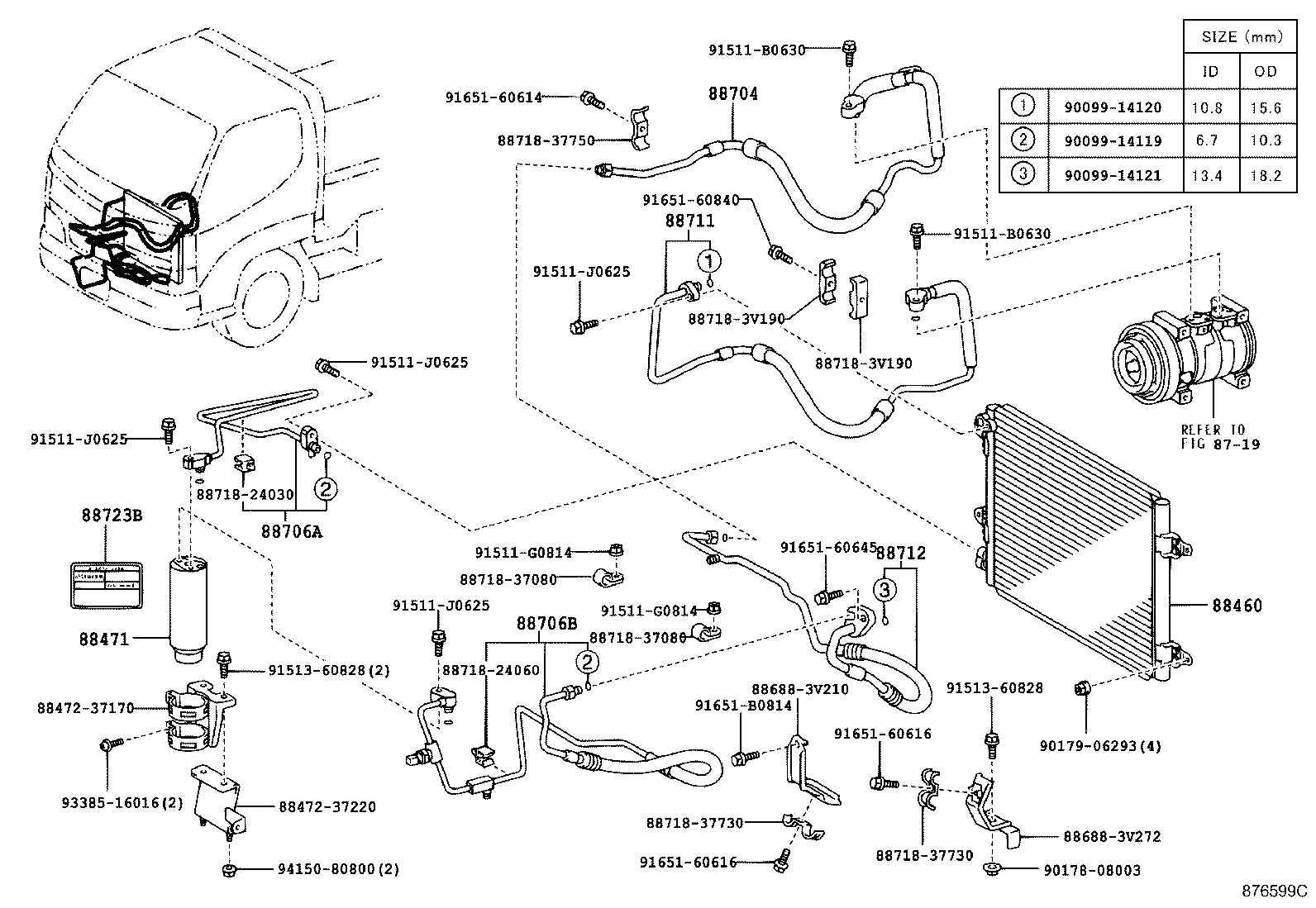

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37610 |
XKU414,424 |
1 | ||
| 88460-37611 |
XKU414,424 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
XKU414,424 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-37040 |
XKU414,424 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-37181 |
XKU414,424 |
1 | ||
| 88706-37180 |
XKU414,424 |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88708-37010 |
XKU414,424 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37870 |
XKU414,424 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3V450 |
XKU414,424 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-22040 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 88472-37170 | ||||
| 88472-37220 | ||||
| 88688-3V210 | ||||
| 88688-3V272 | ||||
| 88718-24030 | ||||
| 88718-24060 | ||||
| 88718-37080 | ||||
| 88718-37730 | ||||
| 88718-37750 | ||||
| 88718-3V190 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90178-08003 | ||||
| 90179-06293 | ||||
| 91511-B0630 | ||||
| 91511-G0814 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 91651-60840 | ||||
| 91651-B0814 | ||||
| 93385-16016 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8719 | ||||
