XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

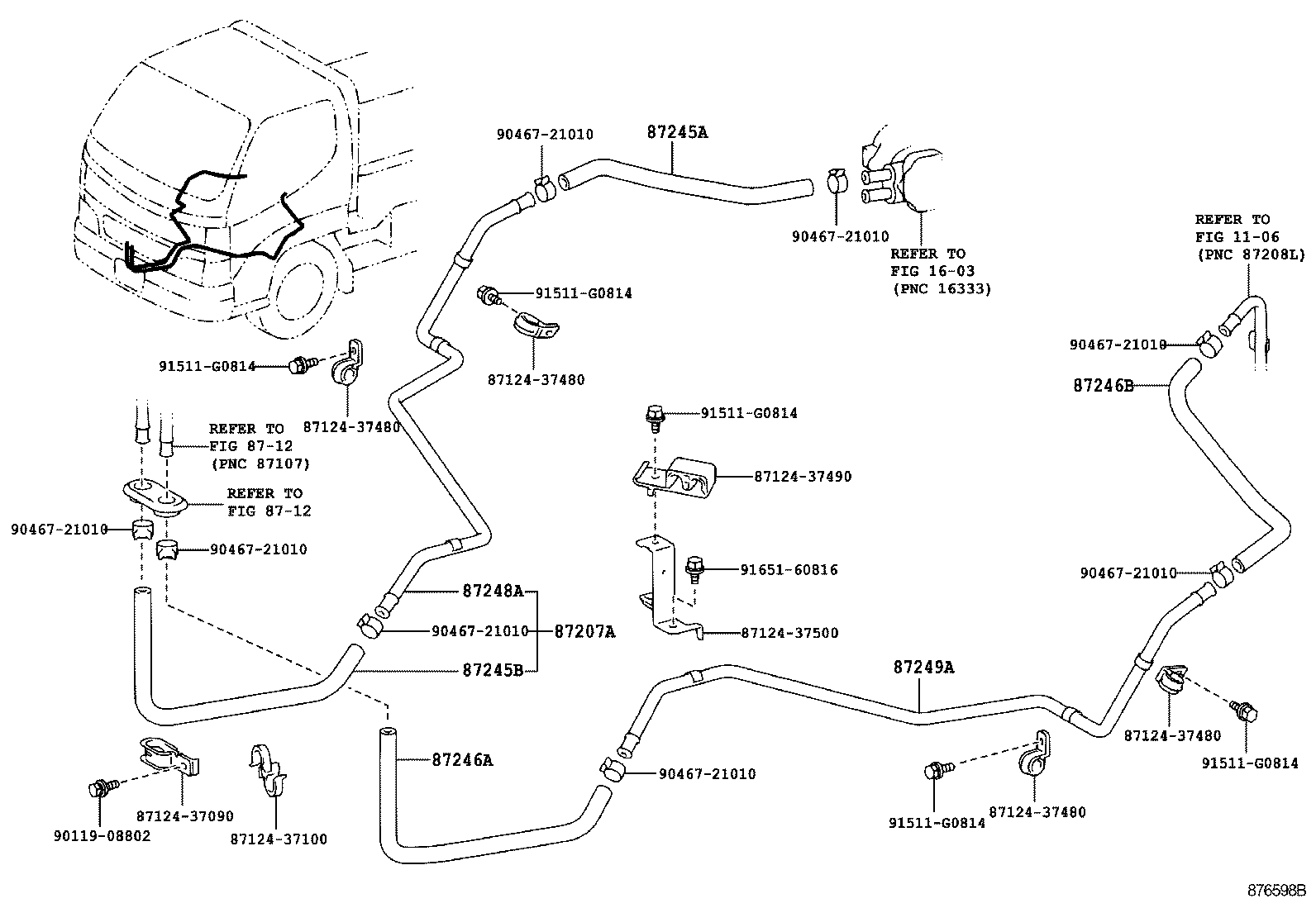

Click highlighted areas on diagram

diagram 1106 1603 8712 8712 8712437090 8712437100 8712437480 8712437480 8712437480 8712437480 8712437490 8712437500 87207A 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 9165160816
Part # Description Qty Price
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-37A20

XKU414,424

 1
87245A - HOSE, HEATER WATER, INLET A
87245-37A10

XKU414,424

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37A20

XKU414,424

 1
87246A - HOSE, HEATER WATER, OUTLET A
87246-37480

XKU414,424

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37470

XKU414,424

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37540

XKU414,424

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37550

XKU414,424

 1
Common parts
87124-37090
87124-37100
87124-37480
87124-37490
87124-37500
90119-08802
90467-21010
91511-G0814
91651-60816
Linked diagrams
1106
1603
8712
