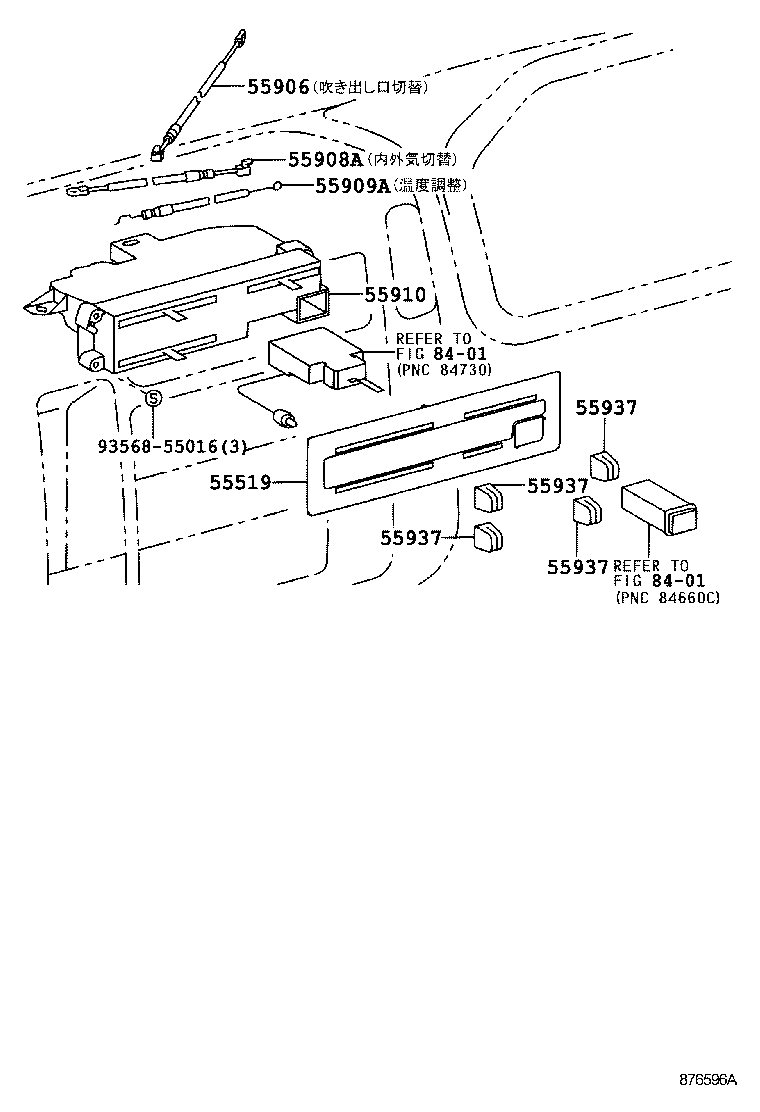

Toyota Dyna/toyoace hv XKU414 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-37070	XKU414,424	10/2003 - 10/2006	1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-37060	XKU414,424	10/2003 - 10/2006	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37040	XKU414,424	10/2003 - 10/2006	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-37050	XKU414,424	10/2003 - 10/2006	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-37061	XKU414,424	10/2003 - 10/2006	1
55937 - KNOB, HEATER CONTROL LEVER
55905-89115	XKU414,424	10/2003 - 10/2006	4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115	XKU414,424	10/2003 - 10/2006	4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115	XKU414,424	10/2003 - 10/2006	4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115	XKU414,424	10/2003 - 10/2006	4
Common parts
93568-55016
Linked diagrams
8401

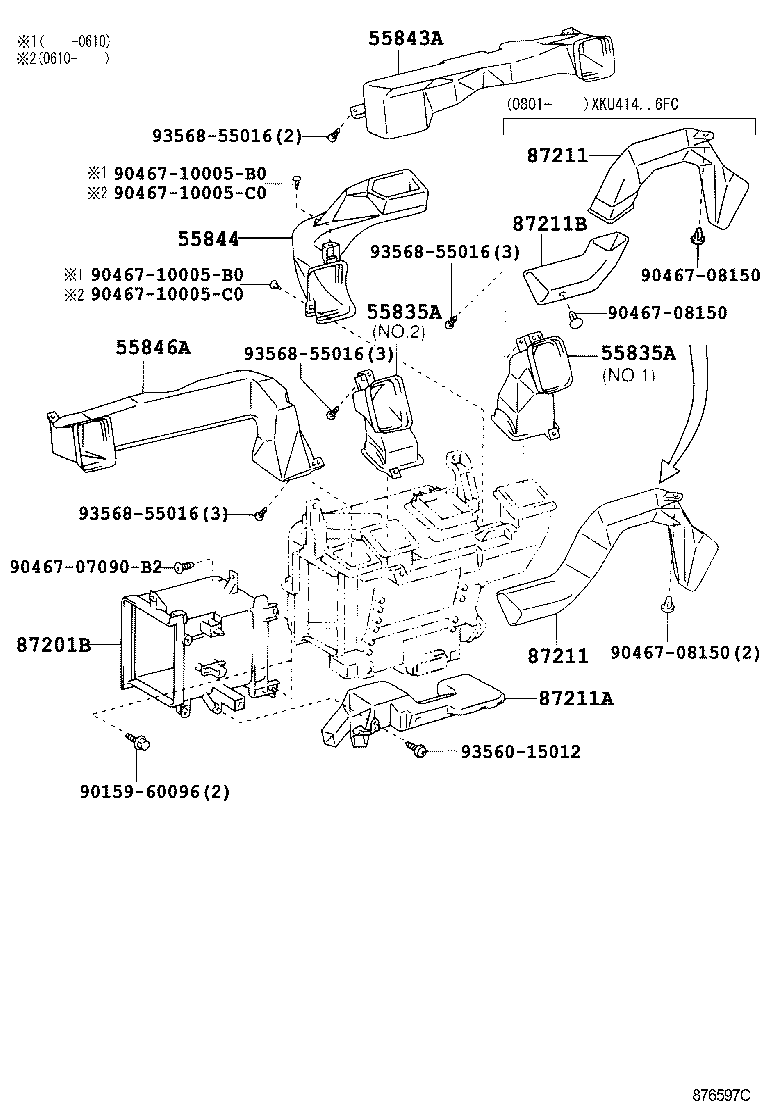

Part #	Description	Period	Qty
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37090	XKU414,424 NO.2	10/2003 - 10/2006	1
55835-37010	XKU414,424 NO.1	10/2003 - 10/2006	1
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37090	XKU414,424 NO.2	10/2003 - 10/2006	1
55835-37010	XKU414,424 NO.1	10/2003 - 10/2006	1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-37110	XKU414,424	10/2003 - 10/2006	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-37031	XKU414,424	10/2003 - 10/2006	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-37080	XKU414,424	10/2003 - 10/2006	1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-37031	XKU414,424	11/2004 - 10/2006	1
87201-37030	XKU414,424	10/2003 - 10/2004	1
87211 - DUCT, AIR, NO.1
87212-37010	XKU414,424	10/2003 - 10/2006	1
87211 - DUCT, AIR, NO.1
87212-37010	XKU414,424	10/2003 - 10/2006	1
87211A - DUCT, AIR, NO.2
87213-37020	XKU414,424	10/2003 - 10/2006	1
Common parts
90159-60096
90467-07090B2
90467-08150
90467-10005B0
90467-10005C0
93560-15012
93568-55016

XKU414-TQFMW3 (2003)
