XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

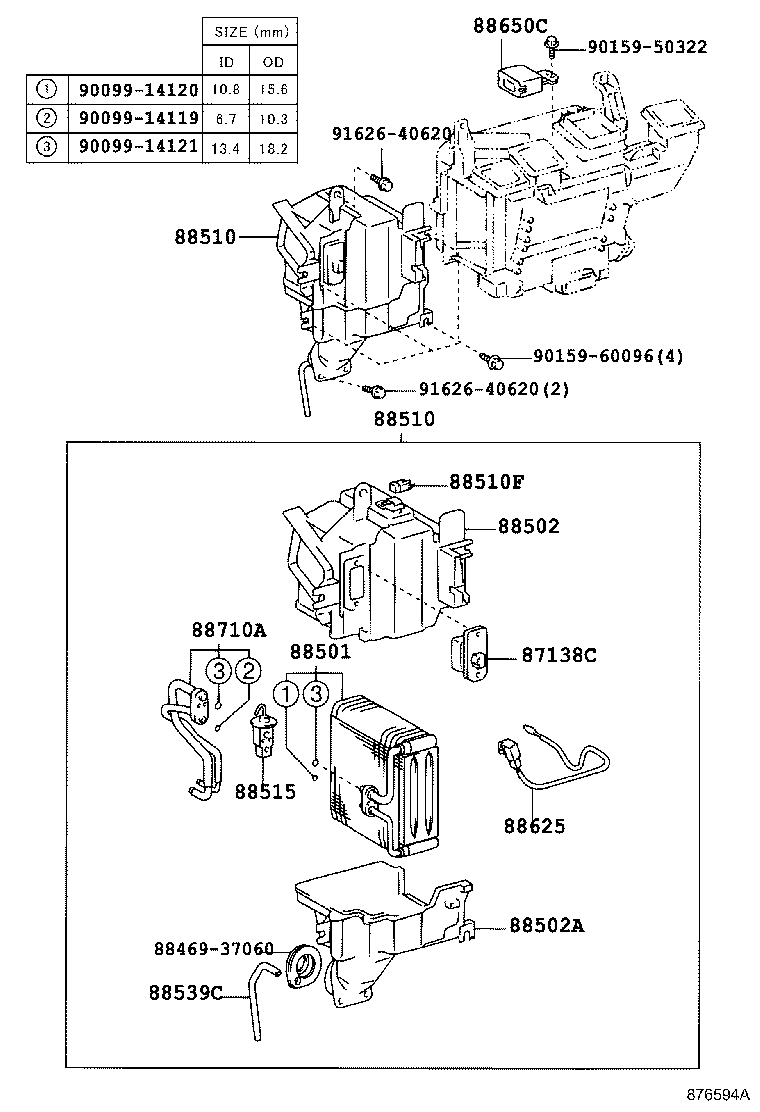

Click highlighted areas on diagram

diagram 87138C 8846937060 88501 88502 88502A 88510 88510 88510F 88515 88539C 88625 88650C 88710A 9009914119 9009914120 9009914121 9015950322 9015960096 9162640620 9162640620
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37090

XKU414,424

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

XKU414,424

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37050

XKU414,424

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

XKU414,424

 1
88510 - UNIT ASSY, COOLER
88510-37120

XKU414,424

 1
88510 - UNIT ASSY, COOLER
88510-37120

XKU414,424

 1
88510F - HOLDER, FUSE
82630-95J03

XKU414,424

 1
88515 - VALVE, COOLER EXPANSION
88515-28160

XKU414,424

 1
88515-48040

XKU414,424

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-37060

XKU414,424

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

XKU414,424

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37120

XKU414,424

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

XKU414,424

 1
Common parts
88469-37060
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91626-40620
