XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

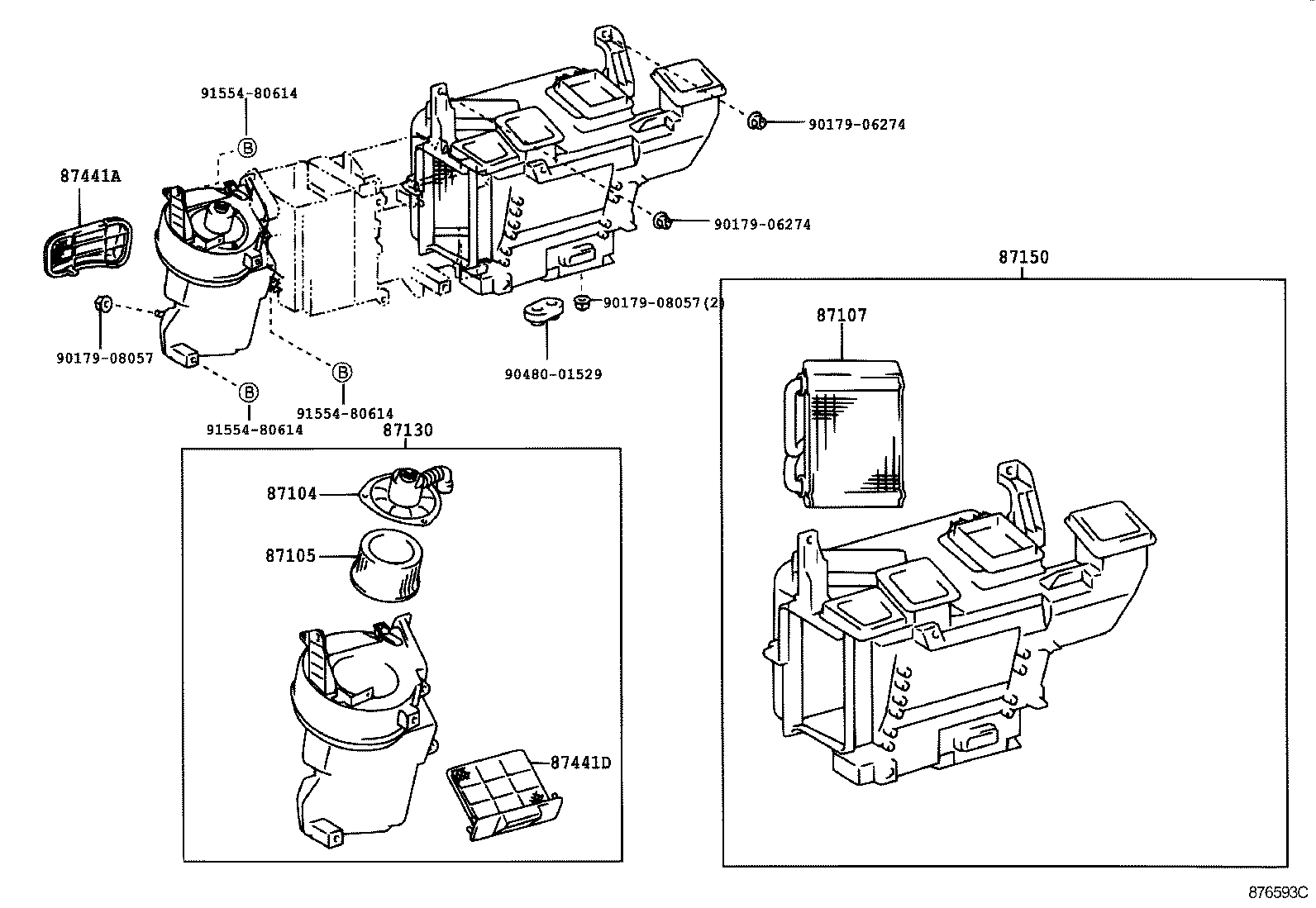

Click highlighted areas on diagram

diagram 87104 87105 87107 87130 87150 87441A 87441D 9017906274 9017906274 9017908057 9017908057 9048001529 9155480614 9155480614 9155480614
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37140

XKU414,424

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030

XKU414,424

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-37040

XKU414,424

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37100

XKU414,424

 1
87150 - RADIATOR ASSY, HEATER
87150-37230

XKU414,424

 1
87441A - FILTER, HEATER AIR
87441-37010

XKU414,424

 1
87441D - FILTER, HEATER AIR, NO.2
87441-37031

XKU414,424

 1
Common parts
90179-06274
90179-08057
90480-01529
91554-80614
