XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

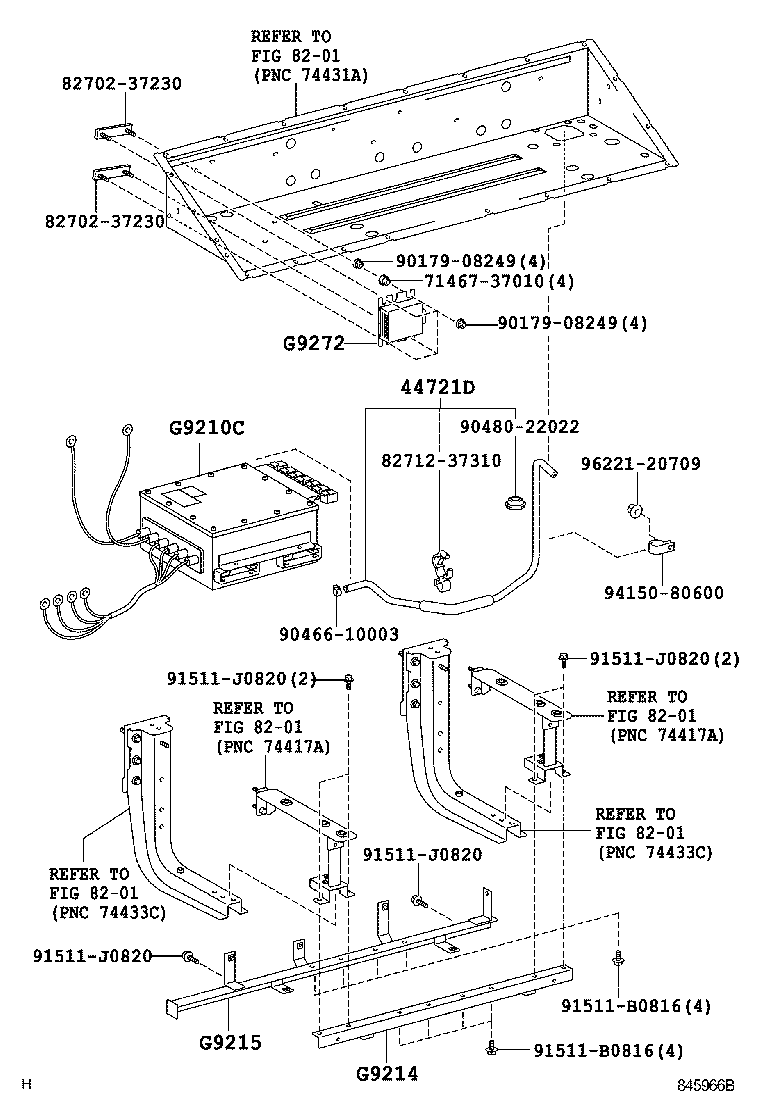

Click highlighted areas on diagram

diagram 44721D 7146737010 8201 8201 8201 8201 8201 8270237230 8270237230 8271237310 9017908249 9017908249 9046610003 9048022022 91511B0816 91511B0816 91511J0820 91511J0820 91511J0820 91511J0820 9415080600 9622120709 G9210C G9214 G9215 G9272
Part # Description Qty Price
44721D - TUBE, AIR CONTROL, NO.1
44721-37020

XKU414,424

 1
G9210C - INVERTER ASSY, MOTOR & GENERATOR CONTROL
G9210-89104

XKU414,424

 1
G9210-89101

XKU414,424

 1
G9210-89105

XKU414,424

 1
G9210-89107

XKU414,424

 1
G9210-89106

XKU414,424

 1
G9210-89102

XKU414,424

 1
G9210-89103

XKU414,424

 1
G9210-89109

XKU414,424

 1
G9214 - BRACKET, INVERTER, NO.1
G9214-89101

XKU414,424

 1
G9215 - BRACKET, INVERTER, NO.2
G9215-89102

XKU414,424

 1
G9272 - CONVERTER, HV
G9272-89101

XKU414,424

 1
Common parts
71467-37010
82702-37230
82712-37310
90179-08249
90466-10003
90480-22022
91511-B0816
91511-J0820
94150-80600
96221-20709
Linked diagrams
8201
