XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310- )

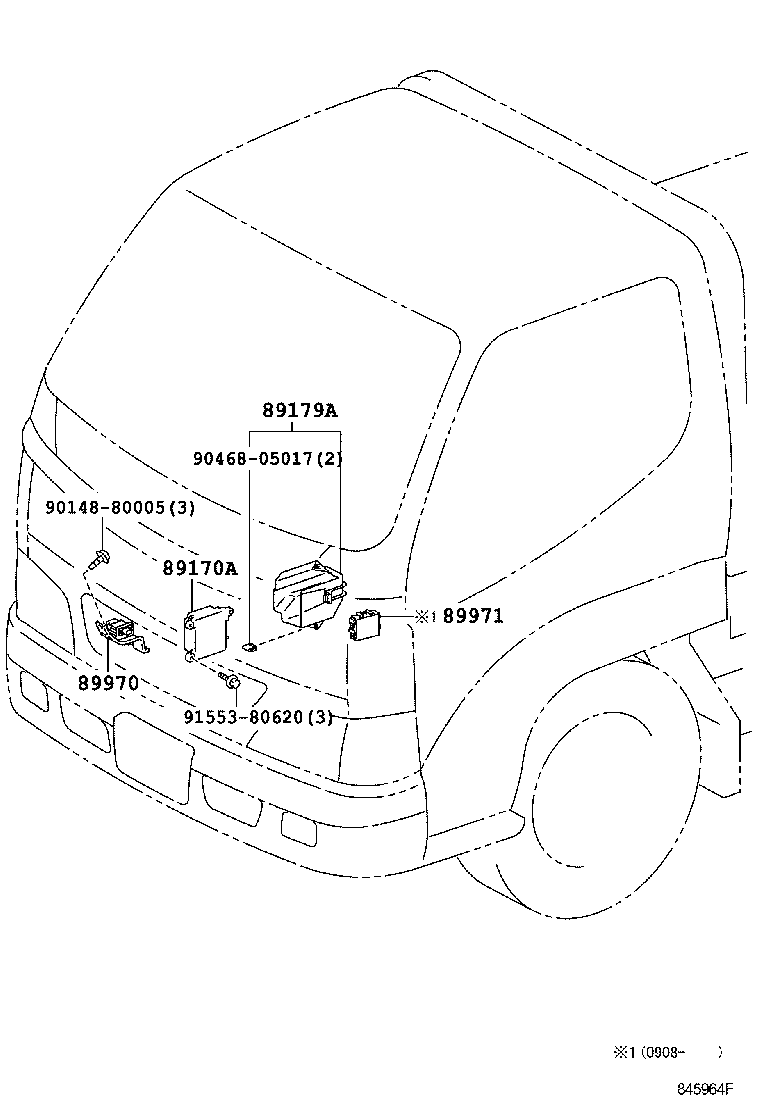

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170A - COMPUTER ASSY, AIR BAG | ||||
| 89170-37060 |
XKU414,424 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 89170-37050 |
XKU414,424 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 89179A - COVER, AIR BAG SENSOR | ||||
| 89179-37030 |
XKU414,424 |
1 | ||
| 89970 - SENSOR ASSY, AIR BAG, NO.2 | ||||
| 89970-37010 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90148-80005 | ||||
| 90468-05017 | ||||
| 91553-80620 | ||||
