XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

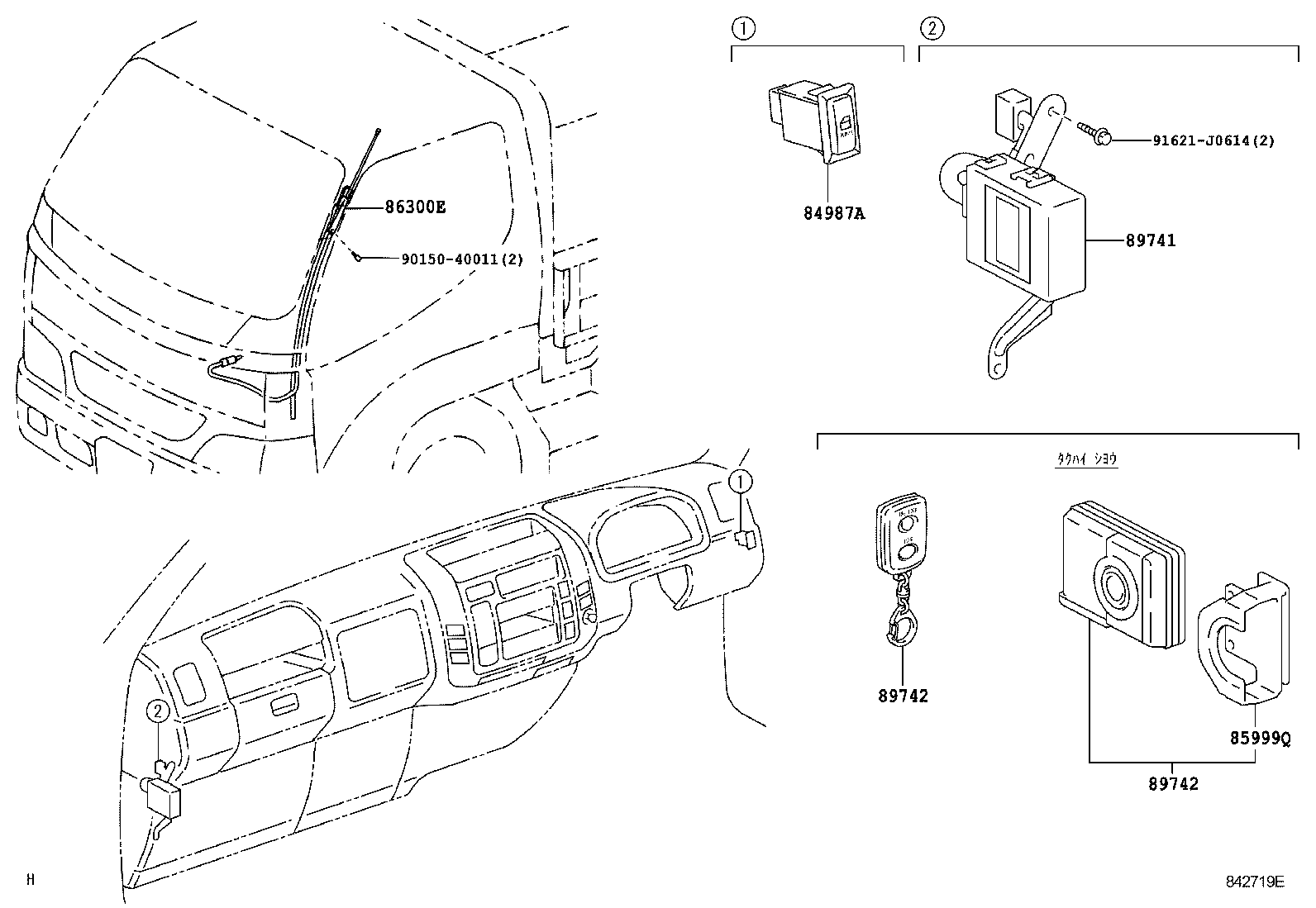

Click highlighted areas on diagram

TYPE A

diagram 84987A 85999Q 86300E 89741 89742 89742 9015040011 91621J0614
Part # Description Qty Price
84987A - SWITCH, KEYLESS ENTRY CANCEL
84987-37010

XKU414,424

 1
85999Q - BRACKET, DOOR CONTROL TRANSMITTER
85999-36040

XKU414,424

 1
86300E - ANTENNA ASSY, WIRELESS DOOR LOCK
86300-37070

XKU414,424

TYPE A:ｲﾗｽﾄ参照

 1
89741 - RECEIVER, DOOR CONTROL
89741-37050

XKU414,424

ﾀｸﾊｲ ｼﾖｳ

 1
89741-37040

XKU414,424

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-37010

XKU414,424

ﾀｸﾊｲ ｼﾖｳ

 1
89742-37040

XKU414,424

 1
89742-37020

XKU414,424

DUTRO

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-37010

XKU414,424

ﾀｸﾊｲ ｼﾖｳ

 1
89742-37040

XKU414,424

 1
89742-37020

XKU414,424

DUTRO

 1
Common parts
90150-40011
91621-J0614
