XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

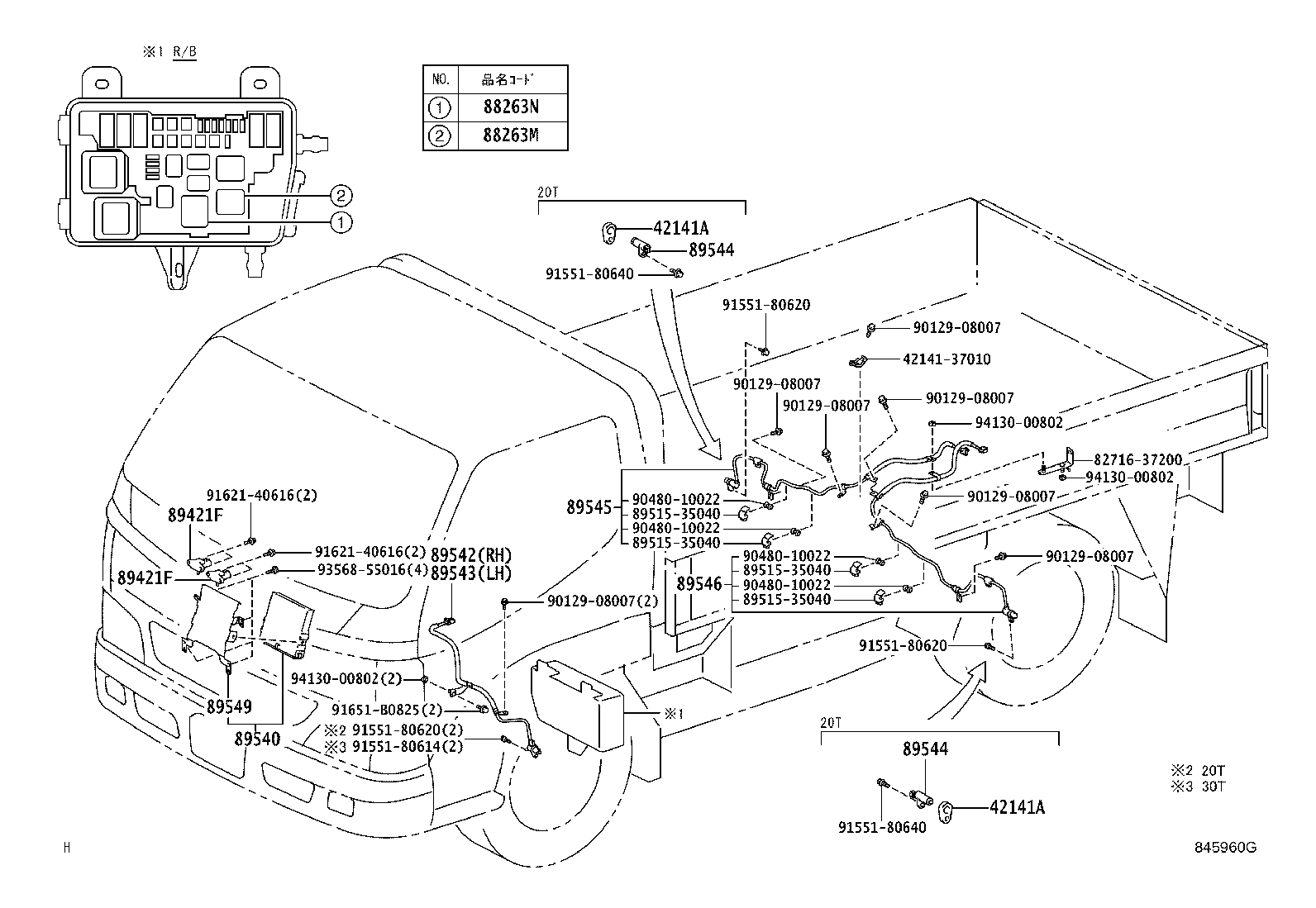

Click highlighted areas on diagram

diagram 4214137010 42141A 42141A 8271637200 88263M 88263N 89421F 89421F 8951535040 8951535040 8951535040 8951535040 89540 89542 89543 89544 89544 89545 89546 89549 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 9048010022 9048010022 9048010022 9048010022 9155180614 9155180620 9155180620 9155180620 9155180640 9155180640 9162140616 9162140616 91651B0825 9356855016 9413000802 9413000802 9413000802
Part # Description Qty Price
88263M - RELAY, ABS SOLENOID
88263-36050

XKU414,424

 1
88263N - RELAY, ABS MOTOR
88263-36040

XKU414,424

 1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XKU414,424

 2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XKU414,424

 2
89540 - COMPUTER ASSY, SKID CONTROL
89540-37230

XKU414,424

 1
89542 - SENSOR, SPEED, FRONT RH
89542-37140

XKU414..20T

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37140

XKU414..20T

 1
89543-37190

XKU414..20T

 1
89544 - SENSOR, SKID CONTROL
89544-36030

XKU414..20T

 2
89544 - SENSOR, SKID CONTROL
89544-36030

XKU414..20T

 2
89549 - BRACKET, SKID CONTROL COMPUTER
89549-37040

XKU414,424

 1
Common parts
42141-37010
82716-37200
89515-35040
90129-08007
90480-10022
91551-80614
91551-80620
91551-80640
91621-40616
91651-B0825
93568-55016
94130-00802
