XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310-0610)

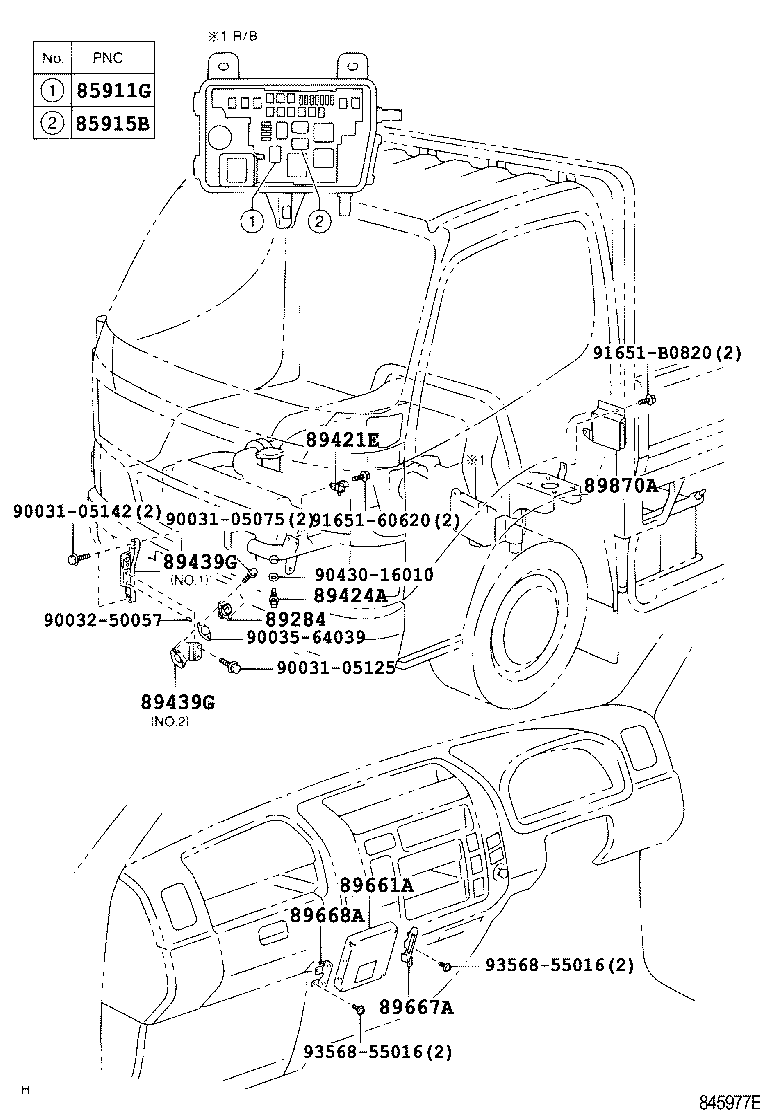

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85911G - RELAY, INJECTOR DRIVER | ||||
| 90987-02017 |
XKU414,424 |
1 | ||
| 85915B - RELAY, MAIN (FOR DIESEL TURBO) | ||||
| 90987-02017 |
XKU414,424 |
1 | ||
| 89284 - SENSOR, DIESEL ENGINE REVOLUTION | ||||
| 89284-37010 |
XKU414,424 |
1 | ||
| 89421E - SENSOR, VACUUM | ||||
| 89420-37030 |
XKU414,424 |
1 | ||
| 89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO) | ||||
| 89424-60010 |
XKU414,424 |
1 | ||
| 89439G - BRACKET, SENSOR | ||||
| 89439-37021 |
XKU414,424 NO.1 |
1 | ||
| 89439-37031 |
XKU414,424 NO.2 |
1 | ||
| 89439G - BRACKET, SENSOR | ||||
| 89439-37021 |
XKU414,424 NO.1 |
1 | ||
| 89439-37031 |
XKU414,424 NO.2 |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-37360 |
XKU414,424 DENSO |
1 | ||
| 89661-37362 |
XKU414,424 DENSO |
1 | ||
| 89661-37363 |
XKU414,424 DENSO |
1 | ||
| 89661-37364 |
XKU414,424 DENSO |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-37070 |
XKU414,424 |
1 | ||
| 89667-37070 |
XKU414,424 |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-37070 |
XKU414,424 |
1 | ||
| 89668-37070 |
XKU414,424 |
1 | ||
| 89870A - DRIVER ASSY, INJECTOR | ||||
| 89870-37030 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90031-05075 | ||||
| 90031-05125 | ||||
| 90031-05142 | ||||
| 90032-50057 | ||||
| 90035-64039 | ||||
| 90430-16010 | ||||
| 91651-60620 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
