Toyota Dyna/toyoace hv XKU414 METER

XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

ﾀｺｸﾞﾗﾌ

Part #	Description	Period	Qty
83205 - BRACKET, SUB-ASSY, TACHOGRAPH
86211-37070	XKU414,424 右側	10/2003 - 10/2006	1
86212-37050	XKU414,424 左側	10/2003 - 06/2006	1
86212-37051	XKU414,424 左側	07/2006 - 10/2006	1
83205 - BRACKET, SUB-ASSY, TACHOGRAPH
86211-37070	XKU414,424 右側	10/2003 - 10/2006	1
86212-37050	XKU414,424 左側	10/2003 - 06/2006	1
86212-37051	XKU414,424 左側	07/2006 - 10/2006	1
83210 - TACHOGRAPH ASSY
83210-37120	XKU414,424 ｱﾘ(ﾀｺｸﾞﾗﾌ 120KM/H 1 ｳｲ-ｸ)	10/2003 - 10/2006	1
83210-37220	XKU414,424 ｱﾘ(ﾀｺｸﾞﾗﾌ 140KM/H 1 ﾃﾞｲ)	10/2003 - 10/2006	1
83210-37130	XKU414,424 ｱﾘ(ﾀｺｸﾞﾗﾌ 120KM/H 1 ﾃﾞｲ)	10/2003 - 10/2006	1
83210-37210	XKU414,424 ｱﾘ(ﾀｺｸﾞﾗﾌ 140KM/H 1 ｳｲ-ｸ)	10/2003 - 10/2006	1
Common parts
90159-50343
91554-80614

Click highlighted areas on diagram

ﾒ-ﾀ

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-37A10	XKU414,424 YAZAKI	10/2003 - 11/2004	1
83800-37A11	XKU414,424 YAZAKI	11/2004 - 05/2005	1
83800-37C10	XKU414,424 YAZAKI	05/2005 - 10/2006	1
83134 - COVER, COMBINATION METER, NO.1
83821-37610	XKU414,424	10/2003 - 10/2006	1
83138G - GLASS, COMBINATION METER
83852-37250	XKU414,424	10/2003 - 10/2006	1
Common parts
93568-55016

Click highlighted areas on diagram

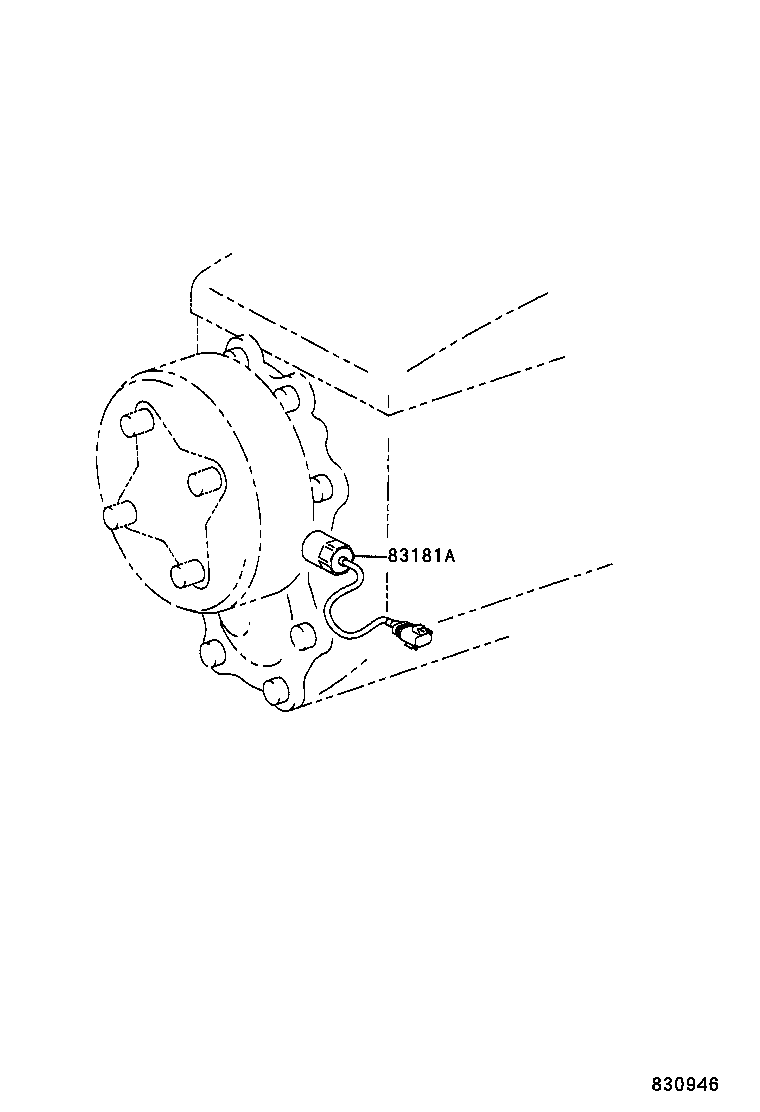

ｽﾋﾟ-ﾄﾞｾﾝｻ

Part #	Description	Period	Qty	Price
83181A - SENSOR, SPEEDOMETER
83181-37050	XKU414,424	10/2003 - 10/2006	1

Part #

Description

Qty

Price

83181A - SENSOR, SPEEDOMETER

83181-37050

XKU414,424
