Toyota Dyna/toyoace hv XKU414 WIRING & CLAMP

XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

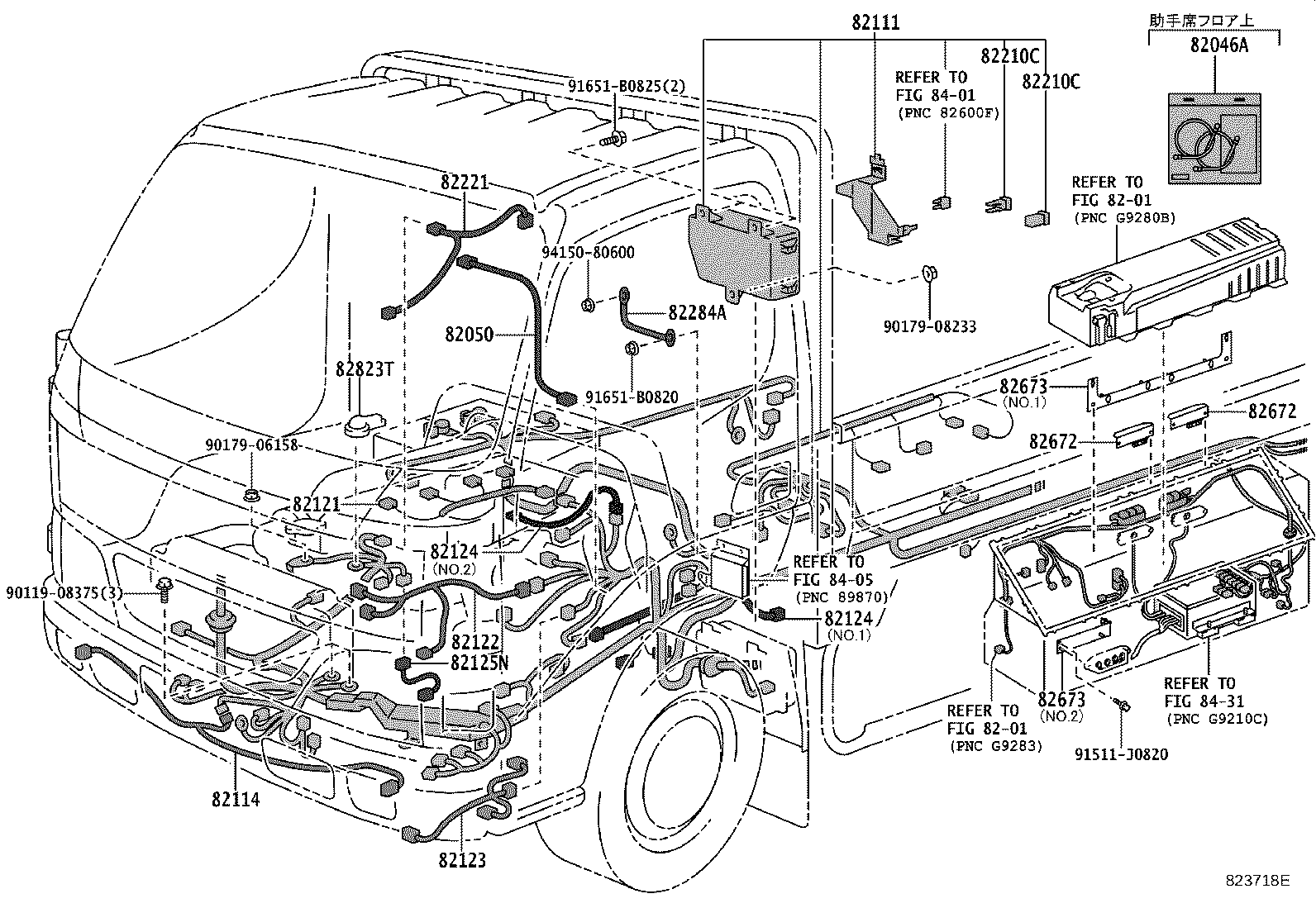

ILLUST NO. 1 OF 6(0310-0610)

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82050 - WIRE ASSY, ENGINE
82050-37010	XKU414,424	10/2003 - 10/2006	1
82111 - WIRE, ENGINE ROOM MAIN
82111-37T10	XKU414,424 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37T10	10/2003 - 06/2004	1
82111-37T11	XKU414,424 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37T11	06/2004 - 10/2006	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37030	XKU414,424	10/2003 - 05/2005	1
82114-37100	XKU414,424	05/2005 - 10/2006	1
82121 - WIRE, ENGINE
82121-37B30	XKU414,424	10/2003 - 10/2006	1
82122 - WIRE, ENGINE, NO.2
82121-37B40	XKU414,424	10/2003 - 10/2006	1
82123 - WIRE, ENGINE, NO.3
82121-37B61	XKU414,424	10/2003 - 09/2006	1
82124 - WIRE, ENGINE, NO.4
82121-37B71	XKU414,424 NO.1	10/2003 - 10/2006	1
82124-37270	XKU414,424 NO.2	10/2003 - 10/2006	1
82124 - WIRE, ENGINE, NO.4
82121-37B71	XKU414,424 NO.1	10/2003 - 10/2006	1
82124-37270	XKU414,424 NO.2	10/2003 - 10/2006	1
82125N - WIRE, ENGINE, NO.5
82121-37B81	XKU414,424	10/2003 - 09/2006	1
82210C - FUSIBLE LINK
90982-08203	XKU414,424 80A,ｵｽ端子,黒	10/2003 - 10/2006	1
90982-08280	XKU414,424 30A,ﾒｽ端子,桃	10/2003 - 10/2006	1
90982-08202	XKU414,424 60A,ｵｽ端子,黄	10/2003 - 10/2006	1
90982-08281	XKU414,424 40A,ﾒｽ端子,緑	10/2003 - 10/2006	1
90982-08246	XKU414,424 100A,ｵｽ端子,青	10/2003 - 10/2006	1
90982-08282	XKU414,424 50A,ﾒｽ端子,赤	10/2003 - 10/2006	1
82210C - FUSIBLE LINK
90982-08203	XKU414,424 80A,ｵｽ端子,黒	10/2003 - 10/2006	1
90982-08280	XKU414,424 30A,ﾒｽ端子,桃	10/2003 - 10/2006	1
90982-08202	XKU414,424 60A,ｵｽ端子,黄	10/2003 - 10/2006	1
90982-08281	XKU414,424 40A,ﾒｽ端子,緑	10/2003 - 10/2006	1
90982-08246	XKU414,424 100A,ｵｽ端子,青	10/2003 - 10/2006	1
90982-08282	XKU414,424 50A,ﾒｽ端子,赤	10/2003 - 10/2006	1
82221 - WIRE, OIL PRESSURE SWITCH
82221-37030	XKU414,424	10/2003 - 10/2006	1
82284A - WIRE, EARTH NO.2
82284-37150	XKU414,424	04/2004 - 10/2006	1
82672 - COVER, JUNKTION BLOCK
82672-37041	XKU414,424	10/2003 - 10/2006	2
82672 - COVER, JUNKTION BLOCK
82672-37041	XKU414,424	10/2003 - 10/2006	2
82673 - BRACKET, JUNCTION BLOCK
82673-37080	XKU414,424 NO.1	10/2003 - 10/2006	1
82673-37110	XKU414,424 NO.2	07/2004 - 10/2006	1
82673-37100	XKU414,424 NO.2	10/2003 - 07/2004	1
82673 - BRACKET, JUNCTION BLOCK
82673-37080	XKU414,424 NO.1	10/2003 - 10/2006	1
82673-37110	XKU414,424 NO.2	07/2004 - 10/2006	1
82673-37100	XKU414,424 NO.2	10/2003 - 07/2004	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	XKU414,424	10/2003 - 10/2006	1
Common parts
90119-08375
90179-06158
90179-08233
91511-J0820
91651-B0820
91651-B0825
94150-80600
Linked diagrams
8201
8401
8405
8431

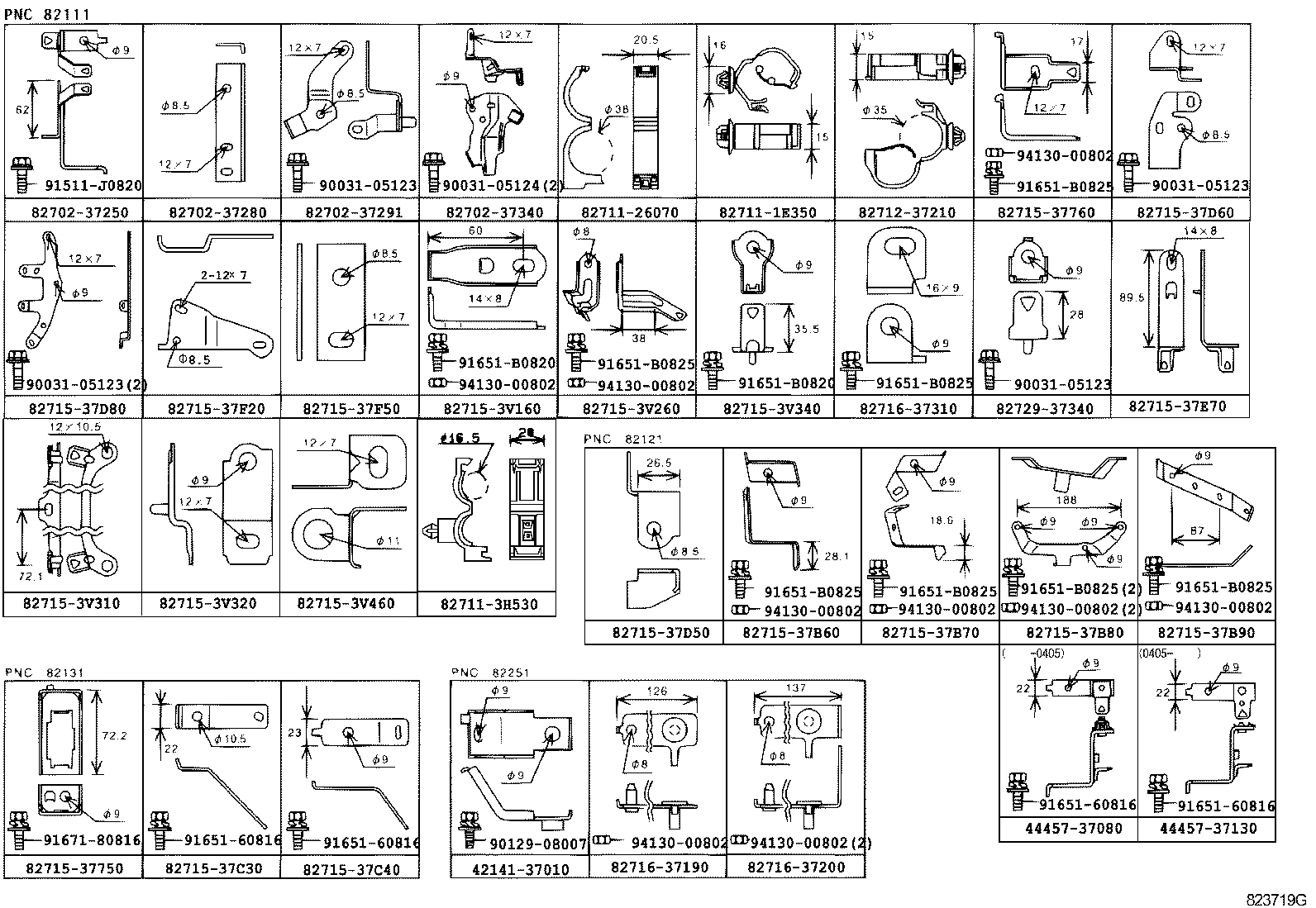

ILLUST NO. 5 OF 6(0310-0610)

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
42141-37010
44457-37080
44457-37130
82702-37250
82702-37280
82702-37291
82702-37340
82711-1E350
82711-26070
82711-3H530
82712-37210
82715-37750
82715-37760
82715-37B60
82715-37B70
82715-37B80
82715-37B90
82715-37C30
82715-37C40
82715-37D50
82715-37D60
82715-37D80
82715-37E70
82715-37F20
82715-37F50
82715-3V160
82715-3V260
82715-3V310
82715-3V320
82715-3V340
82715-3V460
82716-37190
82716-37200
82716-37310
82729-37340
90031-05123
90031-05124
90129-08007
91511-J0820
91651-60816
91651-B0820
91651-B0825
91671-80816
94130-00802

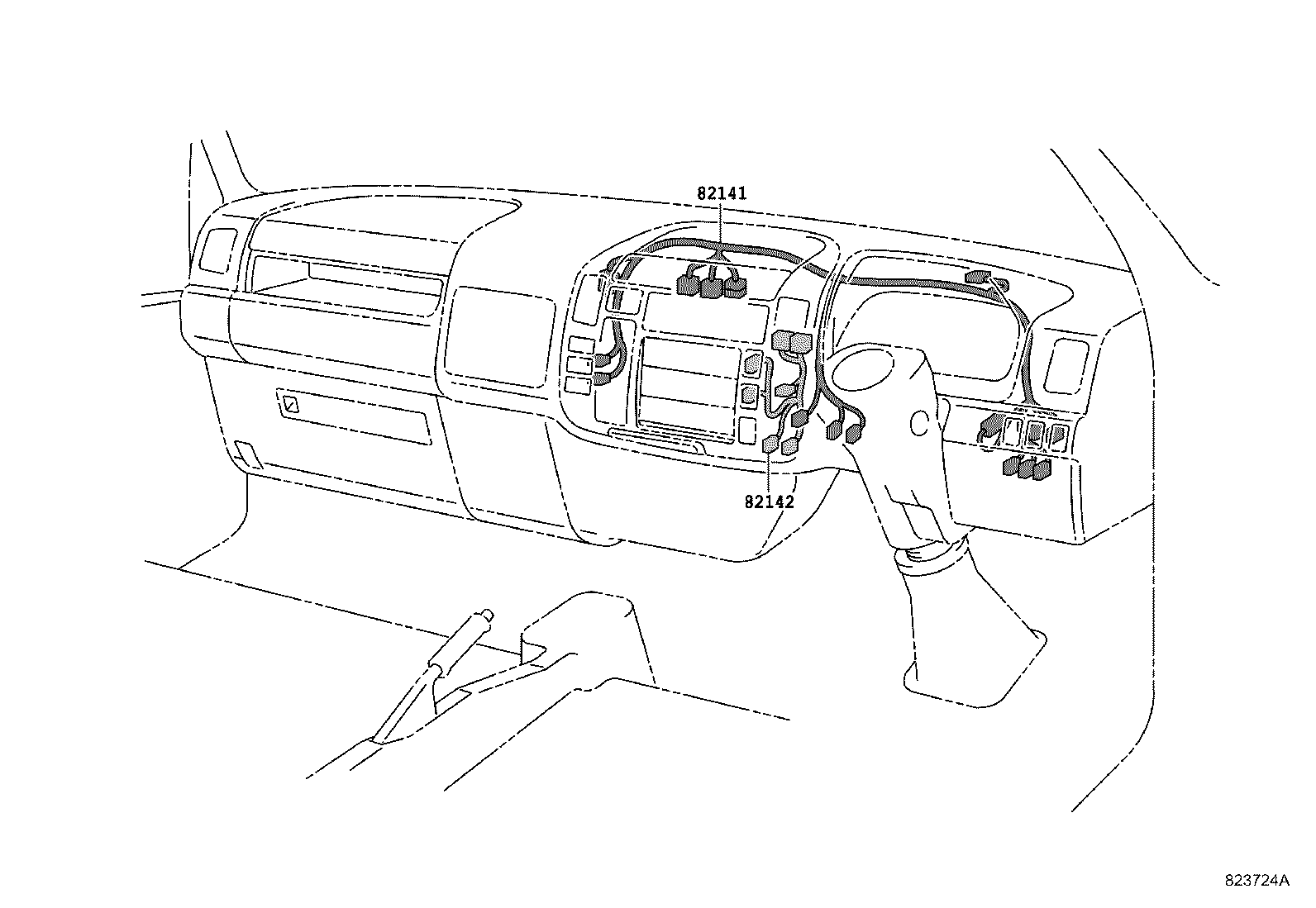

ILLUST NO. 3 OF 6(0310-0610)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-37A00	XKU414,424 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-37A00	10/2003 - 05/2005	1
82141-37B80	XKU414,424 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-37B80	05/2005 - 10/2006	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-37430	XKU414,424	10/2003 - 10/2006	1

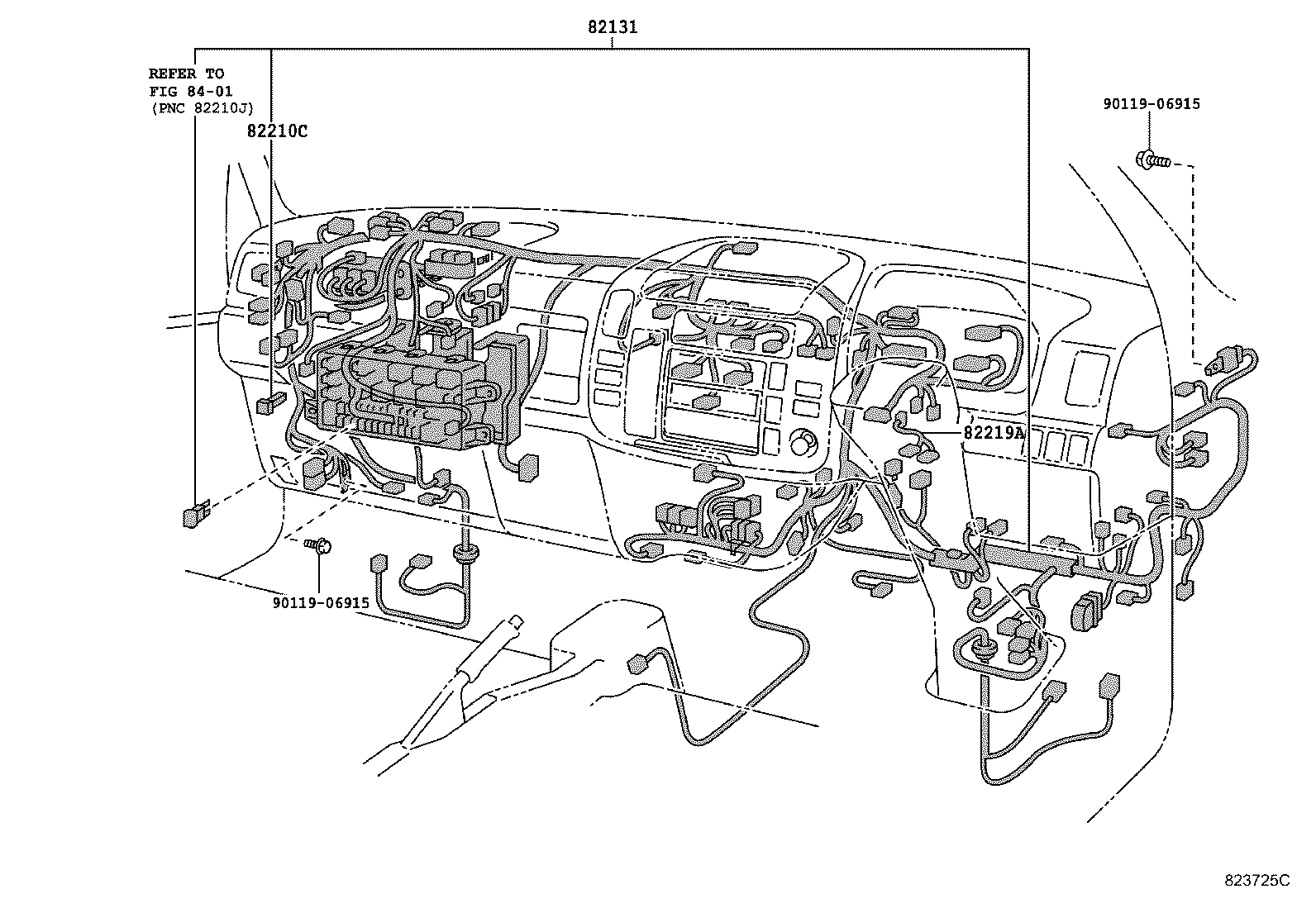

ILLUST NO. 2 OF 6(0310-0610)

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-37Y00	XKU414,424 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37Y00	05/2005 - 10/2006	1
82131-37E90	XKU414,424 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37E90	10/2003 - 05/2005	1
82210C - FUSIBLE LINK
90982-08203	XKU414,424 80A,ｵｽ端子,黒	10/2003 - 10/2006	1
90982-08280	XKU414,424 30A,ﾒｽ端子,桃	10/2003 - 10/2006	1
90982-08202	XKU414,424 60A,ｵｽ端子,黄	10/2003 - 10/2006	1
90982-08281	XKU414,424 40A,ﾒｽ端子,緑	10/2003 - 10/2006	1
90982-08246	XKU414,424 100A,ｵｽ端子,青	10/2003 - 10/2006	1
90982-08282	XKU414,424 50A,ﾒｽ端子,赤	10/2003 - 10/2006	1
82219A - WIRE, SENSOR
82219-37010	XKU414,424	10/2003 - 10/2006	1
Common parts
90119-06915
Linked diagrams
8401

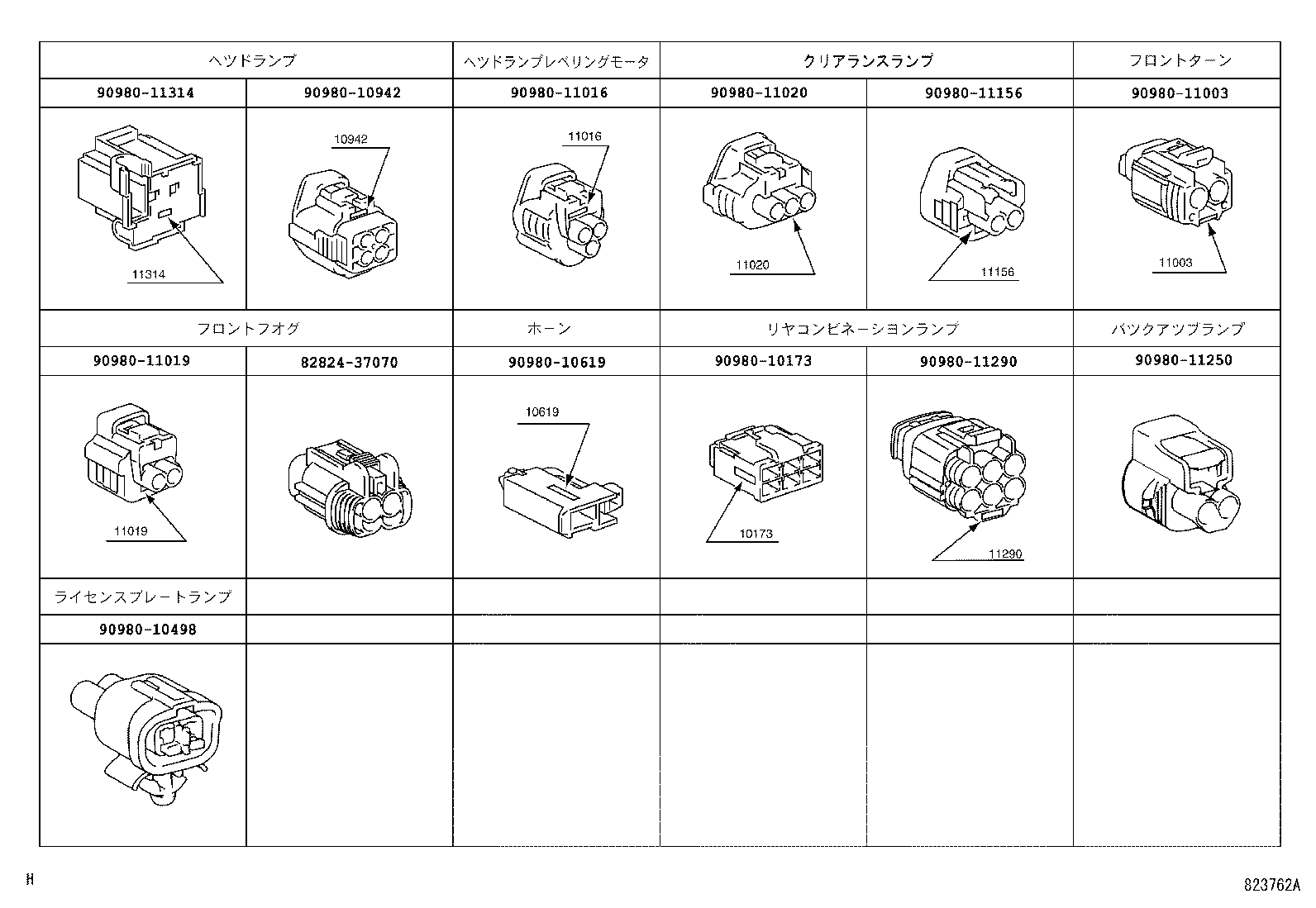

ILLUST NO. 6 OF 6(0310- )6F..DCRL,DCRTJ

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
82824-37070
90980-10173
90980-10498
90980-10619
90980-10942
90980-11003
90980-11016
90980-11019
90980-11020
90980-11156
90980-11250
90980-11290
90980-11314

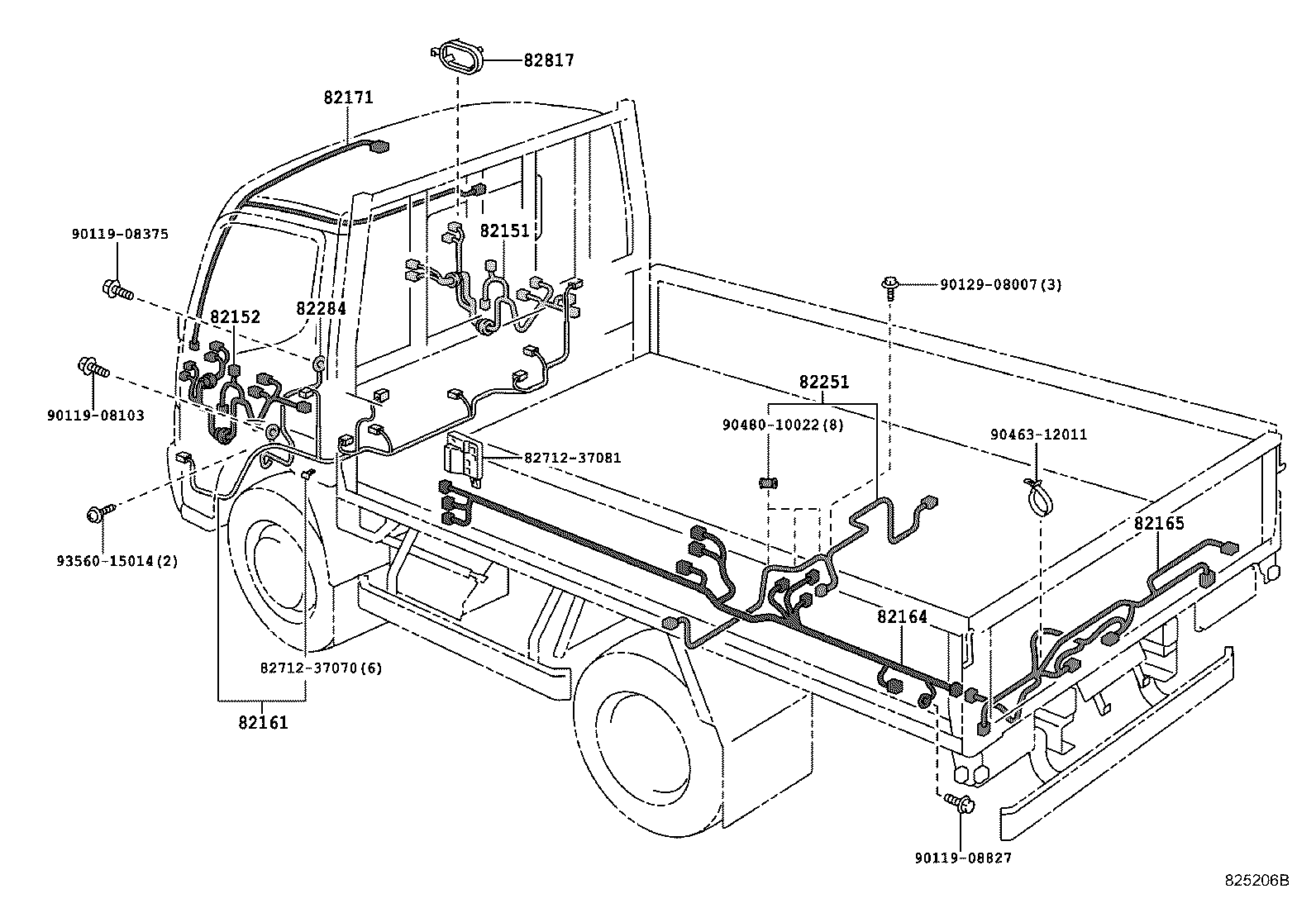

ILLUST NO. 4 OF 6(0310-0610)

Click highlighted areas on diagram

ﾎﾞﾃﾞ-

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-37380	XKU414,424 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	10/2003 - 10/2006	1
82151-37320	XKU414,424	10/2003 - 10/2006	1
82151-37221	XKU414,424 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	10/2003 - 10/2006	1
82152 - WIRE, FRONT DOOR, LH
82152-37480	XKU414,424 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	10/2003 - 10/2006	1
82152-37350	XKU414,424	10/2003 - 10/2006	1
82152-37430	XKU414,424 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	10/2003 - 10/2006	1
82161 - WIRE, FLOOR
82161-37160	XKU414,424 ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ)	10/2003 - 10/2006	1
82161-37170	XKU414,424 ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	10/2003 - 10/2006	1
82161-37150	XKU414,424	10/2003 - 10/2006	1
82164 - WIRE, FRAME
82164-37E10	XKU414..20T	10/2003 - 10/2006	1
82165 - WIRE, FRAME, NO.2
82165-37171	XKU414,424 ｱﾘ(3 ｶｲﾎｳﾀｲﾌﾟ)	06/2004 - 05/2005	1
82165-37390	XKU414,424	05/2005 - 10/2006	1
82165-37180	XKU414,424	10/2003 - 05/2005	1
82165-37420	XKU414,424 ｱﾘ(3 ｶｲﾎｳﾀｲﾌﾟ)	06/2005 - 10/2006	1
82171 - WIRE, ROOF, NO.1
82171-37520	XKU414,424	10/2003 - 10/2006	1
82171-37590	XKU414,424 ｱﾘ(ｼﾂﾅｲｹｲｺｳﾄｳ)	10/2003 - 10/2006	1
82251 - WIRE, SPEED SENSOR
82251-37210	XKU414..20T	10/2003 - 10/2006	1
82284 - WIRE, EARTH
82284-37120	XKU414,424	10/2003 - 09/2006	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	XKU414,424..T4	10/2003 - 10/2006	1
Common parts
82712-37070
82712-37081
90119-08103
90119-08375
90119-08827
90129-08007
90463-12011
90480-10022
93560-15014
