XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv

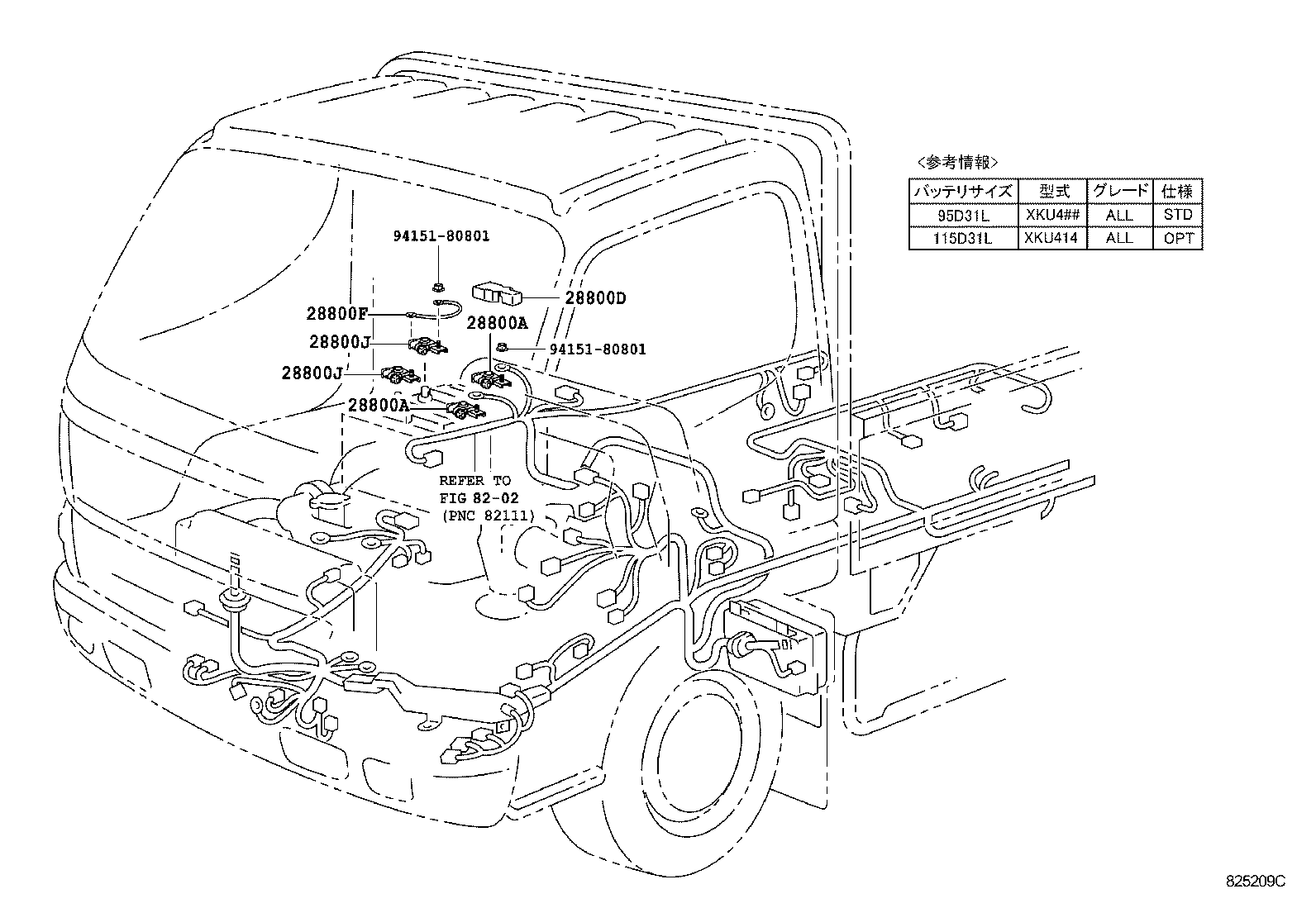

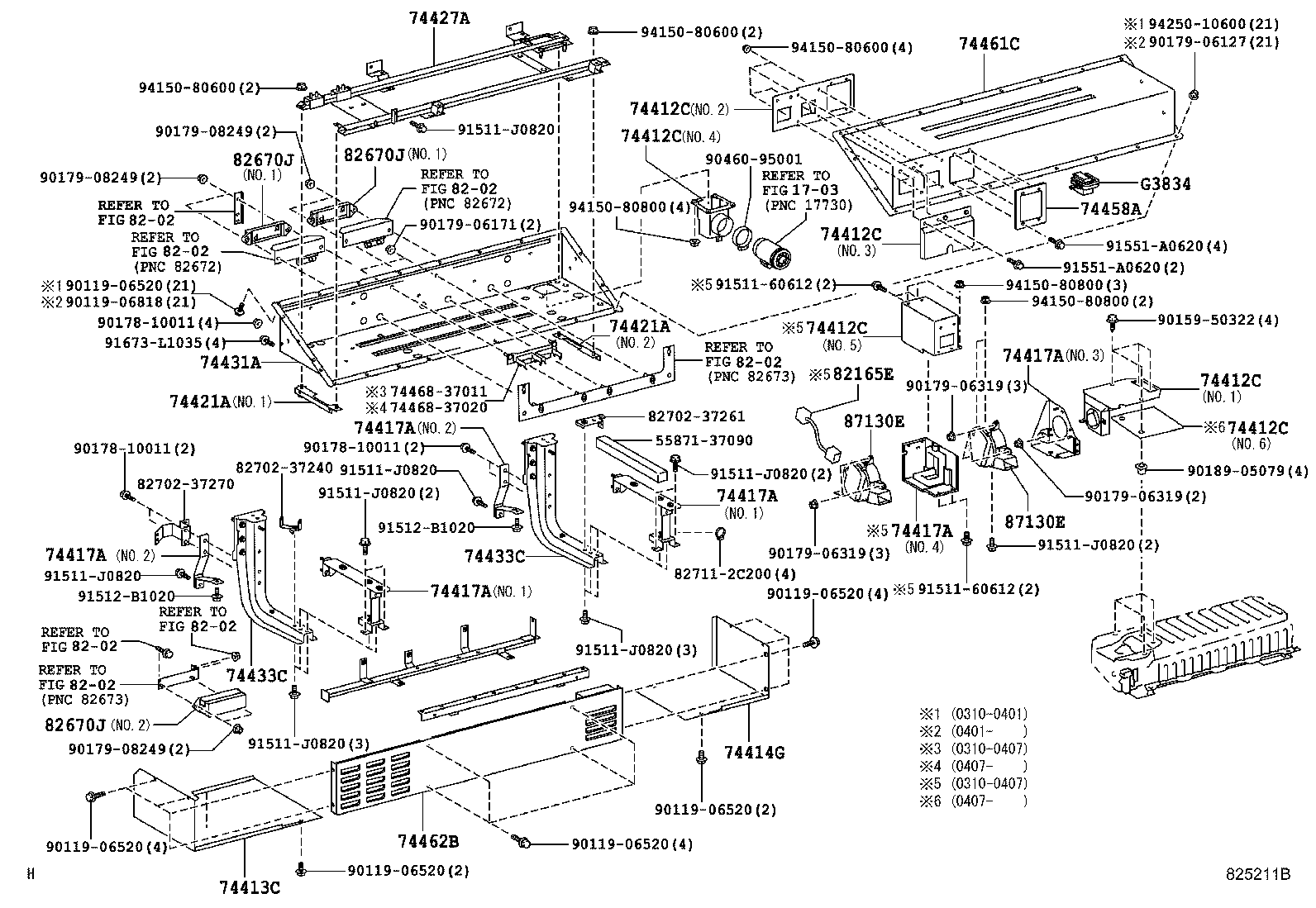

ILLUST NO. 1 OF 3(0310-0610)
12V ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05042 |
N04C..XKU414,424 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05042 |
N04C..XKU414,424 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C..XKU414,424 |
1 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37040 |
N04C..XKU414,424 |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06028 |
N04C..XKU414,424 |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06028 |
N04C..XKU414,424 |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 3 OF 3(0310-0610)
HV ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-37161 |
XKU414,424 NO.2 |
1 | ||
| 74412-37230 |
XKU414,424 NO.2 |
1 | ||
| 74412-37200 |
XKU414,424 NO.4 |
1 | ||
| 74412-37220 |
XKU414,424 NO.1 |
1 | ||
| 74412-37210 |
XKU414,424 NO.5 |
1 | ||
| 74412-37240 |
XKU414,424 NO.3 |
1 | ||
| 74412-37171 |
XKU414,424 NO.3 |
1 | ||
| 74412-37150 |
XKU414,424 NO.1 |
1 | ||
| 74412-37250 |
XKU414,424 NO.6 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-37161 |
XKU414,424 NO.2 |
1 | ||
| 74412-37230 |
XKU414,424 NO.2 |
1 | ||
| 74412-37200 |
XKU414,424 NO.4 |
1 | ||
| 74412-37220 |
XKU414,424 NO.1 |
1 | ||
| 74412-37210 |
XKU414,424 NO.5 |
1 | ||
| 74412-37240 |
XKU414,424 NO.3 |
1 | ||
| 74412-37171 |
XKU414,424 NO.3 |
1 | ||
| 74412-37150 |
XKU414,424 NO.1 |
1 | ||
| 74412-37250 |
XKU414,424 NO.6 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-37161 |
XKU414,424 NO.2 |
1 | ||
| 74412-37230 |
XKU414,424 NO.2 |
1 | ||
| 74412-37200 |
XKU414,424 NO.4 |
1 | ||
| 74412-37220 |
XKU414,424 NO.1 |
1 | ||
| 74412-37210 |
XKU414,424 NO.5 |
1 | ||
| 74412-37240 |
XKU414,424 NO.3 |
1 | ||
| 74412-37171 |
XKU414,424 NO.3 |
1 | ||
| 74412-37150 |
XKU414,424 NO.1 |
1 | ||
| 74412-37250 |
XKU414,424 NO.6 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-37161 |
XKU414,424 NO.2 |
1 | ||
| 74412-37230 |
XKU414,424 NO.2 |
1 | ||
| 74412-37200 |
XKU414,424 NO.4 |
1 | ||
| 74412-37220 |
XKU414,424 NO.1 |
1 | ||
| 74412-37210 |
XKU414,424 NO.5 |
1 | ||
| 74412-37240 |
XKU414,424 NO.3 |
1 | ||
| 74412-37171 |
XKU414,424 NO.3 |
1 | ||
| 74412-37150 |
XKU414,424 NO.1 |
1 | ||
| 74412-37250 |
XKU414,424 NO.6 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-37161 |
XKU414,424 NO.2 |
1 | ||
| 74412-37230 |
XKU414,424 NO.2 |
1 | ||
| 74412-37200 |
XKU414,424 NO.4 |
1 | ||
| 74412-37220 |
XKU414,424 NO.1 |
1 | ||
| 74412-37210 |
XKU414,424 NO.5 |
1 | ||
| 74412-37240 |
XKU414,424 NO.3 |
1 | ||
| 74412-37171 |
XKU414,424 NO.3 |
1 | ||
| 74412-37150 |
XKU414,424 NO.1 |
1 | ||
| 74412-37250 |
XKU414,424 NO.6 |
1 | ||
| 74412C - DUCT, BATTERY CARRIER | ||||
| 74412-37161 |
XKU414,424 NO.2 |
1 | ||
| 74412-37230 |
XKU414,424 NO.2 |
1 | ||
| 74412-37200 |
XKU414,424 NO.4 |
1 | ||
| 74412-37220 |
XKU414,424 NO.1 |
1 | ||
| 74412-37210 |
XKU414,424 NO.5 |
1 | ||
| 74412-37240 |
XKU414,424 NO.3 |
1 | ||
| 74412-37171 |
XKU414,424 NO.3 |
1 | ||
| 74412-37150 |
XKU414,424 NO.1 |
1 | ||
| 74412-37250 |
XKU414,424 NO.6 |
1 | ||
| 74413C - PANEL, BATTERY CARRIER, FRONT | ||||
| 74413-37090 |
XKU414,424 |
1 | ||
| 74413-37070 |
XKU414,424 |
1 | ||
| 74414G - PANEL, BATTERY CARRIER, RR | ||||
| 74414-37150 |
XKU414,424 |
1 | ||
| 74417A - BRACKET, BATTERY CARRIER | ||||
| 74417-37050 |
XKU414,424 NO.2 |
2 | ||
| 74417-37091 |
XKU414,424 NO.3 |
1 | ||
| 74417-37120 |
XKU414,424 NO.3 |
1 | ||
| 74417-37100 |
XKU414,424 NO.4 |
1 | ||
| 74417-37041 |
XKU414,424 NO.1 |
2 | ||
| 74417A - BRACKET, BATTERY CARRIER | ||||
| 74417-37050 |
XKU414,424 NO.2 |
2 | ||
| 74417-37091 |
XKU414,424 NO.3 |
1 | ||
| 74417-37120 |
XKU414,424 NO.3 |
1 | ||
| 74417-37100 |
XKU414,424 NO.4 |
1 | ||
| 74417-37041 |
XKU414,424 NO.1 |
2 | ||
| 74417A - BRACKET, BATTERY CARRIER | ||||
| 74417-37050 |
XKU414,424 NO.2 |
2 | ||
| 74417-37091 |
XKU414,424 NO.3 |
1 | ||
| 74417-37120 |
XKU414,424 NO.3 |
1 | ||
| 74417-37100 |
XKU414,424 NO.4 |
1 | ||
| 74417-37041 |
XKU414,424 NO.1 |
2 | ||
| 74417A - BRACKET, BATTERY CARRIER | ||||
| 74417-37050 |
XKU414,424 NO.2 |
2 | ||
| 74417-37091 |
XKU414,424 NO.3 |
1 | ||
| 74417-37120 |
XKU414,424 NO.3 |
1 | ||
| 74417-37100 |
XKU414,424 NO.4 |
1 | ||
| 74417-37041 |
XKU414,424 NO.1 |
2 | ||
| 74417A - BRACKET, BATTERY CARRIER | ||||
| 74417-37050 |
XKU414,424 NO.2 |
2 | ||
| 74417-37091 |
XKU414,424 NO.3 |
1 | ||
| 74417-37120 |
XKU414,424 NO.3 |
1 | ||
| 74417-37100 |
XKU414,424 NO.4 |
1 | ||
| 74417-37041 |
XKU414,424 NO.1 |
2 | ||
| 74417A - BRACKET, BATTERY CARRIER | ||||
| 74417-37050 |
XKU414,424 NO.2 |
2 | ||
| 74417-37091 |
XKU414,424 NO.3 |
1 | ||
| 74417-37120 |
XKU414,424 NO.3 |
1 | ||
| 74417-37100 |
XKU414,424 NO.4 |
1 | ||
| 74417-37041 |
XKU414,424 NO.1 |
2 | ||
| 74421A - CHANNEL, BATTERY CARRIER, NO.1 RH | ||||
| 74421-37071 |
XKU414,424 NO.1 |
1 | ||
| 74421-37111 |
XKU414,424 NO.2 |
1 | ||
| 74421-37080 |
XKU414,424 NO.1 |
1 | ||
| 74421-37110 |
XKU414,424 NO.2 |
1 | ||
| 74421A - CHANNEL, BATTERY CARRIER, NO.1 RH | ||||
| 74421-37071 |
XKU414,424 NO.1 |
1 | ||
| 74421-37111 |
XKU414,424 NO.2 |
1 | ||
| 74421-37080 |
XKU414,424 NO.1 |
1 | ||
| 74421-37110 |
XKU414,424 NO.2 |
1 | ||
| 74427A - BRACKET, BATTERY CARRIER CATCH, NO.1 | ||||
| 74427-37040 |
XKU414,424 |
1 | ||
| 74427-37031 |
XKU414,424 |
1 | ||
| 74431A - TRAY, BATTERY | ||||
| 74431-37021 |
XKU414,424 |
1 | ||
| 74431-37030 |
XKU414,424 |
1 | ||
| 74433C - SUPPORT, BATTERY TRAY | ||||
| 74433-37061 |
XKU414,424 |
2 | ||
| 74433C - SUPPORT, BATTERY TRAY | ||||
| 74433-37061 |
XKU414,424 |
2 | ||
| 74458A - LID, BATTERY COVER, NO.1 | ||||
| 74458-37011 |
XKU414,424 |
1 | ||
| 74461C - COVER, BATTERY | ||||
| 74461-37090 |
XKU414,424 |
1 | ||
| 74461-37081 |
XKU414,424 |
1 | ||
| 74462B - PANEL, BATTERY CARRIER, NO.2 | ||||
| 74462-37030 |
XKU414,424 |
1 | ||
| 74462-37021 |
XKU414,424 |
1 | ||
| 82165E - WIRE, BATTERY PACK | ||||
| 82165-37340 |
XKU414,424 |
1 | ||
| 82670J - BLOCK ASSY, JUNCTION | ||||
| 82670-37021 |
XKU414,424 NO.1 |
2 | ||
| 82670-37031 |
XKU414,424 NO.2 |
1 | ||
| 82670-37030 |
XKU414,424 NO.2 |
1 | ||
| 82670J - BLOCK ASSY, JUNCTION | ||||
| 82670-37021 |
XKU414,424 NO.1 |
2 | ||
| 82670-37031 |
XKU414,424 NO.2 |
1 | ||
| 82670-37030 |
XKU414,424 NO.2 |
1 | ||
| 82670J - BLOCK ASSY, JUNCTION | ||||
| 82670-37021 |
XKU414,424 NO.1 |
2 | ||
| 82670-37031 |
XKU414,424 NO.2 |
1 | ||
| 82670-37030 |
XKU414,424 NO.2 |
1 | ||
| 87130E - BLOWER ASSY, BATTERY | ||||
| 87130-89101 |
XKU414,424 |
1 | ||
| 87130E - BLOWER ASSY, BATTERY | ||||
| 87130-89101 |
XKU414,424 |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-47020 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 55871-37090 | ||||
| 74468-37011 | ||||
| 74468-37020 | ||||
| 82702-37240 | ||||
| 82702-37261 | ||||
| 82702-37270 | ||||
| 82711-2C200 | ||||
| 90119-06520 | ||||
| 90119-06818 | ||||
| 90159-50322 | ||||
| 90178-10011 | ||||
| 90179-06127 | ||||
| 90179-06171 | ||||
| 90179-06319 | ||||
| 90179-08249 | ||||
| 90189-05079 | ||||
| 90460-95001 | ||||
| 91511-60612 | ||||
| 91511-J0820 | ||||
| 91512-B1020 | ||||
| 91551-A0620 | ||||
| 91673-L1035 | ||||
| 94150-80600 | ||||
| 94150-80800 | ||||
| 94250-10600 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 3(0310-0610)
HV ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28885A - HOSE, BATTERY ROOM VENTILATION | ||||
| 28885-21020 |
N04C..XKU414,424 |
1 | ||
| 74459A - LID, BATTERY COVER, NO.2 | ||||
| 74459-47010 |
N04C..XKU414,424 |
1 | ||
| 82611C - COVER, FUSE BLOCK | ||||
| 82611-47020 |
XKU414,424 |
1 | ||
| 82685F - MAIN BATTERY CAUTION PLATE, NO.1 | ||||
| 82685-47010 |
XKU414,424 |
1 | ||
| 82685F - MAIN BATTERY CAUTION PLATE, NO.1 | ||||
| 82685-47010 |
XKU414,424 |
1 | ||
| 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-47110 |
XKU414,424 |
1 | ||
| 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-47120 |
XKU414,424 |
1 | ||
| 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-47130 |
XKU414,424 |
2 | ||
| 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-47130 |
XKU414,424 |
2 | ||
| 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-47140 |
XKU414,424 |
2 | ||
| 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-47140 |
XKU414,424 |
2 | ||
| 89890A - COMPUTER ASSY, BATTERY | ||||
| 89890-47050 |
XKU414,424 DENSO |
1 | ||
| 89890-47040 |
XKU414,424 PRIMEARTH |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| 90982-11045 |
XKU414,424 125A､ﾏｰｸ=90982ｰ11045 |
1 | ||
| G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY | ||||
| G3830-47030 |
XKU414,424 |
1 | ||
| G3840A - RELAY ASSY, HYBRID VEHICLE | ||||
| G3840-47011 |
N04C..XKU414,424 |
1 | ||
| G9242 - CABLE, MAIN BATTERY | ||||
| G9242-89101 |
XKU414,424 NO.1 |
1 | ||
| G9242-89102 |
XKU414,424 NO.2 |
1 | ||
| G9242 - CABLE, MAIN BATTERY | ||||
| G9242-89101 |
XKU414,424 NO.1 |
1 | ||
| G9242-89102 |
XKU414,424 NO.2 |
1 | ||
| G9282 - THERMISTOR, HYBRID BATTERY | ||||
| G9282-47030 |
N04C..XKU414,424 |
1 | ||
| G9283 - WIRE, HYBRID BATTERY | ||||
| G9283-89102 |
XKU414,424 |
1 | ||
| G9283-89103 |
XKU414,424 |
1 | ||
| G9297 - INSULATOR, HYBRID BATTERY | ||||
| G9297-89101 |
XKU414,424 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-47020 |
XKU414,424 |
1 | ||
| G9520B - BATTERY ASSY, HV RECYCLE | ||||
| G9520-47050 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 55358-47020 | ||||
| 55871-37080 | ||||
| 82817-32840 | ||||
| 82817-47200 | ||||
| 90119-05046 | ||||
| 91511-B0816 | ||||
| 91512-B1020 | ||||
| 91651-40616 | ||||
| 93385-15010 | ||||
| 93385-15014 | ||||
| 93385-15025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
