XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

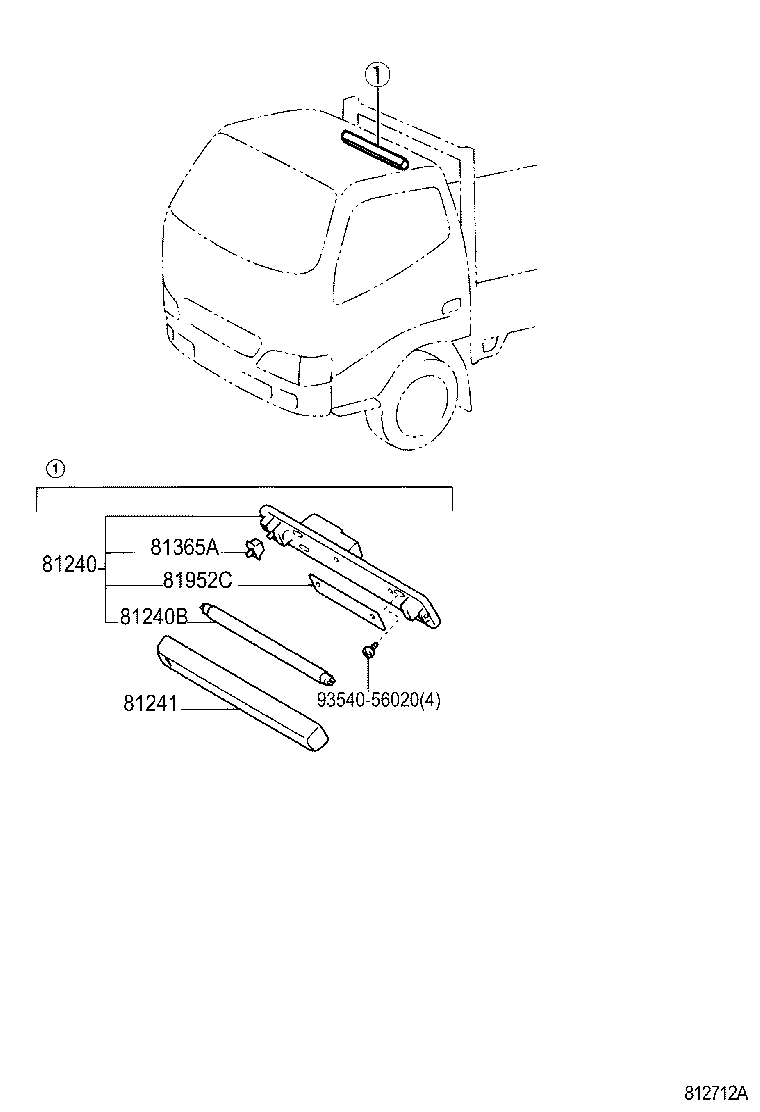

Click highlighted areas on diagram

diagram 81240 81240B 81241 81365A 81952C 9354056020
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81580-37050B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11053

XKU414,424

100V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-37020

XKU414,424

 1
81365A - KNOB, ROOM LAMP SWITCH
81365-37010B1

XKU414,424

MD.CHARCOAL,TRIM1#

 1
81952C - COVER, REAR LAMP
81952-37020

XKU414,424

 1
Common parts
93540-56020
