Toyota Dyna/toyoace hv XKU414 HEADLAMP

XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

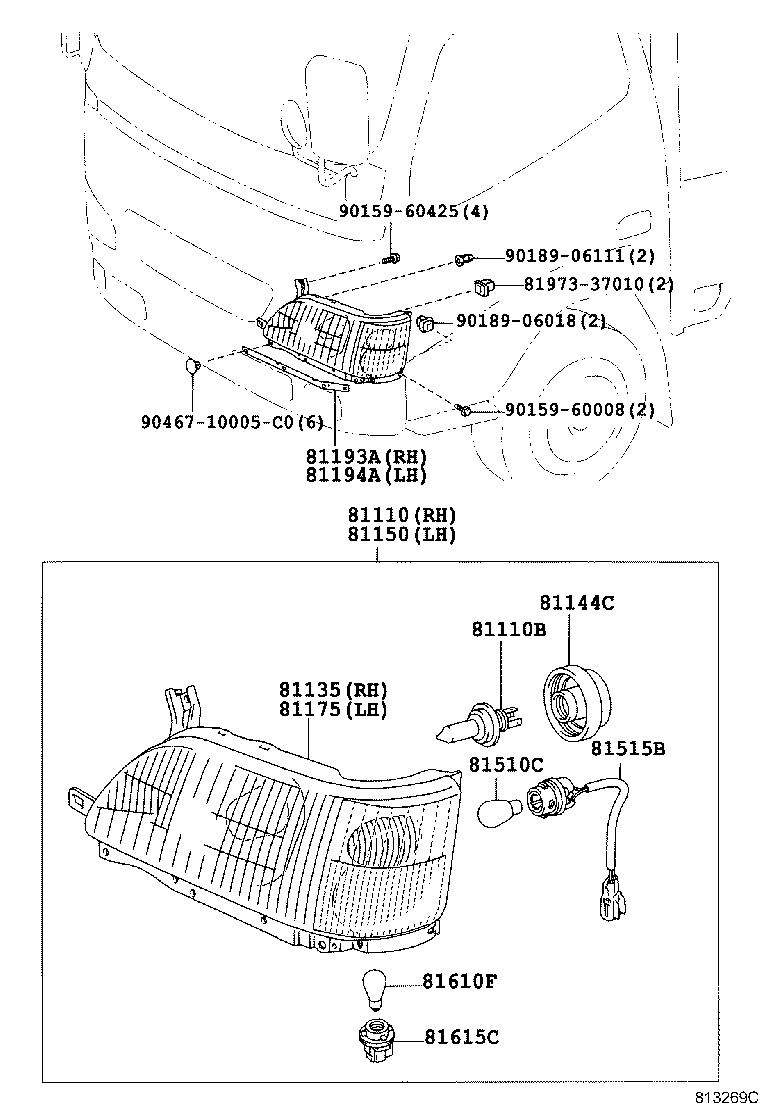

(0310-0505)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-37211	XKU414,424	01/2005 - 05/2005	1
81110-37210	XKU414,424	10/2003 - 12/2004	1
81110-37290	XKU414,424	05/2005 - 10/2006	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17019	XKU414,424 24V 75/70W,HAL WH	10/2003 - 10/2006	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-37210	XKU414,424	10/2003 - 01/2005	1
81130-37211	XKU414,424	01/2005 - 05/2005	1
81130-37290	XKU414,424	05/2005 - 10/2006	1
81144C - COVER, HEADLAMP SOCKET
90075-65002	XKU414,424	10/2003 - 10/2006	2
81150 - HEADLAMP ASSY, LH
81150-37290	XKU414,424	05/2005 - 10/2006	1
81150-37211	XKU414,424	01/2005 - 05/2005	1
81150-37210	XKU414,424	10/2003 - 12/2004	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-37211	XKU414,424	01/2005 - 05/2005	1
81170-37210	XKU414,424	10/2003 - 01/2005	1
81170-37290	XKU414,424	05/2005 - 10/2006	1
81193A - PROTECTOR, HEADLAMP, RH
81193-37060	XKU414,424	05/2005 - 10/2006	1
81193-37040	XKU414,424	10/2003 - 05/2005	1
81194A - PROTECTOR, HEADLAMP, LH
81193-37040	XKU414,424	10/2003 - 05/2005	1
81193-37060	XKU414,424	05/2005 - 10/2006	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16014	XKU414,424 24V 21W	10/2003 - 10/2006	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81138-37200	XKU414,424	10/2003 - 10/2006	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-12015	XKU414,424 24V 5W	05/2005 - 10/2006	2
90981-16015	XKU414,424 24V 21/5W	10/2003 - 05/2005	2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-99106	XKU414,424	10/2003 - 05/2005	2
90075-60004	XKU414,424	05/2005 - 10/2006	2
Common parts
81973-37010
90159-60008
90159-60425
90189-06018
90189-06111
90467-10005C0

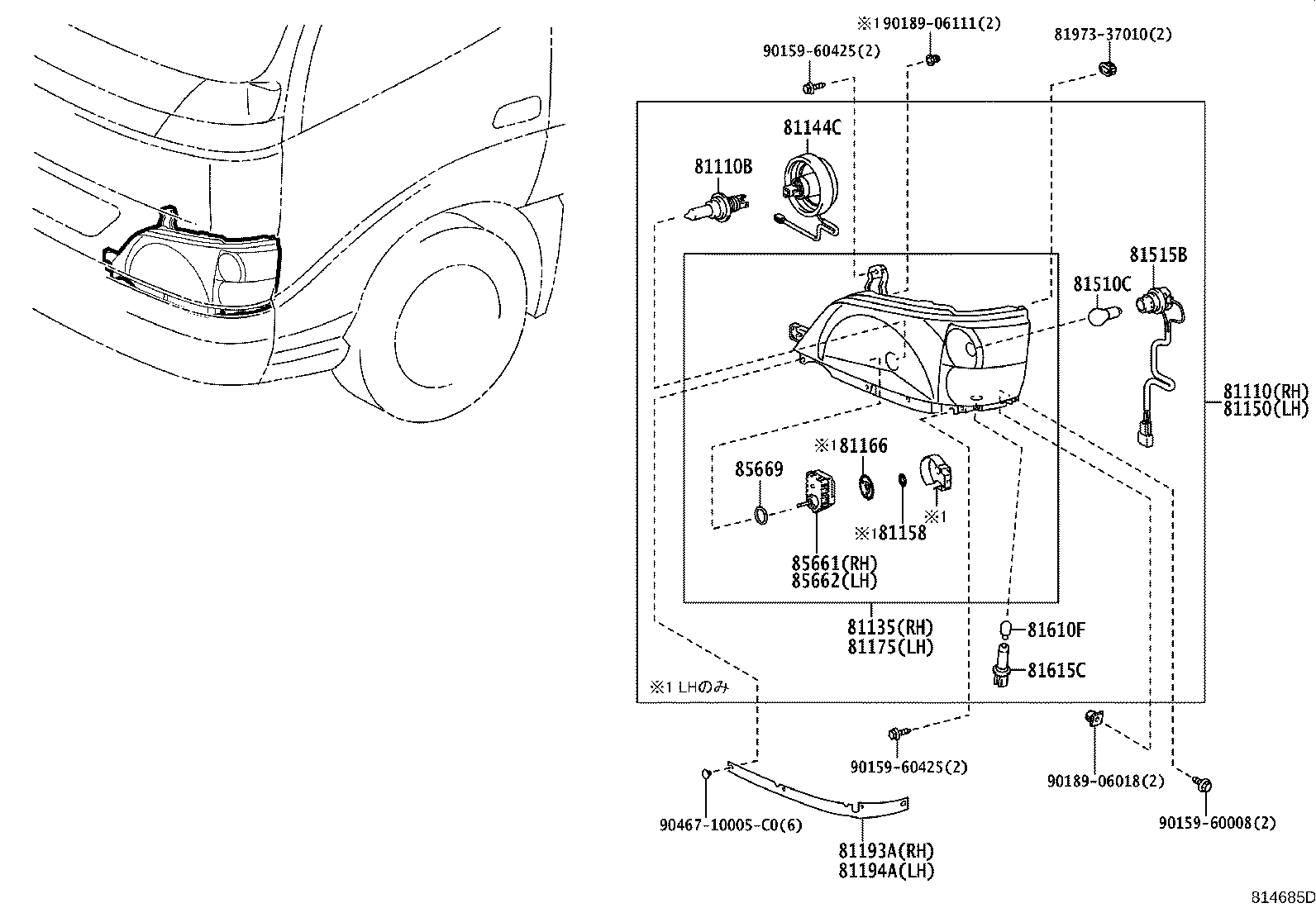

(0505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-37211	XKU414,424	01/2005 - 05/2005	1
81110-37210	XKU414,424	10/2003 - 12/2004	1
81110-37290	XKU414,424	05/2005 - 10/2006	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17019	XKU414,424 24V 75/70W,HAL WH	10/2003 - 10/2006	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-37210	XKU414,424	10/2003 - 01/2005	1
81130-37211	XKU414,424	01/2005 - 05/2005	1
81130-37290	XKU414,424	05/2005 - 10/2006	1
81144C - COVER, HEADLAMP SOCKET
90075-65002	XKU414,424	10/2003 - 10/2006	2
81150 - HEADLAMP ASSY, LH
81150-37290	XKU414,424	05/2005 - 10/2006	1
81150-37211	XKU414,424	01/2005 - 05/2005	1
81150-37210	XKU414,424	10/2003 - 12/2004	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-37211	XKU414,424	01/2005 - 05/2005	1
81170-37210	XKU414,424	10/2003 - 01/2005	1
81170-37290	XKU414,424	05/2005 - 10/2006	1
81193A - PROTECTOR, HEADLAMP, RH
81193-37060	XKU414,424	05/2005 - 10/2006	1
81193-37040	XKU414,424	10/2003 - 05/2005	1
81194A - PROTECTOR, HEADLAMP, LH
81193-37040	XKU414,424	10/2003 - 05/2005	1
81193-37060	XKU414,424	05/2005 - 10/2006	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16014	XKU414,424 24V 21W	10/2003 - 10/2006	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81138-37200	XKU414,424	10/2003 - 10/2006	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-12015	XKU414,424 24V 5W	05/2005 - 10/2006	2
90981-16015	XKU414,424 24V 21/5W	10/2003 - 05/2005	2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-99106	XKU414,424	10/2003 - 05/2005	2
90075-60004	XKU414,424	05/2005 - 10/2006	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12010	XKU414,424	05/2005 - 10/2006	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12010	XKU414,424	05/2005 - 10/2006	1
Common parts
81973-37010
90159-60008
90159-60425
90189-06018
90189-06111
90467-10005C0

XKU414-TQFMW3 (2003)

(0310-0505)

(0505- )
