XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310-0610)

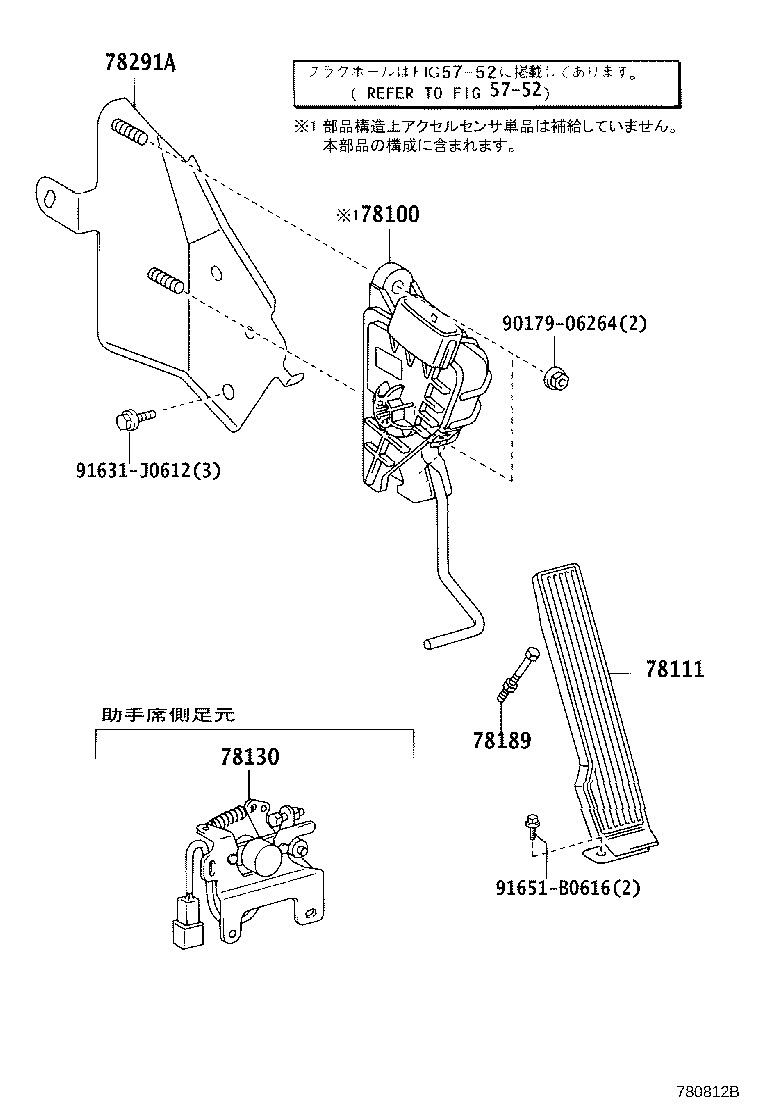

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37750 |
XKU414,424 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
XKU414,424 |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-37131 |
XKU414,424 |
1 | ||
| 78130-37130 |
XKU414,424 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37080 |
XKU414,424 |
1 | ||
| 78291A - BRACKET, ACCELERATOR LINK | ||||
| 78291-37040 |
XKU414 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78291-37030 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90179-06264 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 5752 | ||||
(0505-0610)XKU414

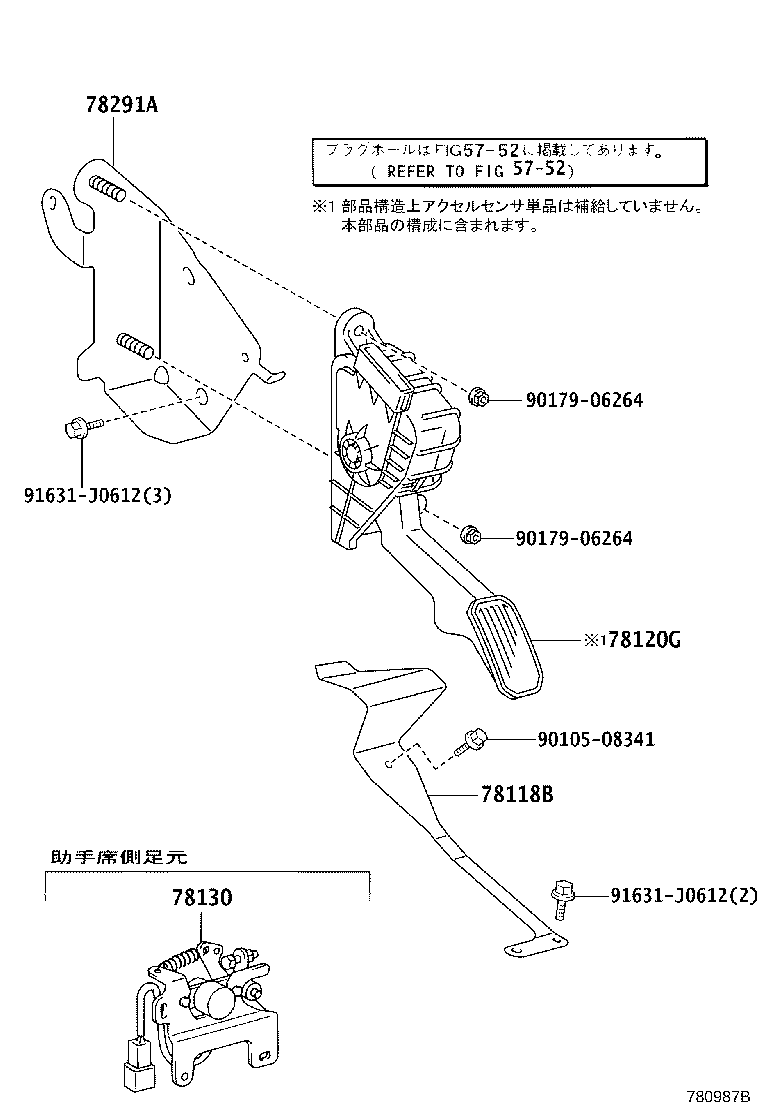

Click highlighted areas on diagram
ｶﾝﾚｲﾁ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78118B - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-37010 |
XKU414 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-35460 |
XKU414 |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-37131 |
XKU414,424 |
1 | ||
| 78130-37130 |
XKU414,424 |
1 | ||
| 78291A - BRACKET, ACCELERATOR LINK | ||||
| 78291-37040 |
XKU414 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78291-37030 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90105-08341 | ||||
| 90179-06264 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5752 | ||||
