XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv

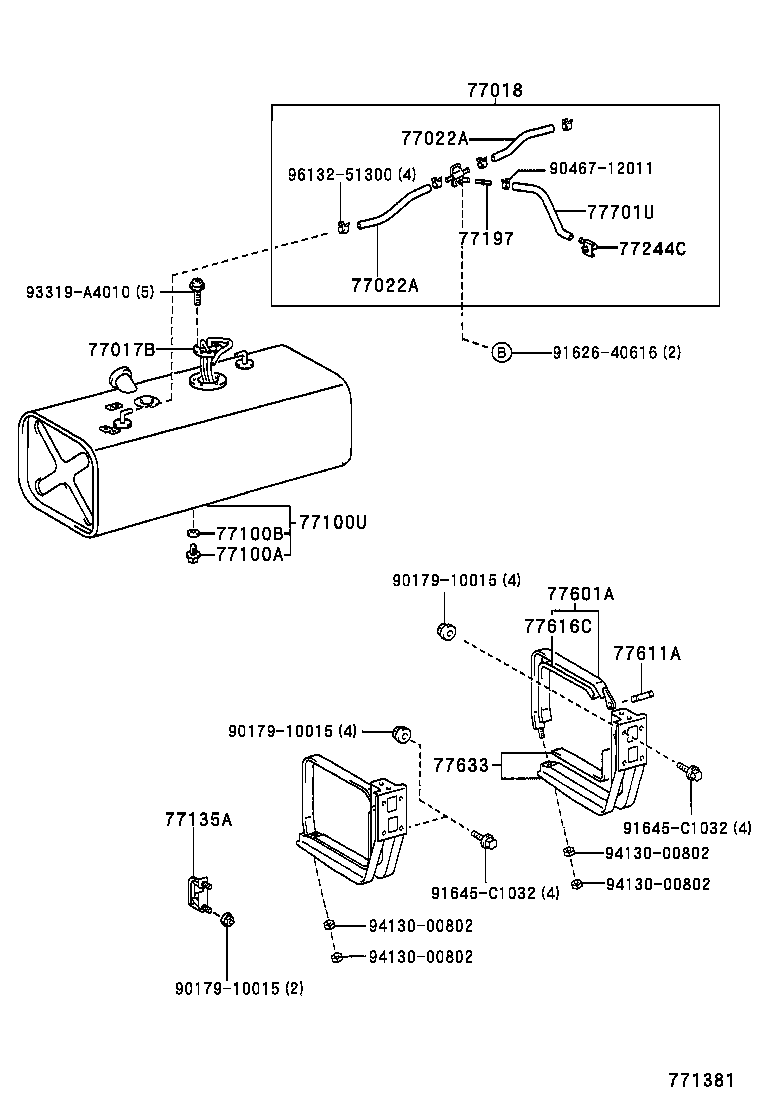

ILLUST NO. 1 OF 2(0310-0610)
ﾌﾕ-ｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
XKU414,424 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37050 |
XKU414,424 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XKU414,424 *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XKU414,424 *H,L=280,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XKU414,424 |
1 | ||
| 90105-12116 |
XKU414,424 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XKU414,424 |
1 | ||
| 90430-12245 |
XKU414,424 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37222 |
XKU414,424 960X310X385 |
1 | ||
| 77001-37221 |
XKU414,424 960X310X385 |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37110 |
XKU414,424 |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XKU414,424 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XKU414,424 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XKU414,424 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XKU414,424 |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XKU414,424 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XKU414,424 |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XKU414,424 *H,L=400 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90467-12011 | ||||
| 91626-40616 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||

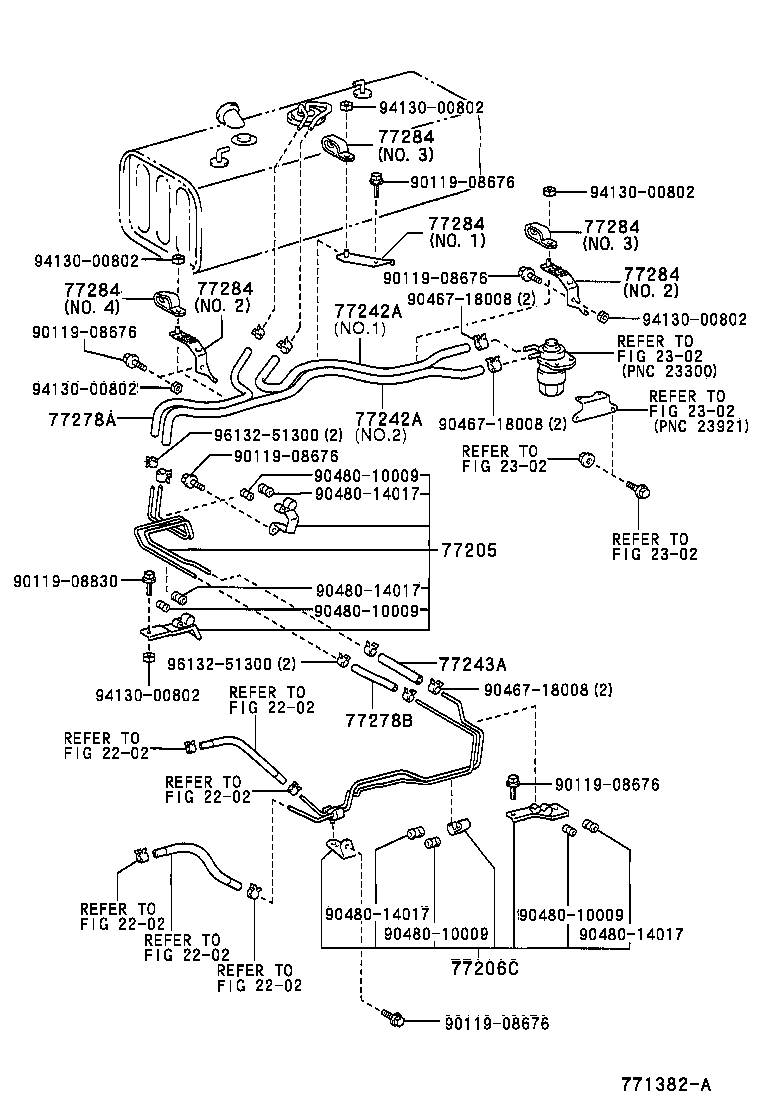

ILLUST NO. 2 OF 2(0310-0610)
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37710 |
XKU414,424 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37A00 |
XKU414,424 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77279-37070 |
XKU414,424 NO.1 |
1 | ||
| 95332-12095 |
XKU414,424 *H,L=950,内径=12,NO.2 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77279-37070 |
XKU414,424 NO.1 |
1 | ||
| 95332-12095 |
XKU414,424 *H,L=950,内径=12,NO.2 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XKU414,424 *H,L=160,内径=12 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08060 |
XKU414,424 *H,L=550,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XKU414,424 *H,L=160,内径=7.6 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90034-61050 |
XKU414,424 NO.3 |
2 | ||
| 77281-37190 |
XKU414,424 NO.1 |
1 | ||
| 77286-37310 |
XKU414,424 NO.2 |
2 | ||
| 90034-61051 |
XKU414,424 NO.4 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90034-61050 |
XKU414,424 NO.3 |
2 | ||
| 77281-37190 |
XKU414,424 NO.1 |
1 | ||
| 77286-37310 |
XKU414,424 NO.2 |
2 | ||
| 90034-61051 |
XKU414,424 NO.4 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90034-61050 |
XKU414,424 NO.3 |
2 | ||
| 77281-37190 |
XKU414,424 NO.1 |
1 | ||
| 77286-37310 |
XKU414,424 NO.2 |
2 | ||
| 90034-61051 |
XKU414,424 NO.4 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90034-61050 |
XKU414,424 NO.3 |
2 | ||
| 77281-37190 |
XKU414,424 NO.1 |
1 | ||
| 77286-37310 |
XKU414,424 NO.2 |
2 | ||
| 90034-61051 |
XKU414,424 NO.4 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90034-61050 |
XKU414,424 NO.3 |
2 | ||
| 77281-37190 |
XKU414,424 NO.1 |
1 | ||
| 77286-37310 |
XKU414,424 NO.2 |
2 | ||
| 90034-61051 |
XKU414,424 NO.4 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90034-61050 |
XKU414,424 NO.3 |
2 | ||
| 77281-37190 |
XKU414,424 NO.1 |
1 | ||
| 77286-37310 |
XKU414,424 NO.2 |
2 | ||
| 90034-61051 |
XKU414,424 NO.4 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
