XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

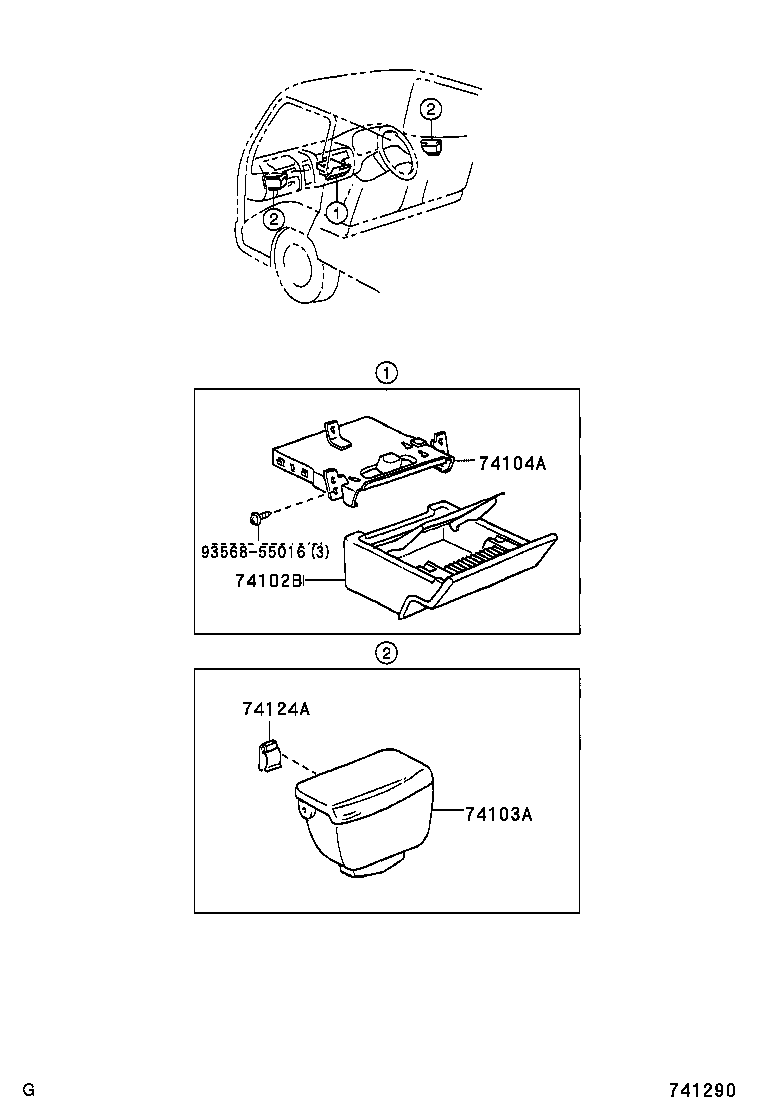

Click highlighted areas on diagram

diagram 74102B 74103A 74104A 74124A 9356855016
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74103A - DOOR SUB-ASSY, FRONT ASH RECEPTACLE
74103-37010B0

XKU414,424

ﾅｼ(ｼﾞｮｼｭｾｷ ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ),MD.CHARCOAL,TRIM1#

 1
74103-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 2
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-37020

XKU414,424

 1
74124A - SPRING, ASH RECEPTACLE
74124-37010

XKU414,424

ﾅｼ(ｼﾞｮｼｭｾｷ ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ)

 1
74124-37010

XKU414,424

 2
Common parts
93568-55016
