XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

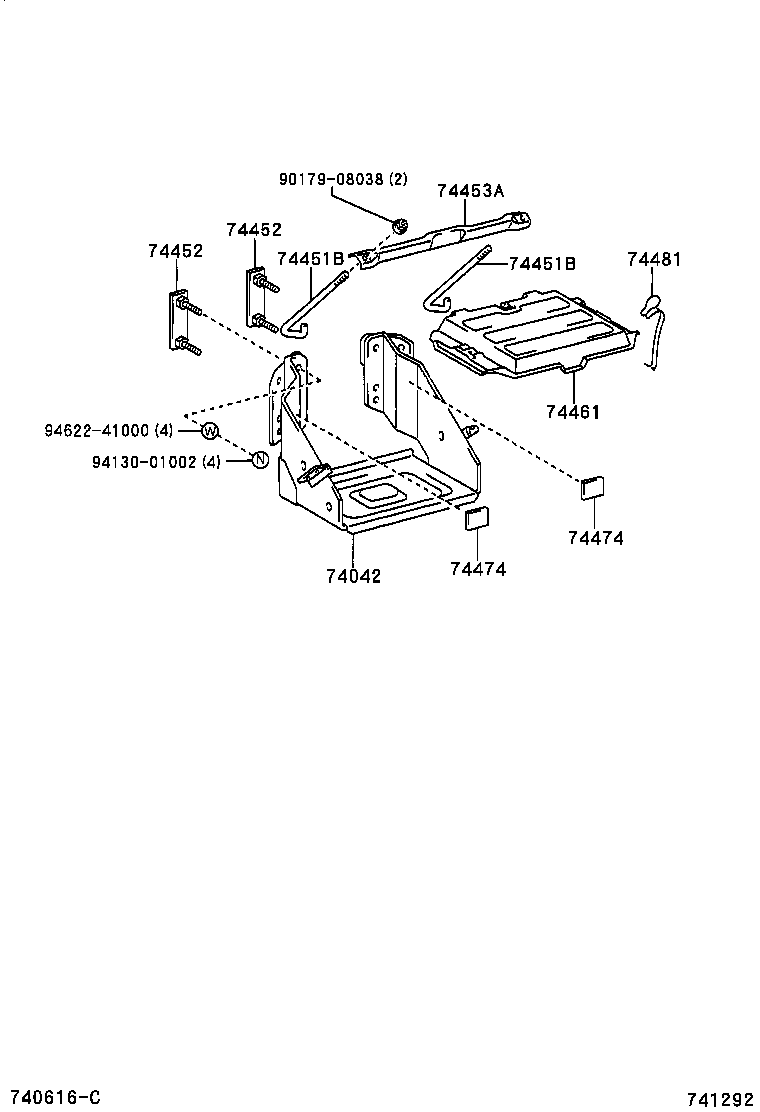

Click highlighted areas on diagram

diagram 74042 74451B 74451B 74452 74452 74453A 74461 74474 74474 74481 9017908038 9413001002 9462241000
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-37050

XKU414,424

 1
74451B - BOLT, BATTERY CLAMP
74451-37021

XKU414,424

 2
74451B - BOLT, BATTERY CLAMP
74451-37021

XKU414,424

 2
74452 - PLATE, BATTERY SET
74452-37020

XKU414,424

 2
74452 - PLATE, BATTERY SET
74452-37020

XKU414,424

 2
74453A - BAR, BATTERY SET PLATE
74453-36070

XKU414,424

 1
74461 - COVER, BATTERY
74461-37030

XKU414,424

 1
74474 - PAD, BATTERY
74475-36040

XKU414,424

 2
74474 - PAD, BATTERY
74475-36040

XKU414,424

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030

XKU414,424

 2
Common parts
90179-08038
94130-01002
94622-41000
