XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

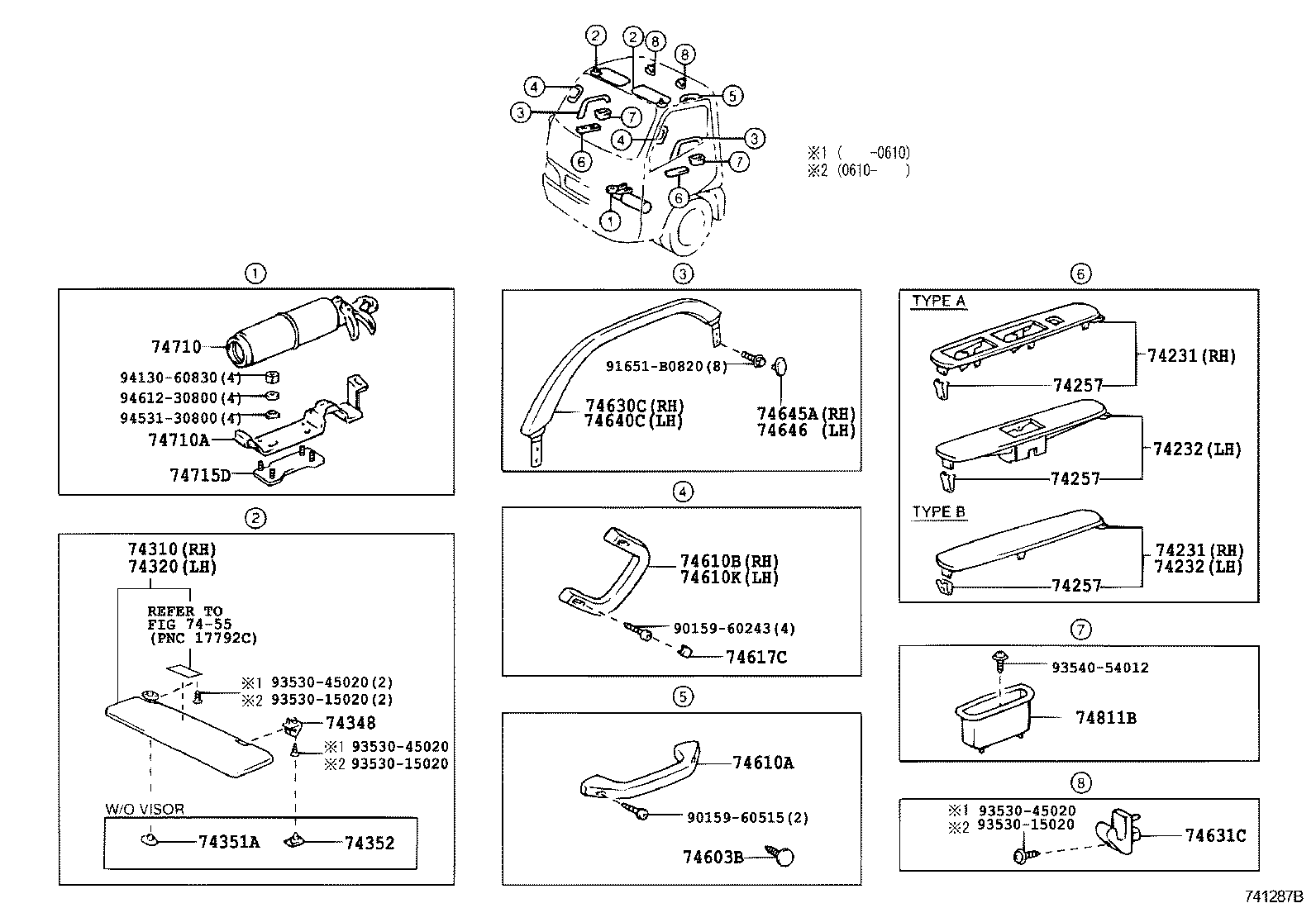

Click highlighted areas on diagram

diagram 74231 74231 74232 74232 74257 74257 74257 74310 74320 74348 74351A 74352 7455 74603B 74610A 74610B 74610K 74617C 74630C 74631C 74640C 74645A 74646 74710 74710A 74715D 74811B 9015960243 9015960515 91651B0820 9353015020 9353015020 9353015020 9353045020 9353045020 9353045020 9354054012 9413060830 9453130800 9461230800
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-37012B0

XKU414,424

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74231-37020B0

XKU414,424

TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ & ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ),MD.CHARCOAL,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-37012B0

XKU414,424

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74231-37020B0

XKU414,424

TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ & ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ),MD.CHARCOAL,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74231-37020B0

XKU414,424

TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ & ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ),MD.CHARCOAL,TRIM1#

 1
74232-37010B0

XKU414,424

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74231-37020B0

XKU414,424

TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ & ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ),MD.CHARCOAL,TRIM1#

 1
74232-37010B0

XKU414,424

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74257 - SPRING, ARMREST, NO.1
74257-37010

XKU414,424

 2
74257 - SPRING, ARMREST, NO.1
74257-37010

XKU414,424

 2
74257 - SPRING, ARMREST, NO.1
74257-37010

XKU414,424

 2
74310 - VISOR ASSY, RH
74310-37370B0

XKU414,424

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74310-37360B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74310-37600B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74310-37610B0

XKU414,424

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74310-37440B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74310-37450B0

XKU414,424

ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-37091B0

XKU414,424

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74320-37190B0

XKU414,424

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74320-37180B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74320-37041B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74320-37260B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74320-37270B0

XKU414,424

ｱﾘ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
74348 - HOLDER, VISOR
74348-22020B9

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74348-22020B9

XKU414,424

ｱﾘ(ﾊﾞｲｻﾞ = ｼﾞﾖｼﾕｾｷ),MD.CHARCOAL,TRIM1#

 2
74351A - COVER, VISOR, NO.1
74351-35010B2

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74352 - COVER, VISOR, NO.2
74352-35010B2

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74603B - CLIP (FOR ASSIST GRIP)
90467-05101B2

XKU414,424

MD.CHARCOAL,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74611-89101B2

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74610B - GRIP ASSY, ASSIST, NO.2 RH
74610-95404B1

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74610K - GRIP ASSY, ASSIST, NO.2 LH
74610-95404B1

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74617C - PLUG, ASSIST GRIP
74617-95J00B1

XKU414,424

MD.CHARCOAL,TRIM1#

 4
74630C - GRIP ASSY, DOOR ASSIST, RH
74630-37020B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74631C - HOOK, COAT
74348-22020B9

XKU414,424

MD.CHARCOAL,TRIM1#

 2
74640C - GRIP ASSY, DOOR ASSIST, LH
74640-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74645-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
74710 - EXTINGUISHER ASSY
74711-37010

XKU414,424

 1
74710A - BRACKET, EXTINGUISHER
74712-37010

XKU414,424

 1
74715D - RETAINER, EXTINGUISHER, NO.1
74715-37020

XKU414,424

 1
74811B - HANDLE, DOOR PULL
74811-95J04B2

XKU414,424

MD.CHARCOAL,TRIM1#

 2
Common parts
90159-60243
90159-60515
91651-B0820
93530-15020
93530-45020
93540-54012
94130-60830
94531-30800
94612-30800
Linked diagrams
7455
