Toyota Dyna/toyoace hv XKU414 SEAT & SEAT TRACK

XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0310-0610)

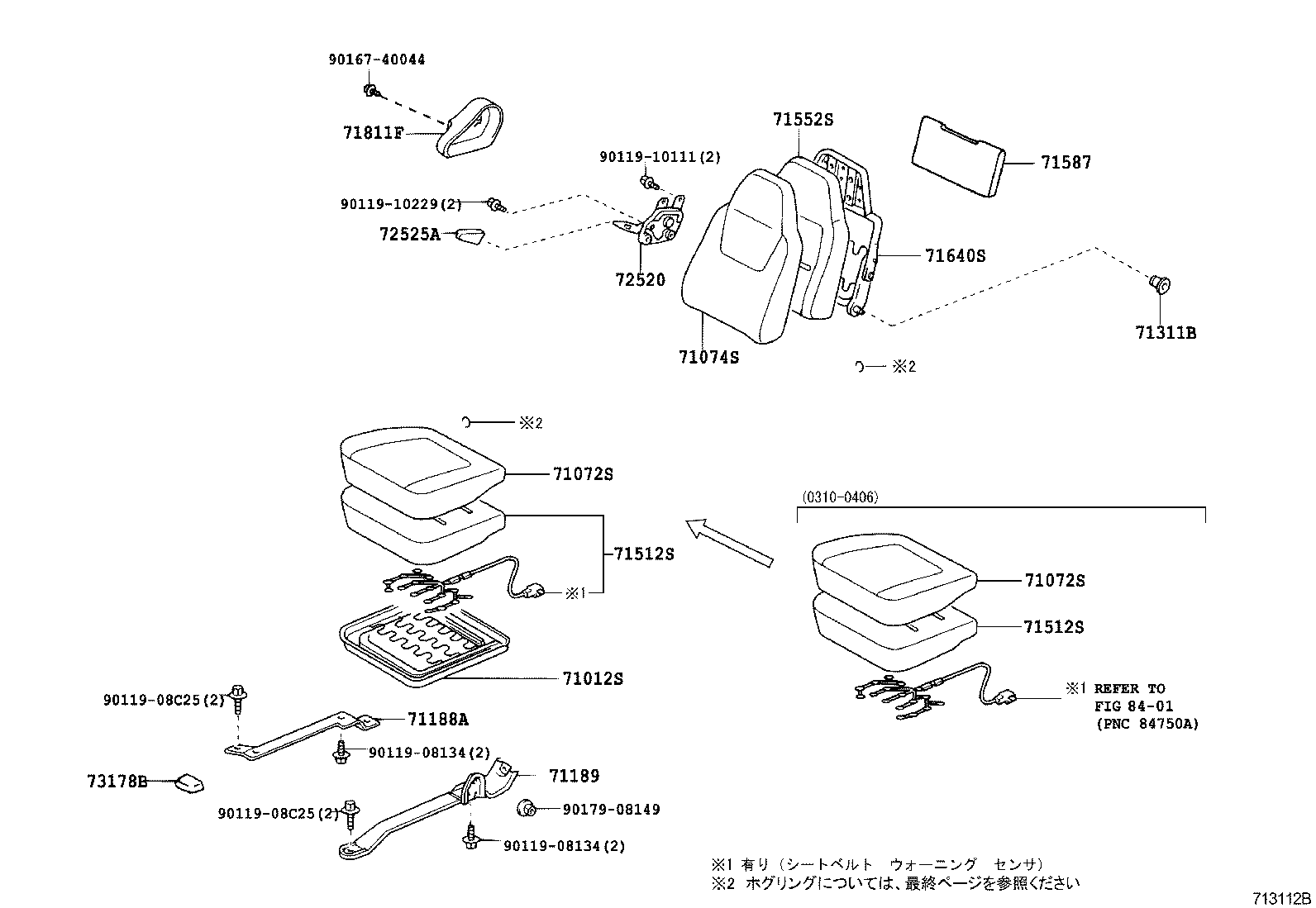

Click highlighted areas on diagram

ｼﾞｮｼﾞｭｾｷ

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71610-37010	XKU414,424	10/2003 - 10/2006	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-37590B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71071-37600B1	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71071-37620B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072-3V180B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71072-3V340B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072-3V190B0	XKU414,424 ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-37590B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71071-37600B1	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71071-37620B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072-3V180B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71072-3V340B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072-3V190B0	XKU414,424 ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71027-37150B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
70169-37130B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71027-37160B0	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
70169-37140B0	XKU414,424 ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71073-37870B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	06/2004 - 10/2006	1
70169-37270B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71188A - LEG, FRONT SEAT, RH
71188-37020	XKU414,424	10/2003 - 10/2006	1
71189 - LEG, FRONT SEAT, LH
71189-37030	XKU414,424	10/2003 - 10/2006	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
90386-12053	XKU414,424	10/2003 - 10/2006	2
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37100	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 06/2004	1
71511-37080	XKU414,424	10/2003 - 06/2004	1
71052-37130	XKU414,424 ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ)	06/2004 - 10/2006	1
71052-37110	XKU414,424 ｱﾘ(ｼﾞﾖｼﾕｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ & ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ)	06/2004 - 10/2006	1
71502-37100	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	06/2004 - 10/2006	1
71511-37080	XKU414,424	06/2004 - 10/2006	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37100	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 06/2004	1
71511-37080	XKU414,424	10/2003 - 06/2004	1
71052-37130	XKU414,424 ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ)	06/2004 - 10/2006	1
71052-37110	XKU414,424 ｱﾘ(ｼﾞﾖｼﾕｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ & ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ)	06/2004 - 10/2006	1
71502-37100	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	06/2004 - 10/2006	1
71511-37080	XKU414,424	06/2004 - 10/2006	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-37150	XKU414,424	10/2003 - 10/2006	1
71552-37060	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37020	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
71587-37020	XKU414,424	10/2003 - 10/2006	2
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37060	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
71630-37060	XKU414,424	10/2003 - 10/2006	1
71811F - COVER, RECLINING ADJUSTER, RH
71811-37010B0	XKU414,424 MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72510-37020	XKU414,424	10/2003 - 10/2006	1
72520-37040B0	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37010B0	XKU414,424 MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	2
72525-37010B0	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
73178B - CAP, SEAT BELT ANCHOR COVER
72137-35050B1	XKU414,424 DK.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
Common parts
90119-08134
90119-08C25
90119-10111
90119-10229
90167-40044
90179-08149
Linked diagrams
8401

(0406- )

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ:2ﾆﾝｶﾞｹｼｰﾄ

Part #	Description	Period	Qty

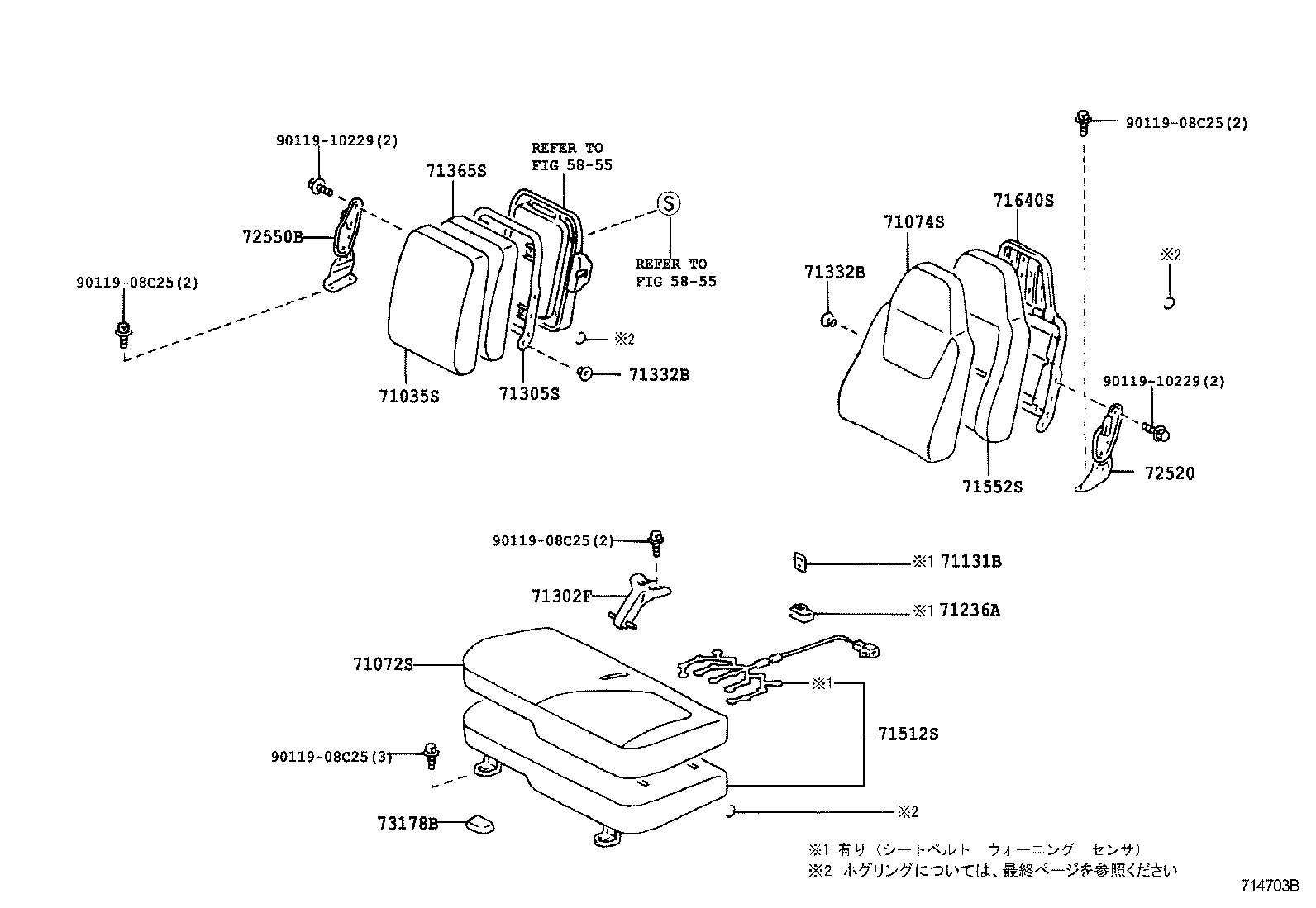

71035S - COVER, FRONT SEAT BACK, CENTER
71095-37230B2	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71095-37210B2	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71095-37400B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-37590B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71071-37600B1	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71071-37620B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072-3V180B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71072-3V340B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072-3V190B0	XKU414,424 ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71027-37150B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
70169-37130B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71027-37160B0	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
70169-37140B0	XKU414,424 ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71073-37870B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	06/2004 - 10/2006	1
70169-37270B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	XKU414,424	10/2003 - 10/2006	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	XKU414,424	10/2003 - 10/2006	1
71302F - HINGE SUB-ASSY, FRONT LH SEAT BACK, LH
71302-37010	XKU414,424	10/2003 - 10/2006	1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37050	XKU414,424	10/2003 - 10/2006	1
71332B - SPACER, REAR SEAT BACK HINGE
71332-37010	XKU414,424	10/2003 - 10/2006	2
71332B - SPACER, REAR SEAT BACK HINGE
71332-37010	XKU414,424	10/2003 - 10/2006	2
71365S - PAD, CENTER SEAT BACK
71365-37040	XKU414,424	10/2003 - 10/2006	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37100	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 06/2004	1
71511-37080	XKU414,424	10/2003 - 06/2004	1
71052-37130	XKU414,424 ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ)	06/2004 - 10/2006	1
71052-37110	XKU414,424 ｱﾘ(ｼﾞﾖｼﾕｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ & ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ)	06/2004 - 10/2006	1
71502-37100	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	06/2004 - 10/2006	1
71511-37080	XKU414,424	06/2004 - 10/2006	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-37150	XKU414,424	10/2003 - 10/2006	1
71552-37060	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37060	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
71630-37060	XKU414,424	10/2003 - 10/2006	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72510-37020	XKU414,424	10/2003 - 10/2006	1
72520-37040B0	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
72550B - ADJUSTER ASSY, RECLINING SEAT, CENTER RH
72510-37030B0	XKU414,424 MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
73178B - CAP, SEAT BELT ANCHOR COVER
72137-35050B1	XKU414,424 DK.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
Common parts
90119-08C25
90119-10229
Linked diagrams
5855

(0310-0406)

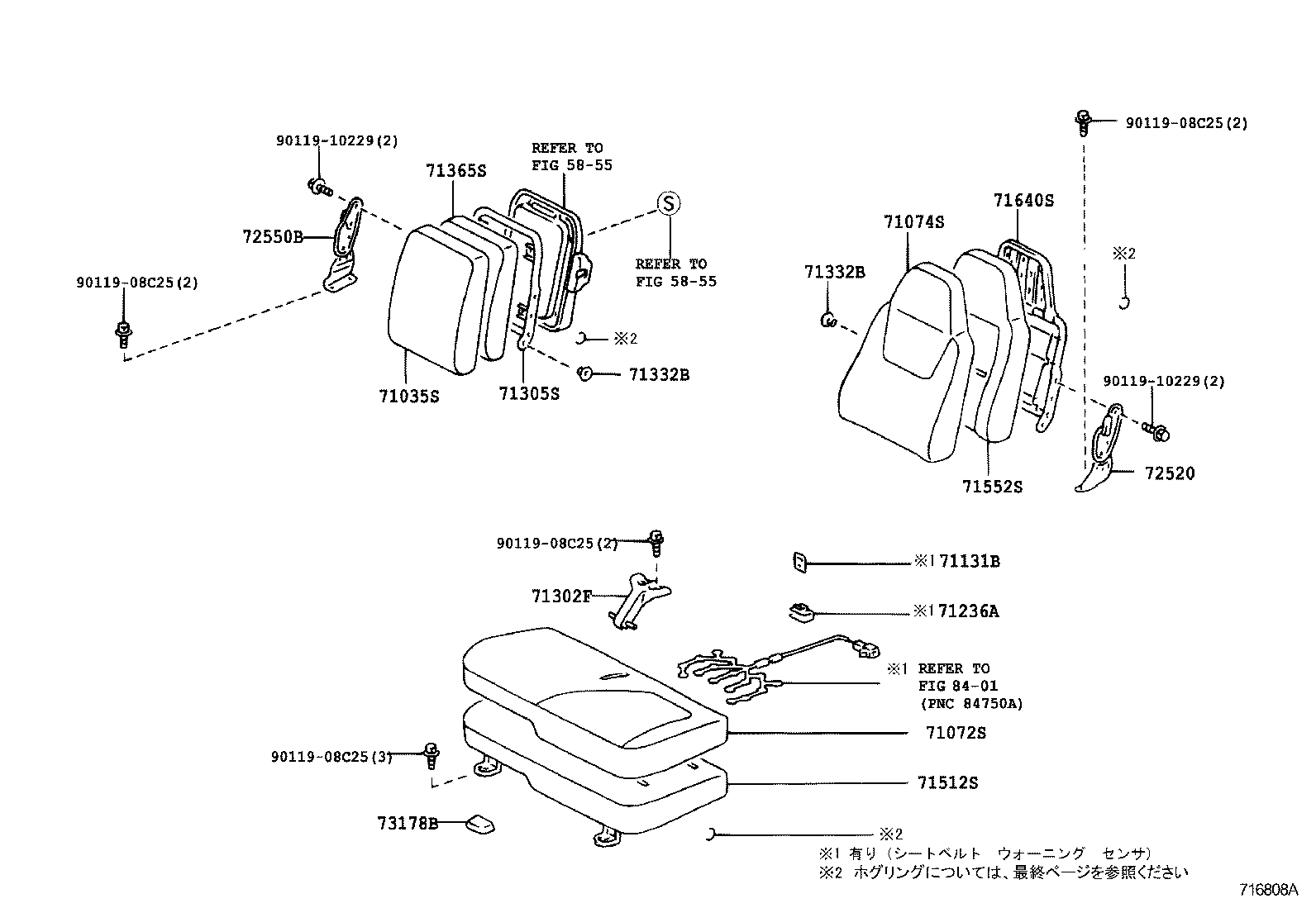

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ:2ﾆﾝｶﾞｹｼｰﾄ

Part #	Description	Period	Qty
71035S - COVER, FRONT SEAT BACK, CENTER
71095-37230B2	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71095-37210B2	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71095-37400B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-37590B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71071-37600B1	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71071-37620B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072-3V180B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71072-3V340B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71072-3V190B0	XKU414,424 ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71027-37150B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
70169-37130B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71027-37160B0	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
70169-37140B0	XKU414,424 ｼｰﾄ = TYPE B-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71073-37870B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	06/2004 - 10/2006	1
70169-37270B0	XKU414,424 ｼｰﾄ = TYPE A-*104 & ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	XKU414,424	10/2003 - 10/2006	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	XKU414,424	10/2003 - 10/2006	1
71302F - HINGE SUB-ASSY, FRONT LH SEAT BACK, LH
71302-37010	XKU414,424	10/2003 - 10/2006	1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37050	XKU414,424	10/2003 - 10/2006	1
71332B - SPACER, REAR SEAT BACK HINGE
71332-37010	XKU414,424	10/2003 - 10/2006	2
71332B - SPACER, REAR SEAT BACK HINGE
71332-37010	XKU414,424	10/2003 - 10/2006	2
71365S - PAD, CENTER SEAT BACK
71365-37040	XKU414,424	10/2003 - 10/2006	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37100	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 06/2004	1
71511-37080	XKU414,424	10/2003 - 06/2004	1
71052-37130	XKU414,424 ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ)	06/2004 - 10/2006	1
71052-37110	XKU414,424 ｱﾘ(ｼﾞﾖｼﾕｾｷ 2ﾆﾝｶﾞｹｼ-ﾄ & ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞ)	06/2004 - 10/2006	1
71502-37100	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	06/2004 - 10/2006	1
71511-37080	XKU414,424	06/2004 - 10/2006	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-37150	XKU414,424	10/2003 - 10/2006	1
71552-37060	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37060	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
71630-37060	XKU414,424	10/2003 - 10/2006	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72510-37020	XKU414,424	10/2003 - 10/2006	1
72520-37040B0	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
72550B - ADJUSTER ASSY, RECLINING SEAT, CENTER RH
72510-37030B0	XKU414,424 MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
73178B - CAP, SEAT BELT ANCHOR COVER
72137-35050B1	XKU414,424 DK.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
Common parts
90119-08C25
90119-10229
Linked diagrams
5855
8401

(0310-0610)

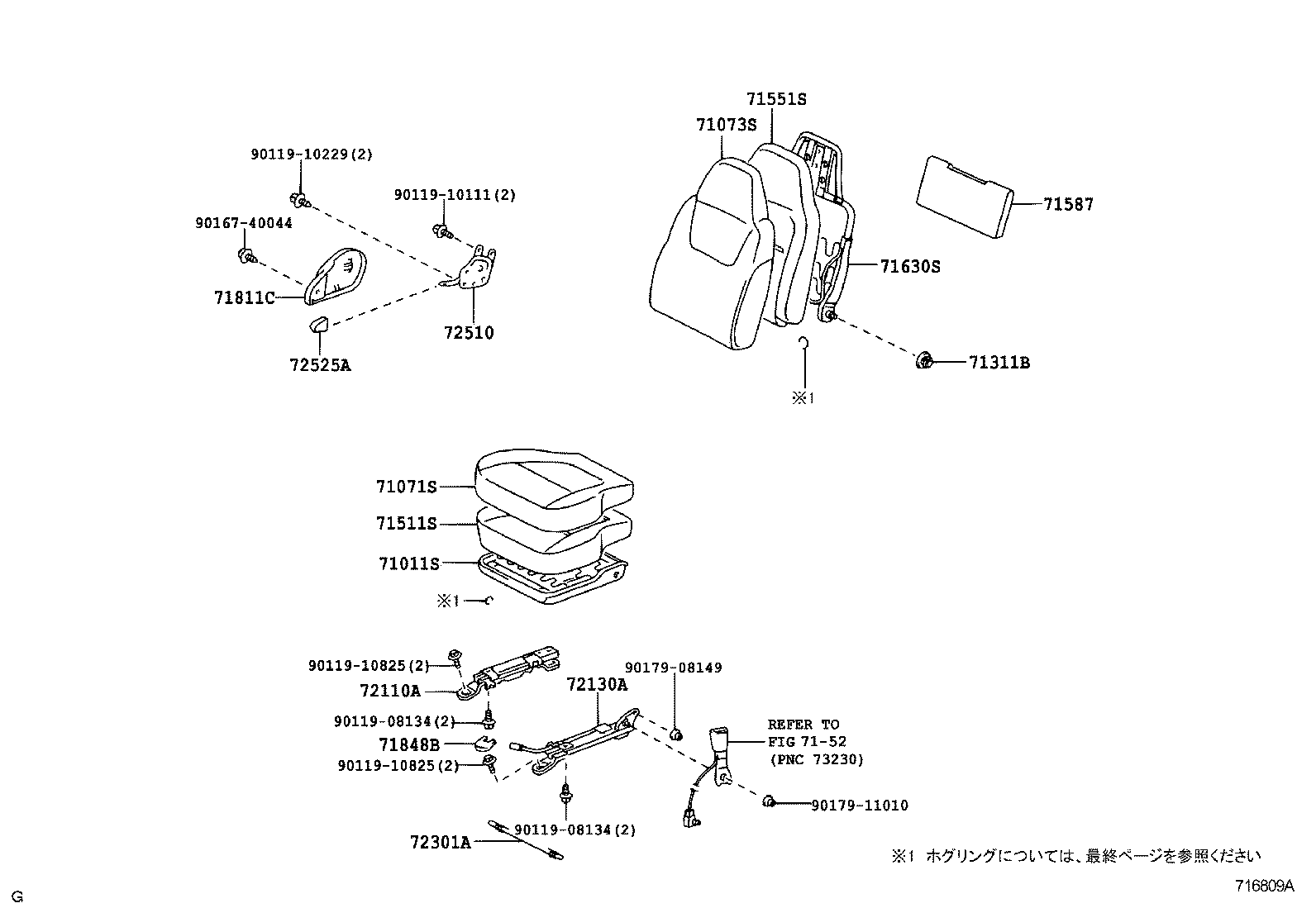

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71610-37010	XKU414,424	10/2003 - 10/2006	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37600B1	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71071-37590B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71071-37620B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-37160B0	XKU414,424 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71027-37150B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	10/2003 - 06/2004	1
71073-37870B0	XKU414,424 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	06/2004 - 10/2006	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
90386-12053	XKU414,424	10/2003 - 10/2006	2
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37080	XKU414,424	10/2003 - 10/2006	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37150	XKU414,424	10/2003 - 10/2006	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37020	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ)	10/2003 - 10/2006	1
71587-37020	XKU414,424	10/2003 - 10/2006	2
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-37060	XKU414,424	10/2003 - 10/2006	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37010B0	XKU414,424 MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
71848B - CAP, SEAT ADJUSTER COVER, RH
72137-37010B0	XKU414,424 DK.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37020	XKU414,424	10/2003 - 10/2006	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37020	XKU414,424	10/2003 - 10/2006	1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030	XKU414,424	10/2003 - 10/2006	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-37020	XKU414,424	10/2003 - 10/2006	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37010B0	XKU414,424 MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	2
72525-37010B0	XKU414,424 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ),MD.CHARCOAL,TRIM1#	10/2003 - 10/2006	1
Common parts
90119-08134
90119-10111
90119-10229
90119-10825
90167-40044
90179-08149
90179-11010
Linked diagrams
7152

(0310- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

XKU414-TQFMW3 (2003)

(0310-0610)

(0406- )

(0310-0406)

(0310-0610)

(0310- )

Part Price Details
