XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

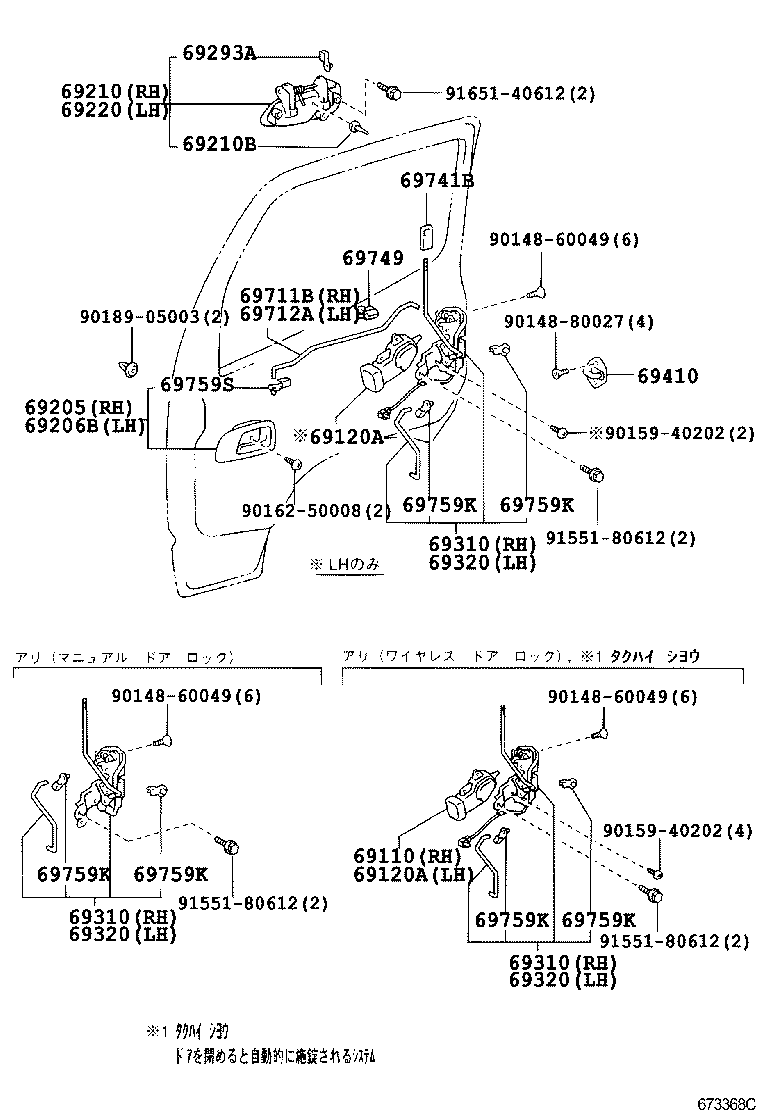

Click highlighted areas on diagram

diagram 69110 69120A 69120A 69205 69206B 69210 69210B 69220 69293A 69310 69310 69310 69320 69320 69320 69410 69711B 69712A 69741B 69749 69759K 69759K 69759K 69759K 69759K 69759K 69759S 9014860049 9014860049 9014860049 9014880027 9015940202 9015940202 9016250008 9018905003 9155180612 9155180612 9155180612 9165140612
Part # Description Qty Price
69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH
69110-37060

XKU414,424

 1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-37060

XKU414,424

 1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-37060

XKU414,424

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-37020

XKU414,424

塗装不要

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04015

XKU414,424

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-37020

XKU414,424

塗装不要

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12050

XKU414,424

右側

 1
69293-12060

XKU414,424

左側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-37070

XKU414,424

ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ)

 1
69310-37080

XKU414,424

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69310-37090

XKU414,424

ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-37070

XKU414,424

ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ)

 1
69310-37080

XKU414,424

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69310-37090

XKU414,424

ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-37070

XKU414,424

ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ)

 1
69310-37080

XKU414,424

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69310-37090

XKU414,424

ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-37060

XKU414,424

 1
69320-37110

XKU414,424

ﾀｸﾊｲ ｼﾖｳ

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-37060

XKU414,424

 1
69320-37110

XKU414,424

ﾀｸﾊｲ ｼﾖｳ

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-37060

XKU414,424

 1
69320-37110

XKU414,424

ﾀｸﾊｲ ｼﾖｳ

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20110

XKU414,424

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-37010

XKU414,424

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-37010

XKU414,424

 1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-12040B3

XKU414,424

MD.CHARCOAL,TRIM1#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12070

XKU414,424

 2
69759K - SNAP, DOOR LOCK CONTROL LINK
69759-24020

XKU414,424

ﾌﾞﾙｰ

 1
69759-20040

XKU414,424

ｲｴﾛｰ

 1
69759-24010

XKU414,424

ﾅﾁｭﾗﾙ

 1
69759-20050

XKU414,424

ﾌﾞﾗｳﾝ

 1
69759K - SNAP, DOOR LOCK CONTROL LINK
69759-24020

XKU414,424

ﾌﾞﾙｰ

 1
69759-20040

XKU414,424

ｲｴﾛｰ

 1
69759-24010

XKU414,424

ﾅﾁｭﾗﾙ

 1
69759-20050

XKU414,424

ﾌﾞﾗｳﾝ

 1
69759K - SNAP, DOOR LOCK CONTROL LINK
69759-24020

XKU414,424

ﾌﾞﾙｰ

 1
69759-20040

XKU414,424

ｲｴﾛｰ

 1
69759-24010

XKU414,424

ﾅﾁｭﾗﾙ

 1
69759-20050

XKU414,424

ﾌﾞﾗｳﾝ

 1
69759K - SNAP, DOOR LOCK CONTROL LINK
69759-24020

XKU414,424

ﾌﾞﾙｰ

 1
69759-20040

XKU414,424

ｲｴﾛｰ

 1
69759-24010

XKU414,424

ﾅﾁｭﾗﾙ

 1
69759-20050

XKU414,424

ﾌﾞﾗｳﾝ

 1
69759K - SNAP, DOOR LOCK CONTROL LINK
69759-24020

XKU414,424

ﾌﾞﾙｰ

 1
69759-20040

XKU414,424

ｲｴﾛｰ

 1
69759-24010

XKU414,424

ﾅﾁｭﾗﾙ

 1
69759-20050

XKU414,424

ﾌﾞﾗｳﾝ

 1
69759K - SNAP, DOOR LOCK CONTROL LINK
69759-24020

XKU414,424

ﾌﾞﾙｰ

 1
69759-20040

XKU414,424

ｲｴﾛｰ

 1
69759-24010

XKU414,424

ﾅﾁｭﾗﾙ

 1
69759-20050

XKU414,424

ﾌﾞﾗｳﾝ

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-22050

XKU414,424

右側

 1
69759-22040

XKU414,424

左側

 1
Common parts
90148-60049
90148-80027
90159-40202
90162-50008
90189-05003
91551-80612
91651-40612
