XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv

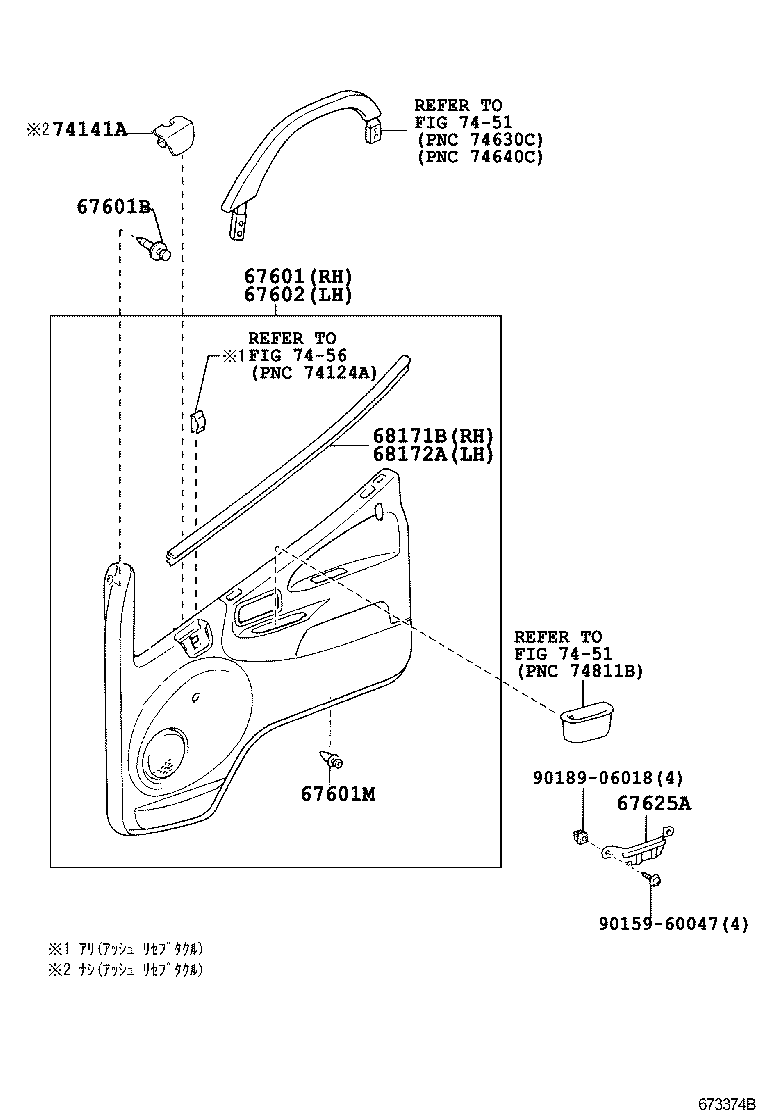

ILLUST NO. 2 OF 3(0310- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-37080B4 |
XKU414,424 MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-37090B4 |
XKU414,424 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-37120B0 |
XKU414 ﾅｼ(ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-37090B4 |
XKU414,424 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-37080B4 |
XKU414,424 MD.CHARCOAL,TRIM15 |
1 | ||
| 67610-37130B0 |
XKU414 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ﾅｼ(ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07071B6 |
XKU414,424 MD.CHARCOAL,TRIM1# |
2 | ||
| 67601M - RETAINER, DOOR TRIM, NO.2 | ||||
| 90467-10188 |
XKU414,424 |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-37130B4 |
XKU414,424 MD.CHARCOAL,TRIM15 |
1 | ||
| 67620-37130B4 |
XKU414,424 MD.CHARCOAL,TRIM1# |
1 | ||
| 67620-37140B4 |
XKU414,424 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67620-37170B0 |
XKU414,424 ﾅｼ(ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67620-37180B0 |
XKU414,424 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ﾅｼ(ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ),MD.CHARCOAL,TRIM1# |
1 | ||
| 67620-37140B4 |
XKU414,424 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM15 |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-26010 |
XKU414,424 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-37011 |
XKU414,424 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-37011 |
XKU414,424 |
1 | ||
| 74141A - GARNISH, FRONT ASH RECEPTACLE, NO.1 | ||||
| 74141-25010B0 |
XKU414 ﾅｼ(ｳﾝﾃﾝｾｷ & ｼﾞｮｼｭｾｷ ｱﾂｼﾕ ﾘｾﾌﾟﾀｸﾙ),MD.CHARCOAL,TRIM1# |
2 | ||
| 74141-25010B0 |
XKU414,424 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||

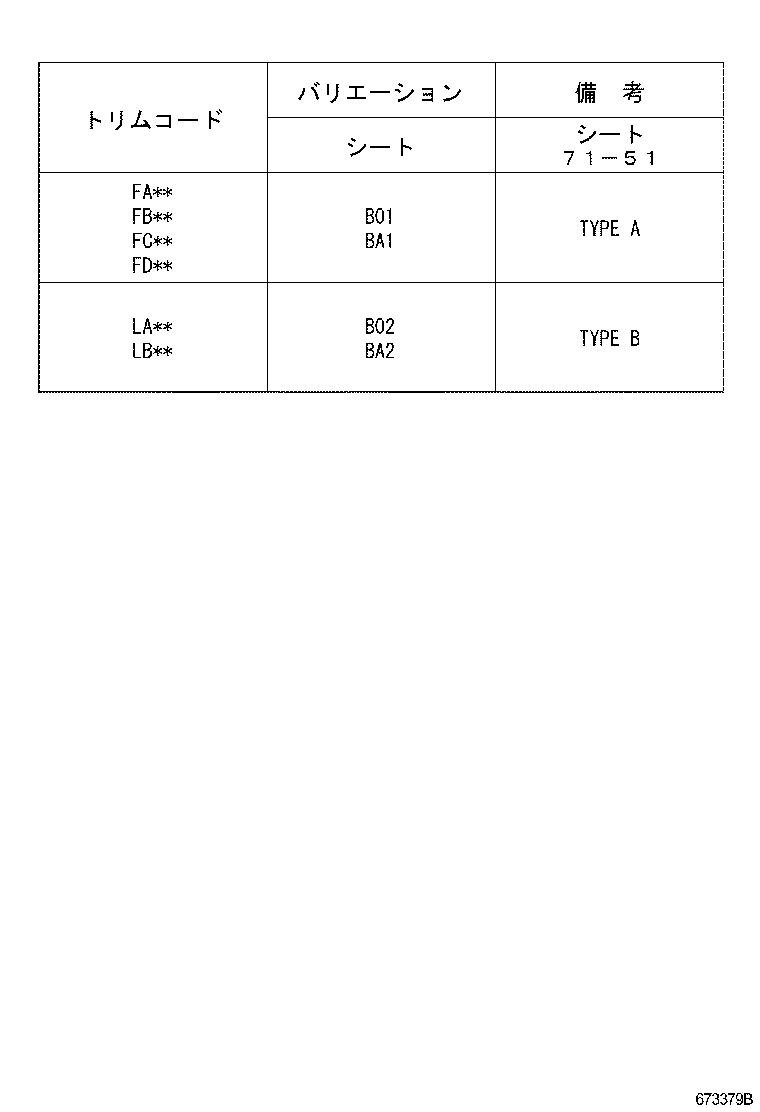

ILLUST NO. 3 OF 3(0310- )
ﾄﾘﾑｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|

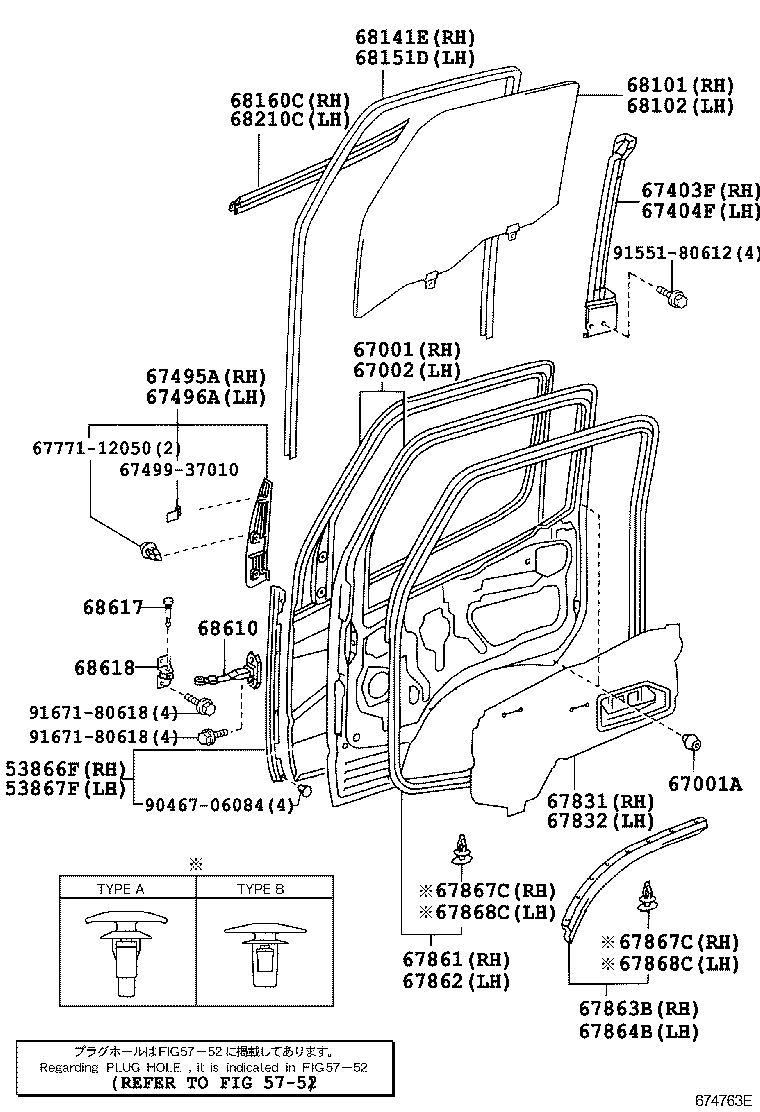

ILLUST NO. 1 OF 3(0310- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53866F - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-37040 |
XKU414,424 |
1 | ||
| 53867F - SEAL, FR FENDER TO COWL SIDE, LH | ||||
| 53867-37030 |
XKU414,424 |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-37081 |
XKU414,424 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09031 |
XKU414,424 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-37091 |
XKU414,424 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-37020 |
XKU414,424 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-37020 |
XKU414,424 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-37010 |
XKU414,424 |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-37010 |
XKU414,424 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-37010 |
XKU414,424 |
1 | ||
| 67831-37040 |
XKU414,424 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-37050 |
XKU414,424 |
1 | ||
| 67832-37010 |
XKU414,424 |
1 | ||
| 67832-37020 |
XKU414,424 ｱﾘ(AM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ 1ｽﾋﾟ-ｶ) |
1 | ||
| 67832-37060 |
XKU414,424 ｱﾘ(AM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ 1ｽﾋﾟ-ｶ) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-37021 |
XKU414,424 |
1 | ||
| 67861-37020 |
XKU414,424 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-37021 |
XKU414,424 |
1 | ||
| 67862-37020 |
XKU414,424 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-37010 |
XKU414,424 |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-37010 |
XKU414,424 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
35 | ||
| 67867-89103 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
35 | ||
| 67867-89103 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
35 | ||
| 67867-89103 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
XKU414,424 TYPE A:ｲﾗｽﾄ参照 |
35 | ||
| 67867-89103 |
XKU414,424 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-37130 |
XKU414,424 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-37140 |
XKU414,424 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-37030 |
XKU414,424 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-37030 |
XKU414,424 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-37010 |
XKU414,424 |
1 | ||
| 68161-37011 |
XKU414,424 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-37011 |
XKU414,424 |
1 | ||
| 68162-37010 |
XKU414,424 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-37040 |
XKU414,424 ﾀｸﾊｲ ｼﾖｳ |
2 | ||
| 68610-37030 |
XKU414,424 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90K00 |
XKU414,424 |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-37020 |
XKU414,424 |
2 | ||
| Common parts | ||||
| 67499-37010 | ||||
| 67771-12050 | ||||
| 90467-06084 | ||||
| 91551-80612 | ||||
| 91671-80618 | ||||
| Linked diagrams | ||||
| 5752 | ||||
