XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

Click highlighted areas on diagram

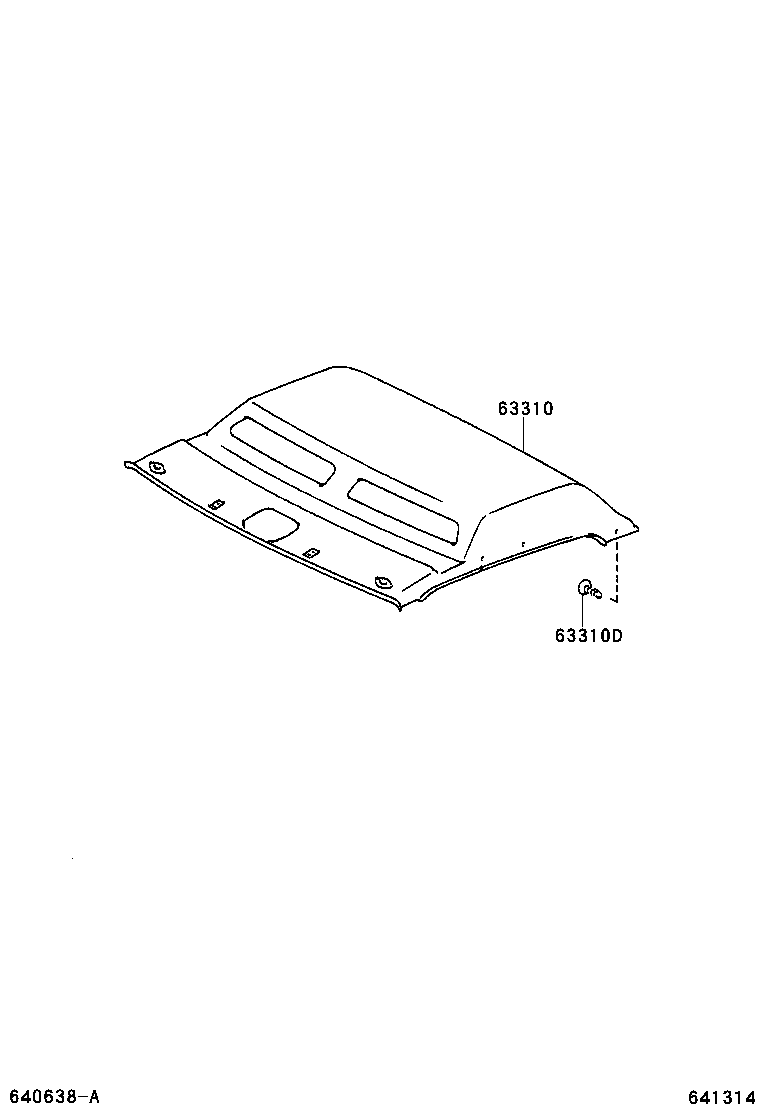

diagram 63310 63310D
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-37101B0

XKU414,424

MEDIUM CHARCOAL,TRIM1#

 1
63310-37100B0

XKU414,424

MEDIUM CHARCOAL,TRIM1#

 1
63310-37180B0

XKU414,424

ｱﾘ(ｹｲｺｳﾄｳ ﾙ-ﾑﾗﾝﾌﾟ),MEDIUM CHARCOAL,TRIM1#

 1
63310-37181B0

XKU414,424

ｱﾘ(ｹｲｺｳﾄｳ ﾙ-ﾑﾗﾝﾌﾟ),MEDIUM CHARCOAL,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-05101B2

XKU414,424

MD.CHARCOAL,TRIM1#

 9
