XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

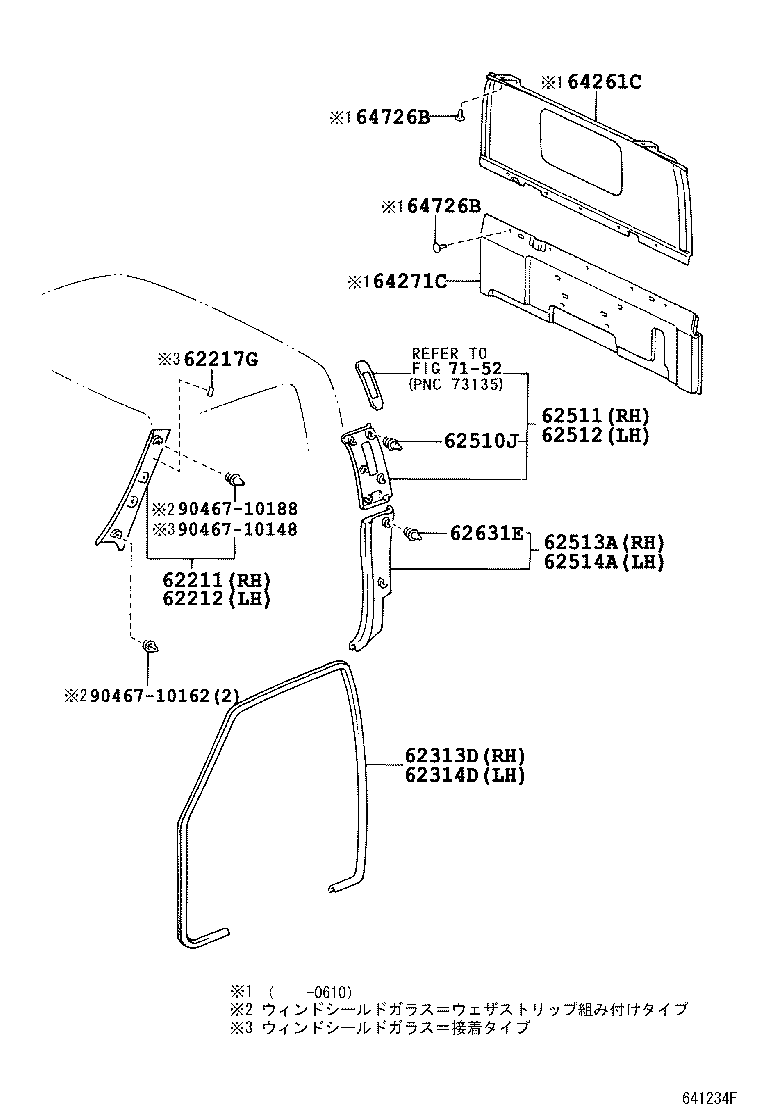

Click highlighted areas on diagram

diagram 62211 62212 62217G 62313D 62314D 62510J 62511 62512 62513A 62514A 62631E 64261C 64271C 64726B 64726B 7152 9046710148 9046710162 9046710188
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62211-37011B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-37011B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62212-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37041B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-37041B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62510J - RETAINER, QUARTER TRIM
90467-10188

XKU414,424

 10
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62511-37011B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62512-37011B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
62631E - RETAINER, QUATER TRIM
90467-10161

XKU414,424

 4
64261C - GARNISH, BACK PANEL, UPPER
64261-37040B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
64261-37041B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
64271C - TRIM, BACK PANEL
64271-37160B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
64271-37080B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
64271-37161B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
64726B - CLIP, DECK REAR TRIM
64726-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 14
64726B - CLIP, DECK REAR TRIM
64726-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 14
Common parts
90467-10148
90467-10162
90467-10188
Linked diagrams
7152
