Toyota Dyna/toyoace hv XKU414 ROOF PANEL & BACK PANEL

XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0310- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53709D - BRACKET SUB-ASSY, AIR CLEANER INLET SEAL
53709-37070	XKU414,424	10/2003 - 08/2006	1
53764A - BRACKET, AIR CLEANER INLET, NO.1
53764-37060	XKU414,424	10/2003 - 10/2006	1
53765B - BRACKET, AIR CLEANER INLET, NO.2
53765-37070	XKU414,424	10/2003 - 10/2006	1
53773B - BRACKET, AIR CLEANER INLET, NO.2
53773-37100	XKU414,424	10/2003 - 08/2006	1
58993C - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-37030	XKU414,424	10/2003 - 04/2006	1
58993-37030	XKU414,424	05/2006 - 10/2006	1

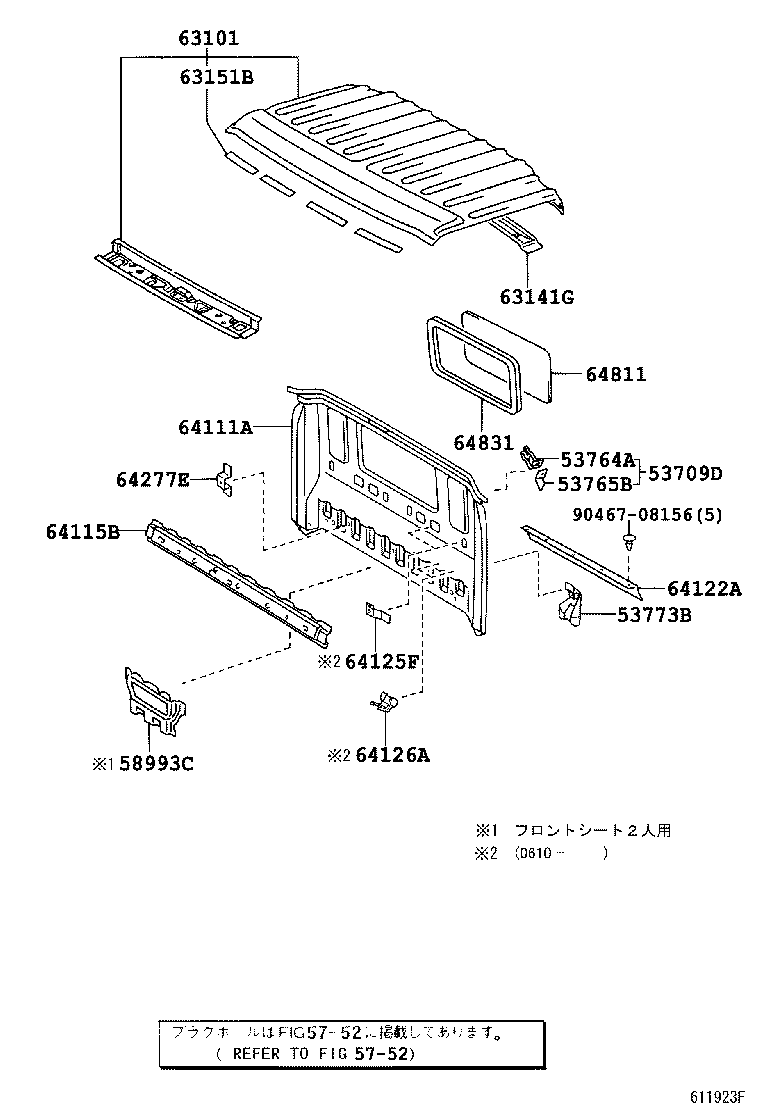

63101 - PANEL SUB-ASSY, ROOF
63101-37310	XKU414,424	10/2003 - 10/2006	1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-37120	XKU414,424	10/2003 - 10/2006	1
63151B - SEAL, ROOF PANEL REINFORCEMENT
63151-37040	XKU414,424	10/2003 - 10/2006	4
64111A - PANEL, BACK
64111-37531	XKU414,424	10/2003 - 08/2006	1
64115B - REINFORCEMENT, BACK PANEL
64115-37132	XKU414,424	04/2006 - 10/2006	1
64115-37131	XKU414,424	10/2003 - 03/2006	1
64122A - BAFFLE, DUST REAR BODY
64122-37170	XKU414,424	10/2003 - 10/2006	1
64277E - BRACKET, BACK PANEL TRIM, LOWER
64277-37010	XKU414,424	10/2003 - 08/2006	3
64811 - GLASS, BACK WINDOW
64811-37150	XKU414,424 *TEM,厚さ=3.5,ｸﾞﾘｰﾝ	10/2003 - 10/2006	1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-37060	XKU414,424	10/2003 - 10/2006	1
Common parts
90467-08156
Linked diagrams
5752

ILLUST NO. 2 OF 2(0310- )

Click highlighted areas on diagram

ｱﾘ(ﾙ-ﾌｳｲﾝﾄﾞｳﾃﾞﾌﾚｸﾀ)

Part #	Description	Period	Qty

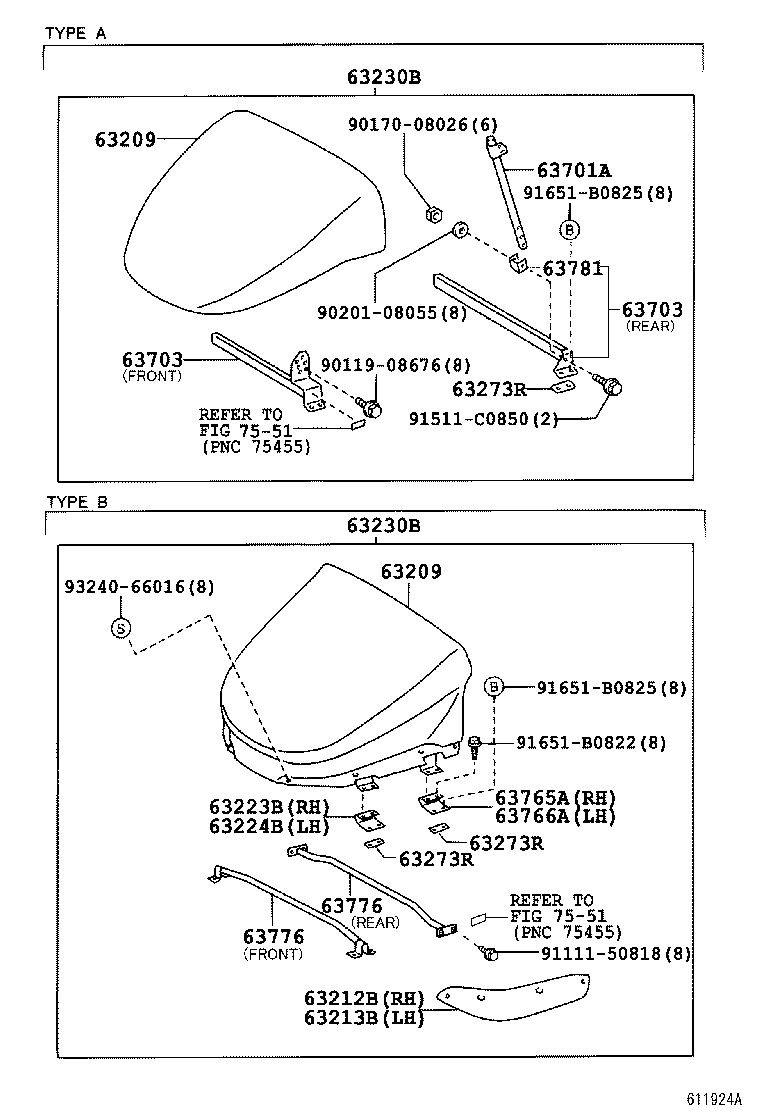

63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-37030	XKU414,424 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	10/2003 - 10/2006	1
63209-37050	XKU414,424 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	10/2003 - 10/2006	1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-37030	XKU414,424 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	10/2003 - 10/2006	1
63209-37050	XKU414,424 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	10/2003 - 10/2006	1
63212B - PANEL, ROOF WIND DEFLECTOR
63212-37020	XKU414,424	10/2003 - 10/2006	1
63213B - PANEL, SLIDING ROOF, INNER
63213-37020	XKU414,424	10/2003 - 10/2006	1
63223B - BRACKET, ROOF WIND DEFLECTOR, RH
63223-37020	XKU414,424	10/2003 - 10/2006	1
63224B - BRACKET, ROOF WIND DEFLECTOR, LH
63224-37020	XKU414,424	10/2003 - 10/2006	1
63230B - PANEL ASSY, ROOF WIND DEFLECTOR
63230-37040	XKU414,424 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	10/2003 - 10/2006	1
63230-37030	XKU414,424 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	10/2003 - 10/2006	1
63230B - PANEL ASSY, ROOF WIND DEFLECTOR
63230-37040	XKU414,424 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	10/2003 - 10/2006	1
63230-37030	XKU414,424 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	10/2003 - 10/2006	1
63273R - PACKING, ROOF WINDOW DEFRECTOR
63273-37020	XKU414,424	10/2003 - 10/2006	4
63273R - PACKING, ROOF WINDOW DEFRECTOR
63273-37020	XKU414,424	10/2003 - 10/2006	4
63273R - PACKING, ROOF WINDOW DEFRECTOR
63273-37020	XKU414,424	10/2003 - 10/2006	4
63701A - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT
63701-37040	XKU414,424 右側	10/2003 - 10/2006	1
63702-37040	XKU414,424 左側	10/2003 - 10/2006	1
63703 - BAR SUB-ASSY, ROOF AIR DEFLECTOR, NO.1
63704-37030	XKU414,424 ﾘﾔ	10/2003 - 10/2006	1
63703-37030	XKU414,424 ﾌﾛﾝﾄ	10/2003 - 10/2006	1
63703 - BAR SUB-ASSY, ROOF AIR DEFLECTOR, NO.1
63704-37030	XKU414,424 ﾘﾔ	10/2003 - 10/2006	1
63703-37030	XKU414,424 ﾌﾛﾝﾄ	10/2003 - 10/2006	1
63765A - BRACKET, ROOF AIR DEFLECTOR, RH
63765-37040	XKU414,424	10/2003 - 10/2006	1
63766A - BRACKET, ROOF AIR DEFLECTOR, LH
63766-37040	XKU414,424	10/2003 - 10/2006	1
63776 - BAR, ROOF AIR DEFLECTOR, NO.2
63776-37100	XKU414,424 ﾘﾔ	10/2003 - 10/2006	1
63776-37090	XKU414,424 ﾌﾛﾝﾄ	10/2003 - 10/2006	1
63776 - BAR, ROOF AIR DEFLECTOR, NO.2
63776-37100	XKU414,424 ﾘﾔ	10/2003 - 10/2006	1
63776-37090	XKU414,424 ﾌﾛﾝﾄ	10/2003 - 10/2006	1
63781 - STAY, ROOF AIR DEFLECTOR
63781-37030	XKU414,424	10/2003 - 10/2006	2
Common parts
90119-08676
90170-08026
90201-08055
91111-50818
91511-C0850
91651-B0822
91651-B0825
93240-66016
Linked diagrams
7551

ILLUST NO. 2 OF 2(0310- )

Click highlighted areas on diagram

ｱﾘ(ﾙ-ﾌﾗﾂｸ)

Part #	Description	Period	Qty

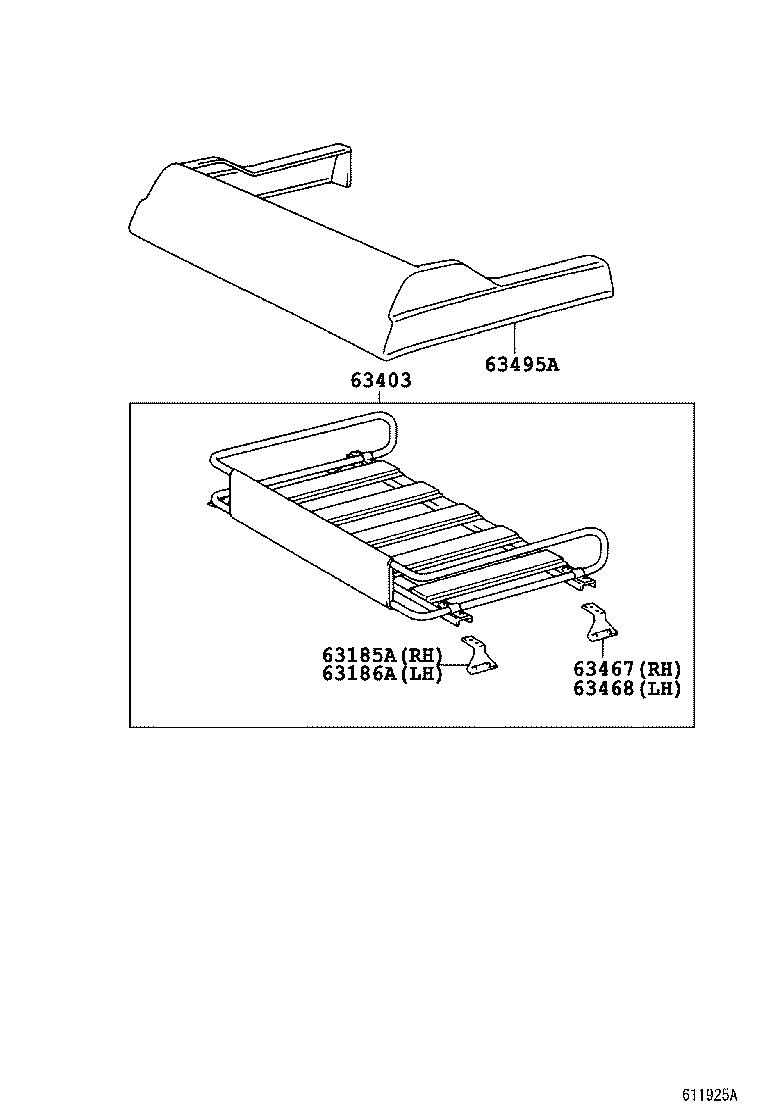

63185A - BRACKET, ROOF RACK, FRONT RH
63185-37040	XKU414,424	10/2003 - 10/2006	1
63186A - BRACKET, ROOF RACK, FRONT LH
63186-37040	XKU414,424	10/2003 - 10/2006	1
63403 - DECK SUB-ASSY, ROOF RACK
63403-37020	XKU414,424	10/2003 - 10/2006	1
63467 - BRACKET, ROOF RACK, REAR RH
63467-37020	XKU414,424	10/2003 - 10/2006	1
63468 - BRACKET, ROOF RACK, REAR LH
63467-37020	XKU414,424	10/2003 - 10/2006	1
63495A - COVER, ROOF RACK LEG, CENTER
63495-37031	XKU414,424	10/2003 - 10/2006	1
