Toyota Dyna/toyoace hv XKU414 SIDE MEMBER

Part #	Description	Period	Qty
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-37050	XKU414,424	10/2003 - 10/2006	1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-37100	XKU414,424	10/2003 - 10/2006	1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61131-37071	XKU414,424	10/2003 - 09/2004	1
61131-37072	XKU414,424	09/2004 - 10/2006	1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61132-37051	XKU414,424 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸｱﾝﾃﾅ)	10/2003 - 09/2004	1
61132-37052	XKU414,424 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸｱﾝﾃﾅ)	09/2004 - 10/2006	1
61132-37072	XKU414,424	09/2004 - 10/2006	1
61132-37071	XKU414,424	10/2003 - 09/2004	1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-37031	XKU414,424	10/2003 - 10/2006	1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-37011	XKU414,424	10/2003 - 10/2006	1
61231 - RAIL, ROOF SIDE, INNER RH
61231-37060	XKU414,424	10/2003 - 10/2006	1
61231 - RAIL, ROOF SIDE, INNER RH
61231-37060	XKU414,424	10/2003 - 10/2006	1
61232 - RAIL, ROOF SIDE, INNER LH
61232-37060	XKU414,424	10/2003 - 10/2006	1
61232 - RAIL, ROOF SIDE, INNER LH
61232-37060	XKU414,424	10/2003 - 10/2006	1
61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61245-37020	XKU414,424	10/2003 - 10/2006	1
61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61246-37010	XKU414,424	10/2003 - 10/2006	1
61451B - PLATE, STEP, LOWER RH
61451-37010	XKU414,424	10/2003 - 10/2006	1
61452C - PLATE, STEP, LOWER LH
61452-37010	XKU414,424	10/2003 - 10/2006	1
61455A - RETAINER, FRONT STEP, RH
61455-37010	XKU414,424	10/2003 - 10/2006	1
61456B - RETAINER, FRONT STEP, LH
61456-37010	XKU414,424	10/2003 - 10/2006	1
61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61503-37040	XKU414,424	10/2003 - 10/2006	1
61503-37030	XKU414,424 ｱﾘ(ﾄﾘﾑ)	10/2003 - 10/2006	1
61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61504-37020	XKU414,424	10/2003 - 10/2006	1
61515B - EXTENSION, QUARTER LOCK PILLAR, RH
61515-37010	XKU414,424	10/2003 - 10/2006	1
61516 - EXTENSION, QUARTER LOCK PILLAR, LH
61516-37010	XKU414,424	10/2003 - 10/2006	1
61575B - PLATE, CAB REAR PILLAR, UPPER RH
61575-37010	XKU414,424	10/2003 - 10/2006	1
61576 - PLATE, CAB REAR PILLAR, UPPER LH
61576-37010	XKU414,424	10/2003 - 10/2006	1
61661D - EXTENSION, QUARTER PANEL TO UPPER BACK, RH
61661-37020	XKU414,424	10/2003 - 10/2006	1
61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH
61662-37020	XKU414,424	10/2003 - 10/2006	1
64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH
61531-37040	XKU414,424	10/2003 - 10/2006	1
61531-37010	XKU414,424 ｱﾘ(ﾄﾘﾑ)	10/2003 - 10/2006	1
64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH
61532-37010	XKU414,424	10/2003 - 10/2006	1
61532-37021	XKU414,424 ｱﾘ(ﾄﾘﾑ)	10/2003 - 10/2006	1
64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH
61611-37150	XKU414,424	10/2003 - 09/2004	1
61611-37151	XKU414,424	09/2004 - 10/2006	1
64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH
61612-37120	XKU414,424	10/2003 - 09/2004	1
61612-37121	XKU414,424	09/2004 - 10/2006	1

XKU414-TQFMW3 (2003)

ILLUST NO. 1 OF 2(0310-0610)

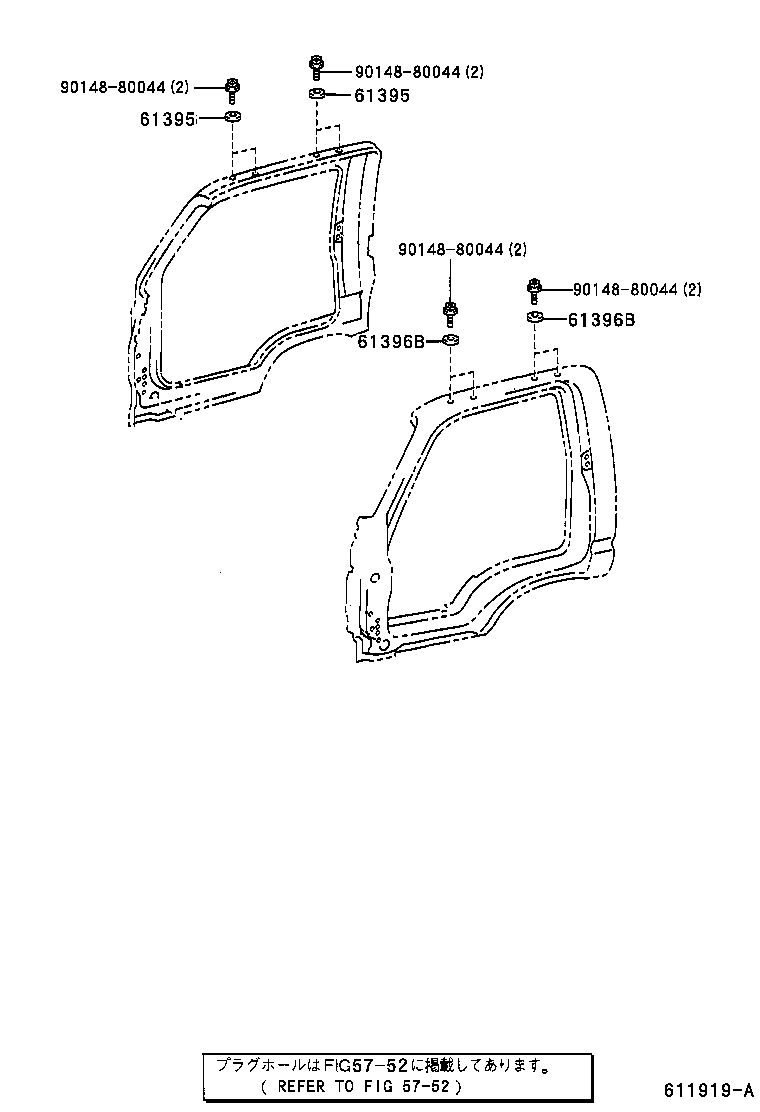

ILLUST NO. 2 OF 2(0310- )

Part Price Details

Part #	Description	Period	Qty
61395 - SEAL, CENTER BODY PILLAR, RH
61395-37010	XKU414,424	10/2003 - 10/2006	4
61395 - SEAL, CENTER BODY PILLAR, RH
61395-37010	XKU414,424	10/2003 - 10/2006	4
61396B - SEAL, CENTER BODY PILLAR, LH
61395-37010	XKU414,424	10/2003 - 10/2006	4
61396B - SEAL, CENTER BODY PILLAR, LH
61395-37010	XKU414,424	10/2003 - 10/2006	4
Common parts
90148-80044
Linked diagrams
5752
