XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )6F

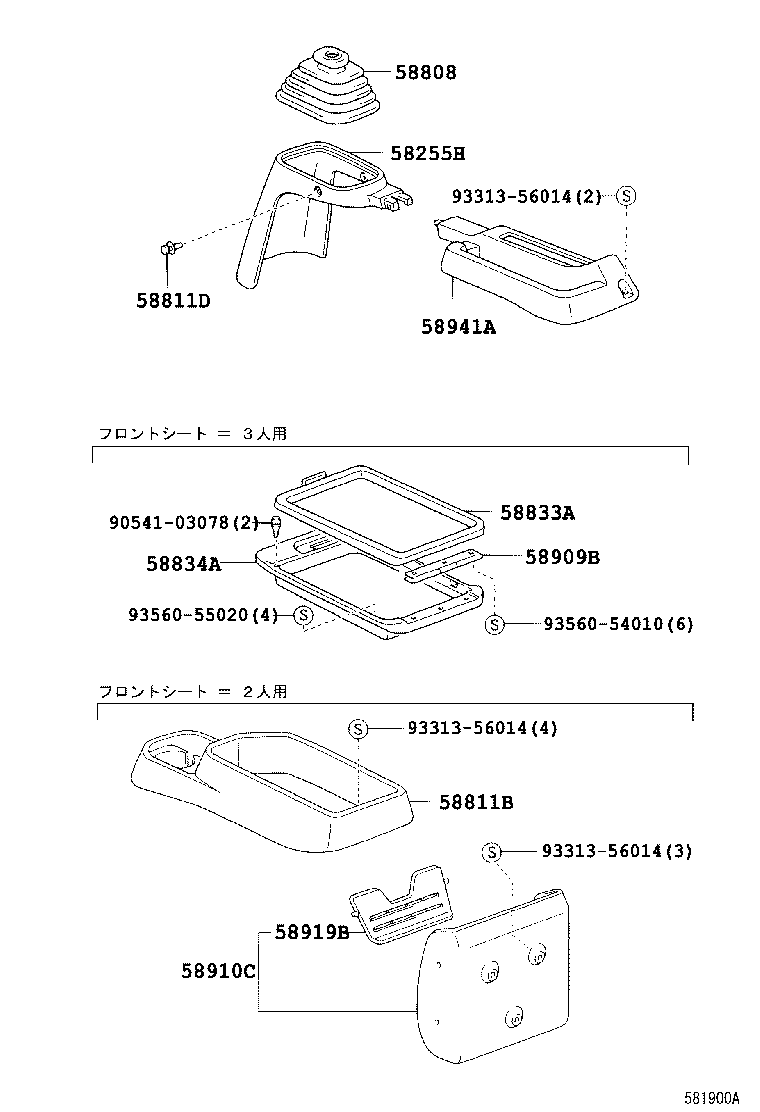

Click highlighted areas on diagram

diagram 58255H 58808 58811B 58811D 58833A 58834A 58909B 58910C 58919B 58941A 9054103078 9331356014 9331356014 9331356014 9356054010 9356055020
Part # Description Qty Price
58255H - COVER, SHIFT LEVER BOOT
58255-37020B0

XKU414,424

DK.CHARCOAL,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-37020B0

XKU414,424

DK.CHARCOAL,TRIM1#

 1
58811B - BOX, CONSOLE
58811-37040B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-07191B0

XKU414,424

DK.CHARCOAL,TRIM1#

 3
58833A - COVER, CONSOLE, UPPER
58833-37040B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
58834A - COVER, CONSOLE, LOWER
58834-37030B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
58909B - RETAINER SUB-ASSY, CONSOLE COMPARTMENT
58909-37020

XKU414,424

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-37010B1

XKU414,424

MD.CHARCOAL,TRIM1#

 1
58919B - PLATE, CONSOLE BOX
58919-37030B1

XKU414,424

MD.CHARCOAL,TRIM1#

 2
58941A - COVER, PARKING BRAKE HOLE
58941-37030B0

XKU414,424

DK.CHARCOAL,TRIM1#

 1
Common parts
90541-03078
93313-56014
93560-54010
93560-55020
