XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

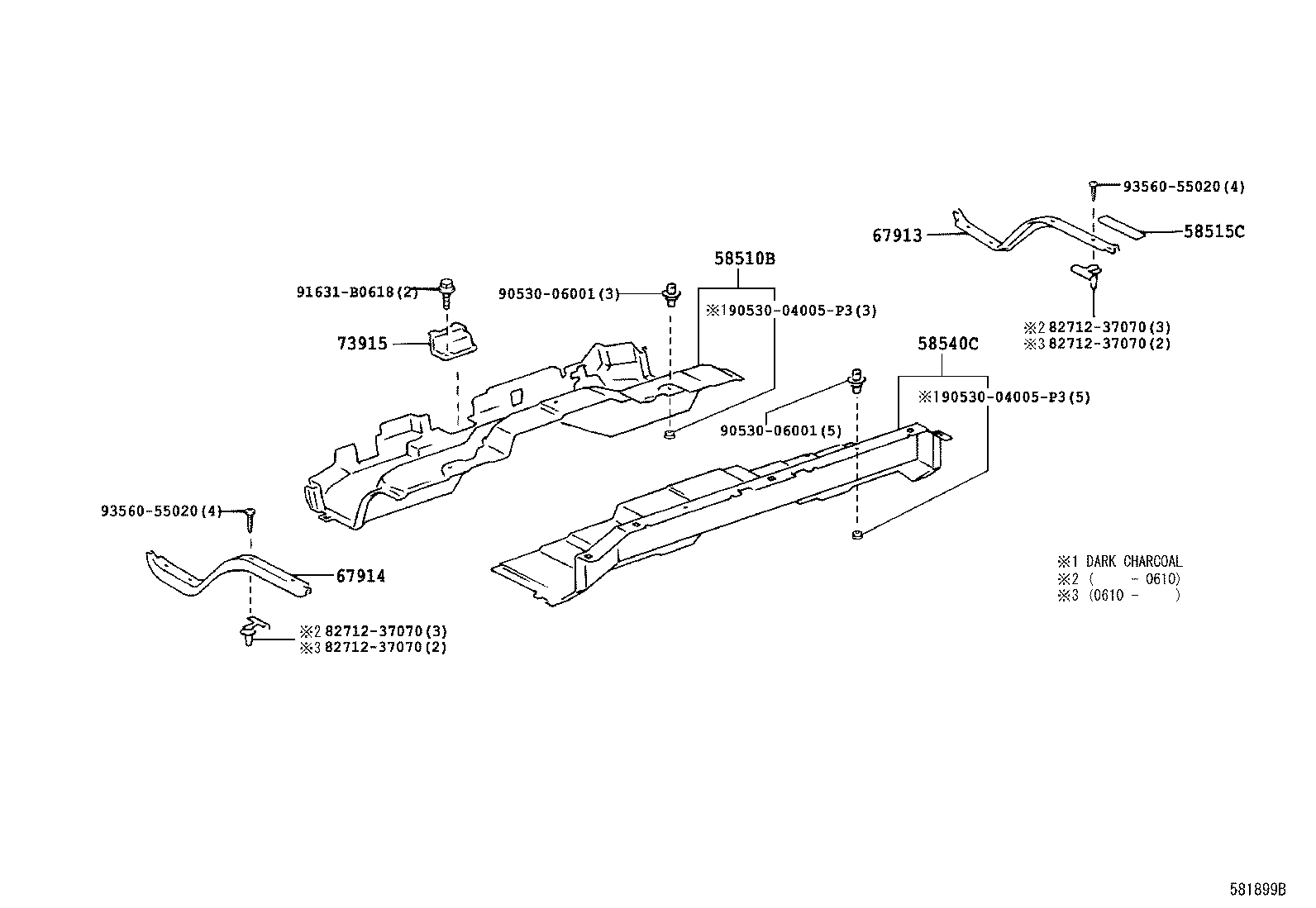

Click highlighted areas on diagram

diagram 58510B 58515C 58540C 67913 67914 73915 8271237070 8271237070 8271237070 8271237070 9053004005P3 9053004005P3 9053006001 9053006001 91631B0618 9356055020 9356055020
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-37760B1

XKU414,424

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ & SRS ｴｱﾊﾞﾂｸﾞ & ｵﾙｶﾞﾝｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58510-37750B2

XKU414,424

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ & ｵﾙｶﾞﾝｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58510-37B30B0

XKU414

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ & SRS ｴｱﾊﾞﾂｸﾞ & ﾂﾘｻｹﾞｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58510-37B20B0

XKU414

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ & ﾂﾘｻｹﾞｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58510-3V170B0

XKU414,424

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ & ｵﾙｶﾞﾝｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58510-3V190B0

XKU414,424

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ & SRS ｴｱﾊﾞﾂｸﾞ & ｵﾙｶﾞﾝｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58510-37B00B0

XKU414

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ & ﾂﾘｻｹﾞｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58510-37B10B0

XKU414

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ & SRS ｴｱﾊﾞﾂｸﾞ & ﾂﾘｻｹﾞｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ),DARK CHARCOAL,TRIM1#

 1
58515C - MAT, FRONT FLOOR, REAR NO.1
58515-37080B1

XKU414,424

MD.CHARCOAL,TRIM1#

 1
58540C - MAT ASSY, FLOOR, REAR
58540-37080B1

XKU414,424

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=03S ﾖｳ),DARK CHARCOAL,TRIM1#

 1
58540-37070B1

XKU414,424

ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ),DARK CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-37010B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
73915 - COVER, SEAT AIR BAG NO.1, RH
73915-37010

XKU414,424

 1
Common parts
82712-37070
90530-04005P3
90530-06001
91631-B0618
93560-55020
