XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv

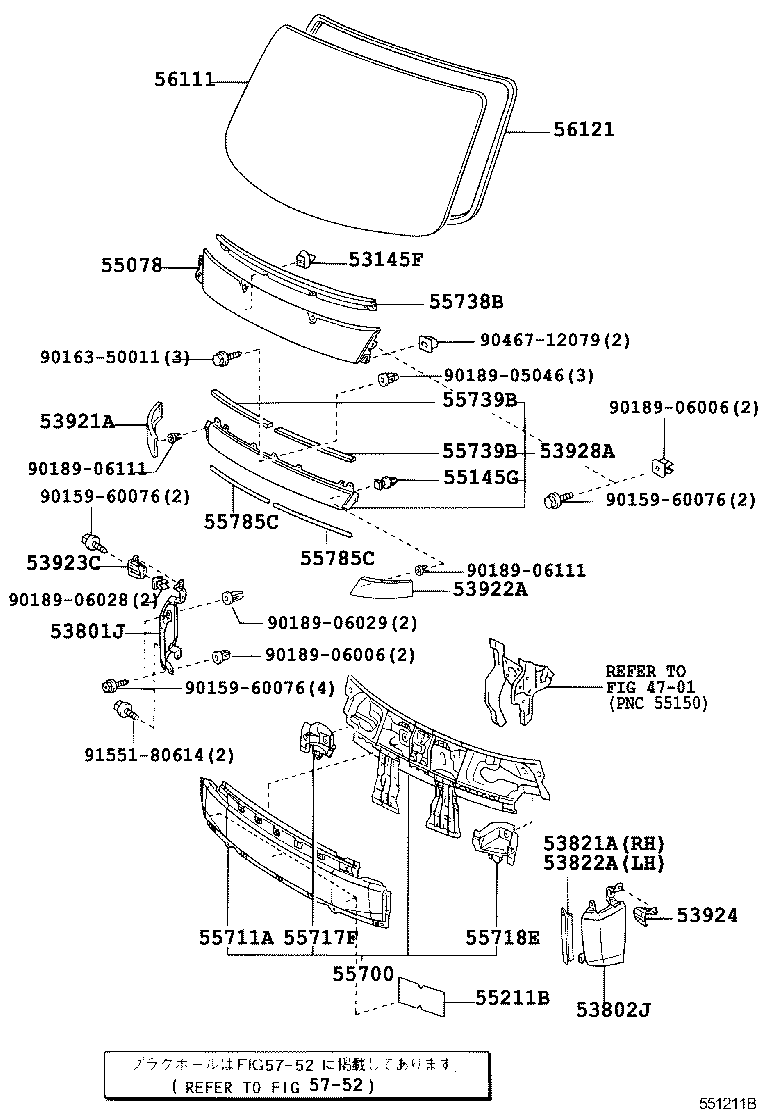

ILLUST NO. 1 OF 2(0310-0610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53145F - CLIP, RADIATOR GRILLE GARNISH | ||||
| 90467-08208 |
XKU414,424 |
2 | ||
| 53801J - PANEL SUB-ASSY, FRONT SIDE, RH | ||||
| 53801-37061 |
XKU414,424 ﾄｿｳ ｱﾘ |
1 | ||
| 53801-37071 |
XKU414,424 ﾒﾂｷ |
1 | ||
| 53802J - PANEL SUB-ASSY, FRONT SIDE, LH | ||||
| 53802-37071 |
XKU414,424 ﾒﾂｷ |
1 | ||
| 53802-37061 |
XKU414,424 ﾄｿｳ ｱﾘ |
1 | ||
| 53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH | ||||
| 53821-37070 |
XKU414,424 |
1 | ||
| 53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH | ||||
| 53821-37070 |
XKU414,424 |
1 | ||
| 53921A - PANEL, FRONT VALANCE, RH | ||||
| 53921-37010 |
XKU414,424 |
1 | ||
| 53922A - PANEL, FRONT VALANCE, LH | ||||
| 53922-37010 |
XKU414,424 |
1 | ||
| 53923C - SUPPORT, FRONT SIDE GARNISH, RH | ||||
| 53923-25010 |
XKU414,424 |
1 | ||
| 53924 - PLATE, NOISE SHUTTER SUPPORT, NO.2 | ||||
| 53924-25010 |
XKU414,424 |
1 | ||
| 53928A - GARNISH, FRONT PANEL, CENTER | ||||
| 53928-37040 |
XKU414,424 |
1 | ||
| 53928-37041 |
XKU414,424 |
1 | ||
| 55078 - COVER SUB-ASSY, FRONT PANEL | ||||
| 55078-37080 |
XKU414,424 |
1 | ||
| 55145G - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-27010 |
XKU414,424 |
9 | ||
| 53145-27010 |
XKU414,424 |
9 | ||
| 55211B - SILENCER, FRONT PANEL | ||||
| 55211-37030 |
XKU414,424 |
3 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-37143 |
XKU414,424 |
1 | ||
| 55711A - PANEL, FRONT, LOWER | ||||
| 55711-37061 |
XKU414,424 |
1 | ||
| 55711-37060 |
XKU414,424 |
1 | ||
| 55717F - EXTENSION, FRONT PANEL REINFORCEMENT, RH | ||||
| 55717-37020 |
XKU414,424 |
1 | ||
| 55718E - EXTENSION, FRONT PANEL REINFORCEMENT, LH | ||||
| 55718-37010 |
XKU414,424 |
1 | ||
| 55738B - PROTECTOR, FRONT PANEL COVER, NO.1 | ||||
| 55738-37060 |
XKU414,424 |
1 | ||
| 55739B - PROTECTOR, FRONT PANEL COVER, NO.2 | ||||
| 55739-37080 |
XKU414,424 |
2 | ||
| 55739-37080 |
XKU414,424 |
2 | ||
| 55739B - PROTECTOR, FRONT PANEL COVER, NO.2 | ||||
| 55739-37080 |
XKU414,424 |
2 | ||
| 55739-37080 |
XKU414,424 |
2 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55785-37030 |
XKU414,424 |
2 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55785-37030 |
XKU414,424 |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-37240 |
XKU414,424 *LAM,T=5.76,ｸﾞﾘｰﾝ |
1 | ||
| 56111-37150 |
XKU414,424 *LAM,T=5.76,ｸﾞﾘｰﾝ |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-37050 |
XKU414,424 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ ﾉﾐ) OR ﾅｼ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 56121-37060 |
XKU414,424 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| Common parts | ||||
| 90159-60076 | ||||
| 90163-50011 | ||||
| 90189-05046 | ||||
| 90189-06006 | ||||
| 90189-06028 | ||||
| 90189-06029 | ||||
| 90189-06111 | ||||
| 90467-12079 | ||||
| 91551-80614 | ||||
| Linked diagrams | ||||
| 4701 | ||||
| 5752 | ||||
ILLUST NO. 2 OF 2(0310- )
HINO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63273S - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
XKU414,424 |
14 | ||
| 63273S - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
XKU414,424 |
14 | ||
| 63787B - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-95400 |
XKU414,424 |
2 | ||
| 74306A - SUPPORT SUB-ASSY, FRONT VISOR | ||||
| 74306-37060 |
XKU414,424 |
1 | ||
| 74321B - VISOR, FRONT | ||||
| 74321-37060 |
XKU414,424 HINO |
1 | ||
| 74321-37050 |
XKU414,424 TOYOTA |
1 | ||
| 74325B - SUPPORT, FRONT VISOR, RH | ||||
| 74325-37030 |
XKU414,424 |
1 | ||
| 74326B - SUPPORT, FRONT VISOR, LH | ||||
| 74326-37030 |
XKU414,424 |
1 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XKU414,424 |
2 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XKU414,424 |
2 | ||
| 74328B - PAD, FRONT VISOR, NO.2 | ||||
| 74328-95400 |
XKU414,424 |
18 | ||
| 74328B - PAD, FRONT VISOR, NO.2 | ||||
| 74328-95400 |
XKU414,424 |
18 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90159-60162 | ||||
| 90201-06554 | ||||
| 90385-11005 | ||||
| 90541-10020 | ||||
| 90541-10022 | ||||
| 90541-10024 | ||||
| 91651-B0845 | ||||
ILLUST NO. 2 OF 2(0310- )
TOYOTA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63273S - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
XKU414,424 |
14 | ||
| 63273S - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
XKU414,424 |
14 | ||
| 63787B - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-95400 |
XKU414,424 |
2 | ||
| 74306A - SUPPORT SUB-ASSY, FRONT VISOR | ||||
| 74306-37060 |
XKU414,424 |
1 | ||
| 74321B - VISOR, FRONT | ||||
| 74321-37060 |
XKU414,424 HINO |
1 | ||
| 74321-37050 |
XKU414,424 TOYOTA |
1 | ||
| 74325B - SUPPORT, FRONT VISOR, RH | ||||
| 74325-37030 |
XKU414,424 |
1 | ||
| 74326B - SUPPORT, FRONT VISOR, LH | ||||
| 74326-37030 |
XKU414,424 |
1 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XKU414,424 |
2 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XKU414,424 |
2 | ||
| 74328B - PAD, FRONT VISOR, NO.2 | ||||
| 74328-95400 |
XKU414,424 |
18 | ||
| 74328B - PAD, FRONT VISOR, NO.2 | ||||
| 74328-95400 |
XKU414,424 |
18 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90159-60162 | ||||
| 90201-06554 | ||||
| 90385-11005 | ||||
| 90541-10020 | ||||
| 90541-10022 | ||||
| 90541-10024 | ||||
| 91651-B0845 | ||||
