XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0406- )XKU414

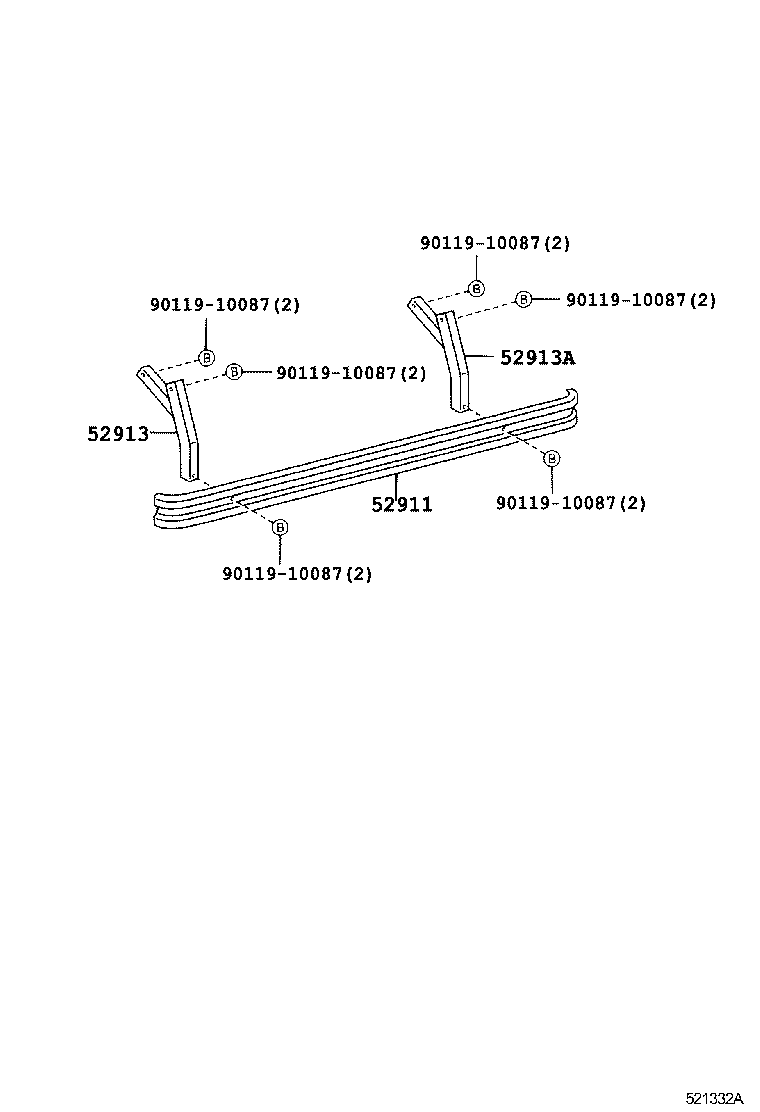

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52911 - BAR, SIDE BUMPER | ||||
| 52911-37700 |
XKU414 |
2 | ||
| 52901-37160 |
XKU414 |
2 | ||
| 52913 - STAY, SIDE BUMPER, NO.1 | ||||
| 52092-37450 |
XKU414..20T 左側 |
1 | ||
| 52091-37480 |
XKU414..20T 右側 |
1 | ||
| 52913A - STAY, SIDE BUMPER, NO.1 | ||||
| 52094-37040 |
XKU414..20T 左側 |
1 | ||
| 52093-37080 |
XKU414..20T 右側 |
1 | ||
| Common parts | ||||
| 90119-10087 | ||||
