XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310-0610)30T,35T ; (0505-0610)20T
Click highlighted areas on diagram

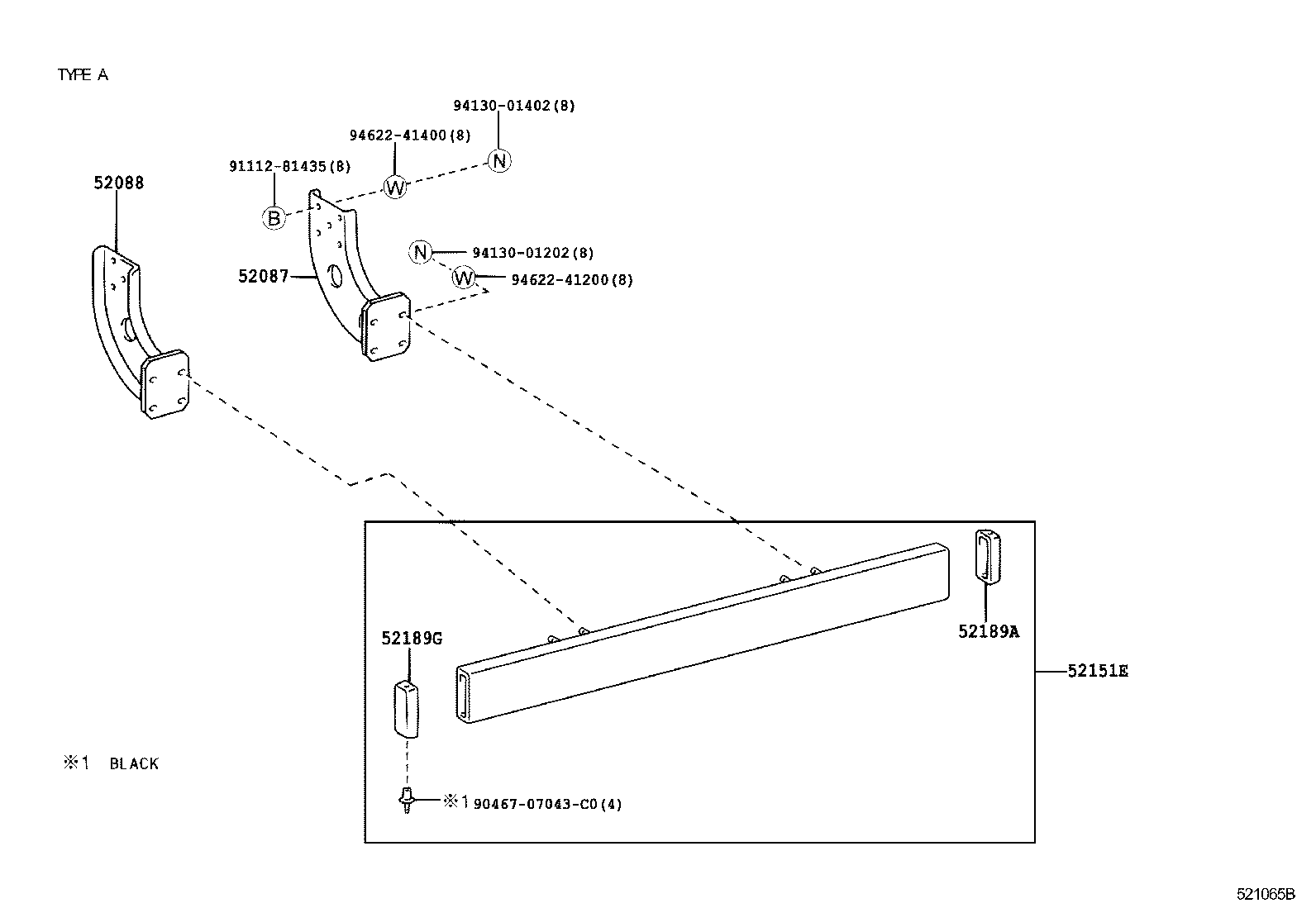

TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52152-37050 |
XKU414,424 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52151-37090 |
XKU414..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37060 |
XKU414..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52151-37080 |
XKU414,424 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52151-37110 |
XKU414,424 塗装不要,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52105-37140 |
XKU414..20T 塗装不要,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH | ||||
| 52189-37040 |
XKU414,424 |
1 | ||
| 52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH | ||||
| 52189-37040 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90467-07043C0 | ||||
| 91112-81435 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94622-41200 | ||||
| 94622-41400 | ||||
(0406-0505)
Click highlighted areas on diagram

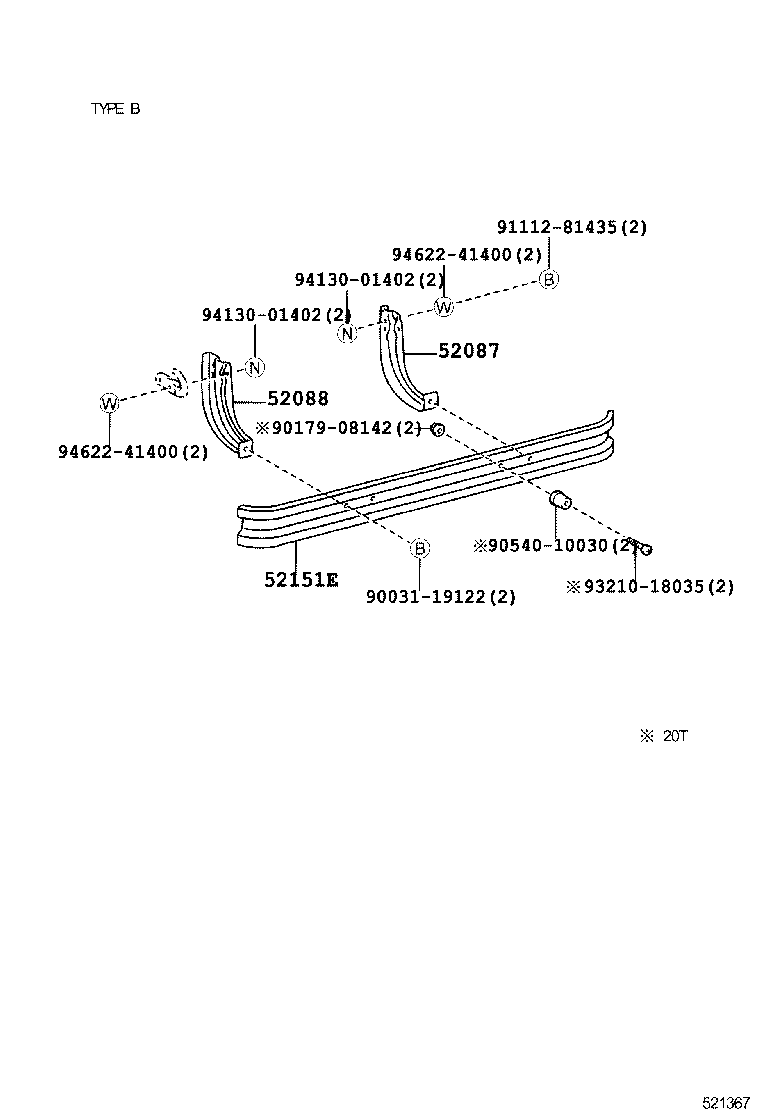

TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52152-37050 |
XKU414,424 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52151-37090 |
XKU414..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37060 |
XKU414..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52151-37080 |
XKU414,424 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52151-37110 |
XKU414,424 塗装不要,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 52105-37140 |
XKU414..20T 塗装不要,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90031-19122 | ||||
| 90179-08142 | ||||
| 90540-10030 | ||||
| 91112-81435 | ||||
| 93210-18035 | ||||
| 94130-01402 | ||||
| 94622-41400 | ||||
