XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

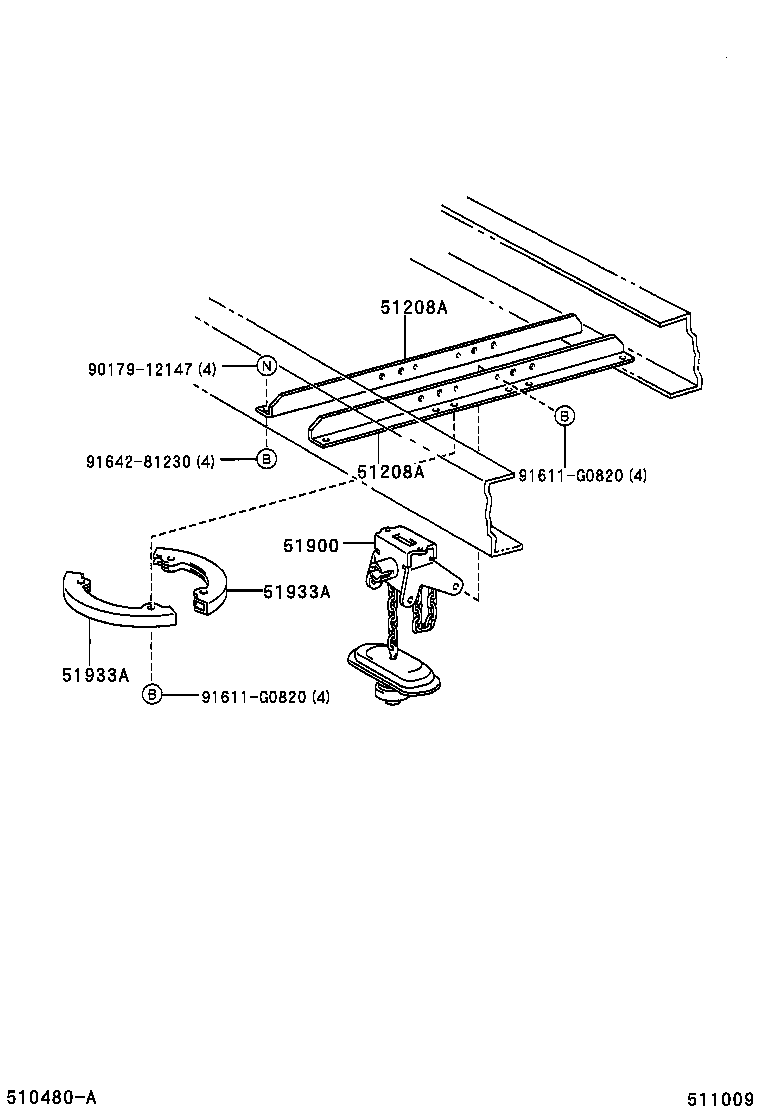

Click highlighted areas on diagram

diagram 51208A 51208A 51900 51933A 51933A 9017912147 91611G0820 91611G0820 9164281230
Part # Description Qty Price
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37070

XKU414,424

 2
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37070

XKU414,424

 2
51900 - CARRIER ASSY, SPARE WHEEL
51900-37060

XKU414..20T

 1
51900-37120

XKU414..20T

 1
51933A - STOPPER, SPARE WHEEL, NO.1
51933-37020

XKU414,424

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-37020

XKU414,424

 2
Common parts
90179-12147
91611-G0820
91642-81230
