XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

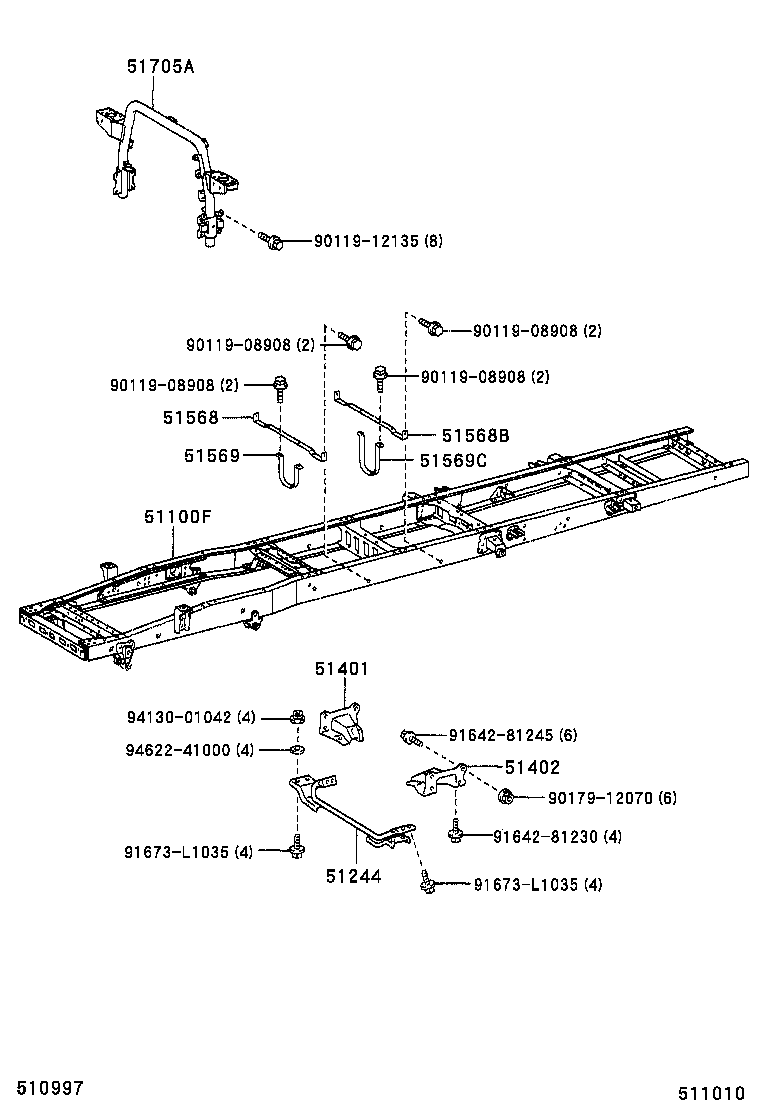

ILLUST NO. 1 OF 2(0310- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37M61 |
XKU414..20T |
1 | ||
| 51001-37M60 |
XKU414..20T |
1 | ||
| 51244 - MEMBER, ENGINE FRONT SUPPORT | ||||
| 51021-37020 |
XKU414,424 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37180 |
XKU414,424 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37180 |
XKU414,424 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37230 |
XKU414,424 |
1 | ||
| 51568-37231 |
XKU414,424 |
1 | ||
| 51568B - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37360 |
XKU414,424 |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37180 |
XKU414,424 |
1 | ||
| 51569-37141 |
XKU414,424 |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37200 |
XKU414 |
1 | ||
| 51569-37300 |
XKU414 |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37410 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90119-12135 | ||||
| 90179-12070 | ||||
| 91642-81230 | ||||
| 91642-81245 | ||||
| 91673-L1035 | ||||
| 94130-01042 | ||||
| 94622-41000 | ||||

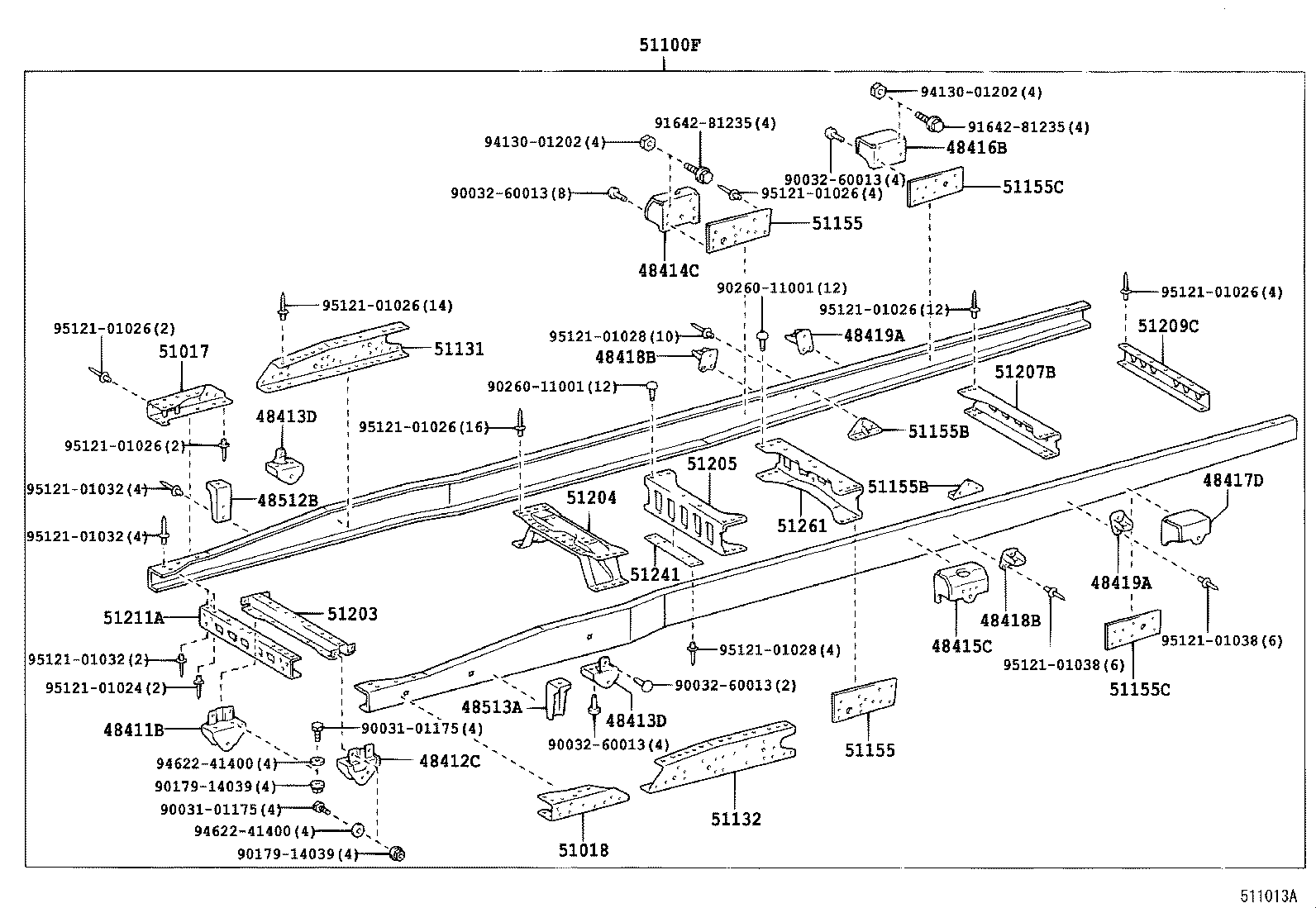

ILLUST NO. 2 OF 2(0310- )20T
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37080 |
XKU414..20T |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37070 |
XKU414..20T |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37070 |
XKU414..20T |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37070 |
XKU414..20T |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37130 |
XKU414..20T |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37130 |
XKU414..20T |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37110 |
XKU414..20T |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37110 |
XKU414..20T |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XKU414,424 |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XKU414,424 |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XKU414,424 |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XKU414,424 |
2 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37080 |
XKU414,424 |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37080 |
XKU414,424 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37080 |
XKU414,424 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37070 |
XKU414,424 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37M61 |
XKU414..20T |
1 | ||
| 51001-37M60 |
XKU414..20T |
1 | ||
| 51131 - RAIL, FRONT FRAME, RH | ||||
| 51013-37210 |
XKU414,424 |
1 | ||
| 51013-37211 |
XKU414,424 |
1 | ||
| 51132 - RAIL, FRONT FRAME, LH | ||||
| 51014-37210 |
XKU414,424 |
1 | ||
| 51014-37211 |
XKU414,424 |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37040 |
XKU414,424 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37040 |
XKU414,424 |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XKU414,424 |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XKU414,424 |
2 | ||
| 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 | ||||
| 51155-37050 |
XKU414,424 |
2 | ||
| 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 | ||||
| 51155-37050 |
XKU414,424 |
2 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51221-37080 |
XKU414,424 |
1 | ||
| 51221-37081 |
XKU414,424 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37200 |
XKU414,424 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51241-37070 |
XKU414,424 |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51271-37010 |
XKU414,424 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37100 |
XKU414,424 |
1 | ||
| 51211A - CROSSMEMBER, FRAME, FRONT | ||||
| 51211-37130 |
XKU414,424 |
1 | ||
| 51241 - BRACKET, CENTER BEARING SUPPORT | ||||
| 51241-37080 |
XKU414 |
1 | ||
| 51261 - CROSSMEMBER, FRAME, NO.6 | ||||
| 51261-37060 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90031-01175 | ||||
| 90032-60013 | ||||
| 90179-14039 | ||||
| 90260-11001 | ||||
| 91642-81235 | ||||
| 94130-01202 | ||||
| 94622-41400 | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01038 | ||||
