XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv

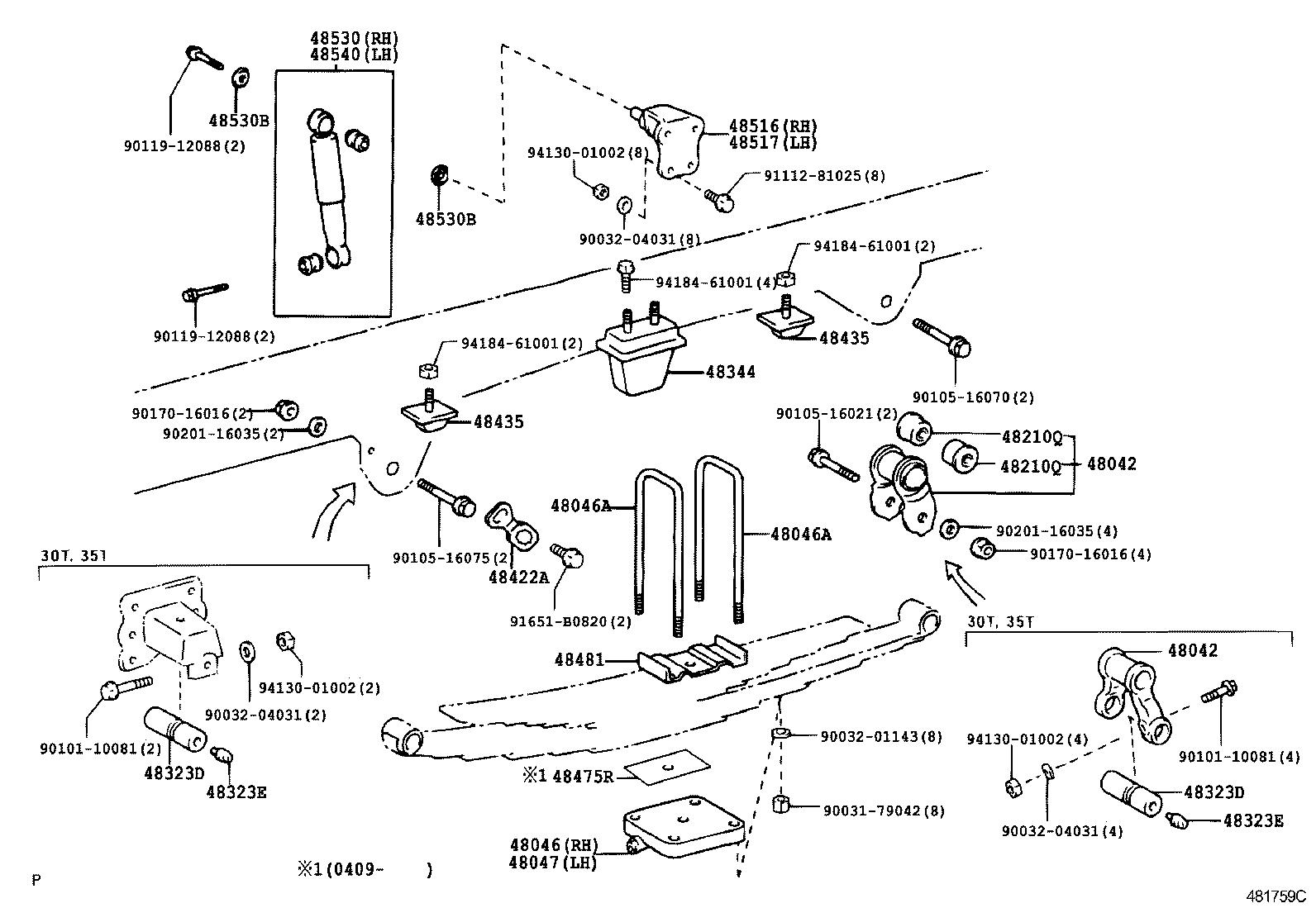

ILLUST NO. 1 OF 2(0310-0610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XKU414..20T |
2 | ||
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XKU414..20T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37110 |
XKU414,424 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17026 |
XKU414..20T 長さ=350 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17026 |
XKU414..20T 長さ=350 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37110 |
XKU414,424 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XKU414..20T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XKU414..20T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XKU414,424 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
XKU414..20T |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XKU414,424 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XKU414,424 |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XKU414,424 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37090 |
XKU414,424 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37051 |
XKU414,424 |
1 | ||
| 48505-37050 |
XKU414,424 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37050 |
XKU414,424 |
1 | ||
| 48505-37051 |
XKU414,424 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37290 |
XKU414,424 ﾏｰｸ 48531−37290 |
1 | ||
| 48531-37150 |
XKU414,424 ﾏｰｸ 48531−37150 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU414,424 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU414,424 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37150 |
XKU414,424 ﾏｰｸ 48531−37150 |
1 | ||
| 48531-37290 |
XKU414,424 ﾏｰｸ 48531−37290 |
1 | ||
| Common parts | ||||
| 90031-79042 | ||||
| 90032-01143 | ||||
| 90032-04031 | ||||
| 90101-10081 | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90105-16075 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90201-16035 | ||||
| 91112-81025 | ||||
| 91651-B0820 | ||||
| 94130-01002 | ||||
| 94184-61001 | ||||

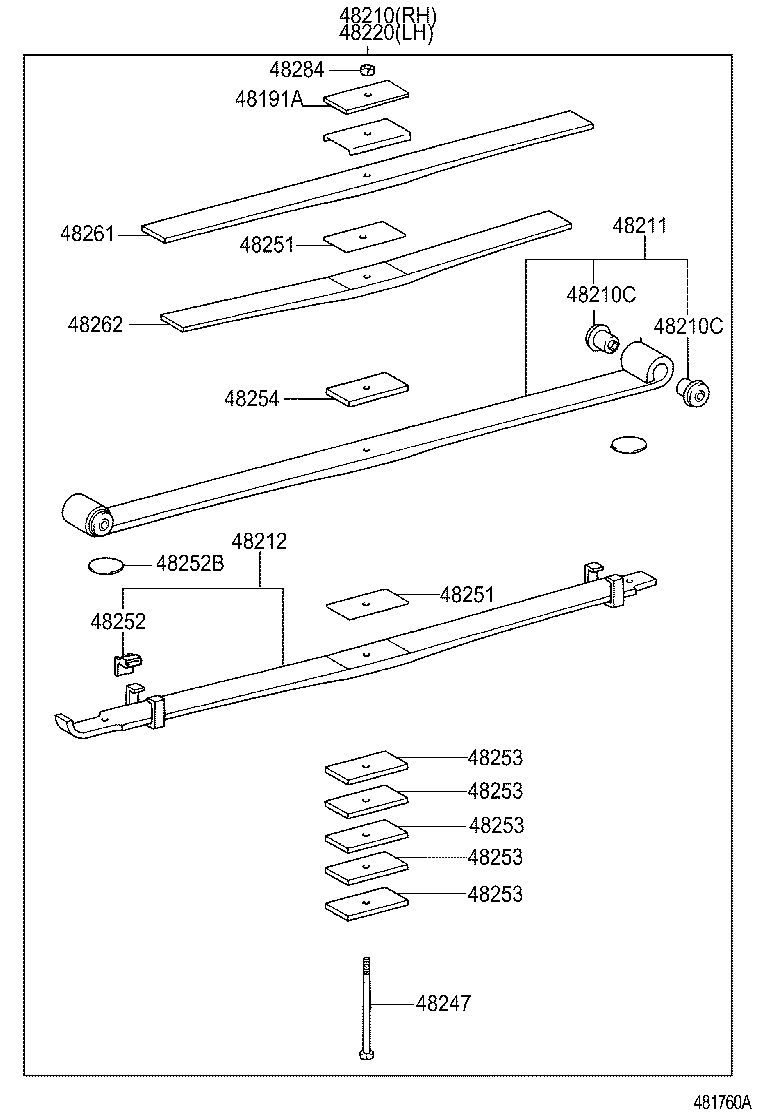

ILLUST NO. 2 OF 2(0310-0610)20T ; (0610- )20T ; (0610- )30T..DCRUE
MAIN 2+HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XKU414,424 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V470 |
XKU414..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKU414..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKU414..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V470 |
XKU414..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3V470 |
XKU414..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V470 |
XKU414..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V031 |
XKU414..20T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XKU414,424 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XKU414,424 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XKU414,424 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XKU414,424 |
4 | ||
| 48252-3B800 |
XKU414,424 |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V080 |
XKU414..20T |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V080 |
XKU414..20T |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V080 |
XKU414..20T |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V080 |
XKU414..20T |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V080 |
XKU414..20T |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XKU414,424 |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-3V470 |
XKU414..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-3V470 |
XKU414..20T |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 94110-51200 |
XKU414,424 |
2 | ||
| 48284-3B750 |
XKU414,424 |
2 | ||
