XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv

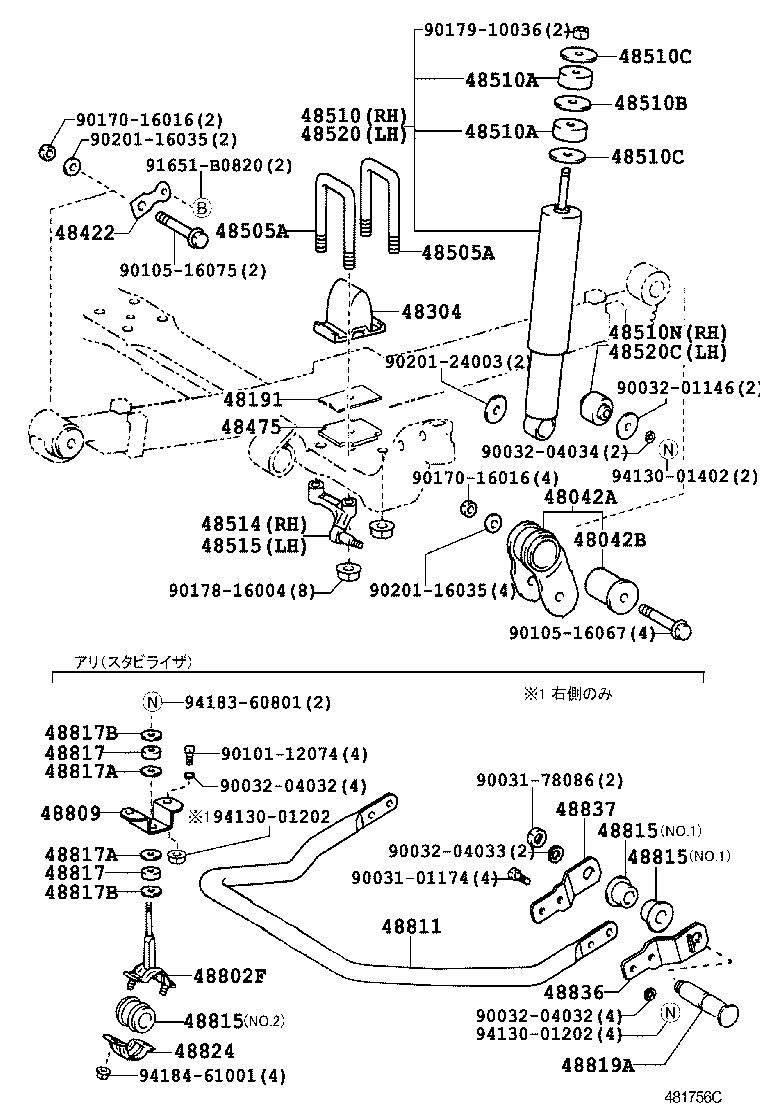

ILLUST NO. 1 OF 2(0310-0610)20T ; (0610- )20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
XKU414..20T |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16026 |
XKU414..20T |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37090 |
XKU414..20T |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37050 |
XKU414..20T |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XKU414..20T |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XKU414..20T |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16073 |
XKU414..20T 長さ=160 |
2 | ||
| 90117-16075 |
XKU414..20T 長さ=170 |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16073 |
XKU414..20T 長さ=160 |
2 | ||
| 90117-16075 |
XKU414..20T 長さ=170 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80095 |
XKU414,424 ﾏｰｸ 48511−37160 |
1 | ||
| 48511-89215 |
XKU414,424 ﾏｰｸ 48511−37260 |
1 | ||
| 48511-80115 |
XKU414,424 ﾏｰｸ 48511−37161 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XKU414,424 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XKU414,424 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
XKU414,424 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XKU414,424 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XKU414,424 |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XKU414,424 |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-37020 |
XKU414,424 |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-37030 |
XKU414,424 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80095 |
XKU414,424 ﾏｰｸ 48511−37160 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XKU414,424 |
1 | ||
| 48802F - LINK SUB-ASSY, FRONT STABILIZER | ||||
| 48802-37040 |
XKU414,424 |
2 | ||
| 48809 - BRACKET SUB-ASSY, STABILIZER | ||||
| 48809-37021 |
XKU414,424 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-37070 |
XKU414,424 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XKU414,424 NO.2 |
2 | ||
| 48815-37040 |
XKU414,424 NO.2 |
2 | ||
| 48815-37030 |
XKU414,424 NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XKU414,424 NO.2 |
2 | ||
| 48815-37040 |
XKU414,424 NO.2 |
2 | ||
| 48815-37030 |
XKU414,424 NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XKU414,424 NO.2 |
2 | ||
| 48815-37040 |
XKU414,424 NO.2 |
2 | ||
| 48815-37030 |
XKU414,424 NO.1 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XKU414,424 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XKU414,424 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XKU414,424 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XKU414,424 |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XKU414,424 |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XKU414,424 |
4 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-37010 |
XKU414,424 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-37060 |
XKU414,424 |
2 | ||
| 48836 - BRACKET, FRONT STABILIZER END, RH | ||||
| 48836-37050 |
XKU414,424 |
2 | ||
| 48837 - BRACKET, FRONT STABILIZER END, LH | ||||
| 48837-37030 |
XKU414,424 |
2 | ||
| Common parts | ||||
| 90031-01174 | ||||
| 90031-78086 | ||||
| 90032-01146 | ||||
| 90032-04032 | ||||
| 90032-04033 | ||||
| 90032-04034 | ||||
| 90101-12074 | ||||
| 90105-16067 | ||||
| 90105-16075 | ||||
| 90170-16016 | ||||
| 90178-16004 | ||||
| 90179-10036 | ||||
| 90201-16035 | ||||
| 90201-24003 | ||||
| 91651-B0820 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94183-60801 | ||||
| 94184-61001 | ||||

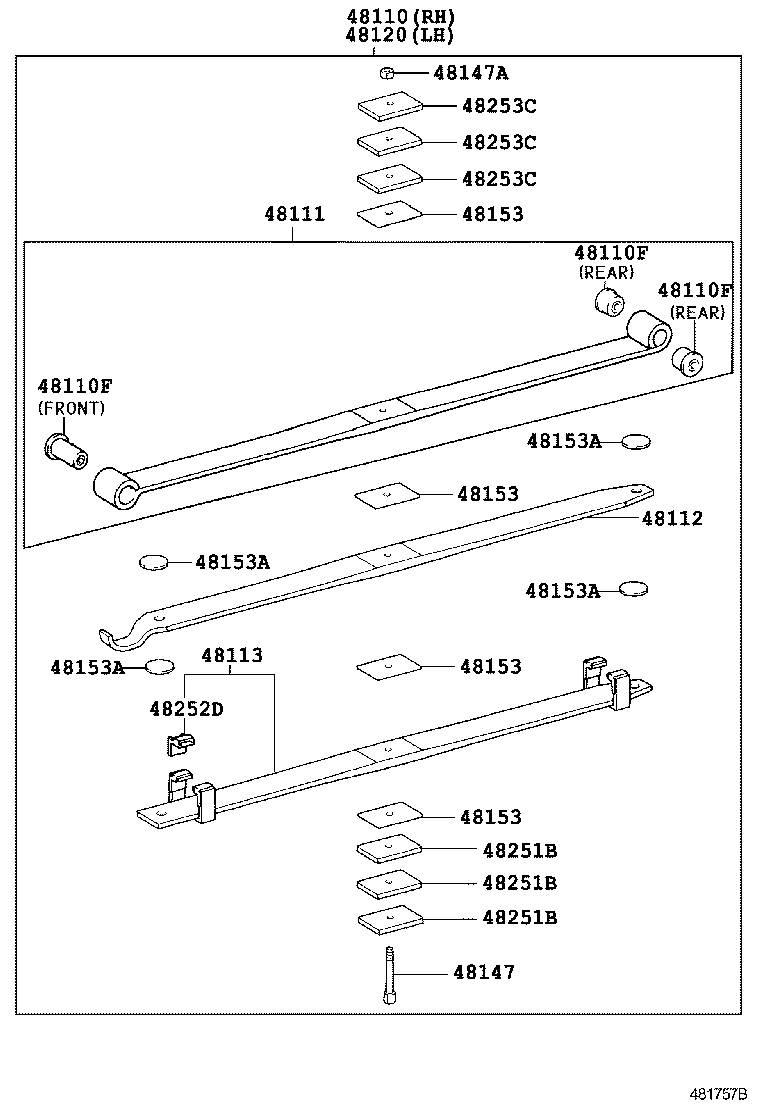

ILLUST NO. 2 OF 2(0310-0610)20T ; (0610- )20T
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37632 |
XKU414..20T 3枚ﾘｰﾌ |
1 | ||
| 48110-37692 |
XKU414..20T 3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XKU414..20T ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XKU414..20T ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XKU414..20T ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XKU414..20T ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XKU414..20T ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XKU414..20T ﾘﾔ |
4 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37690 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側 |
1 | ||
| 48112-37630 |
XKU414..20T 運転席側 |
1 | ||
| 48112-37700 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側 |
1 | ||
| 48112-37750 |
XKU414..20T 助手席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-37750 |
XKU414..20T 助手席側 |
1 | ||
| 48102-37700 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側 |
1 | ||
| 48102-37690 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側 |
1 | ||
| 48102-37630 |
XKU414..20T 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37702 |
XKU414..20T 3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48110-37752 |
XKU414..20T 3枚ﾘｰﾌ |
1 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU414..20T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU414..20T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU414..20T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU414..20T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU414..20T |
8 | ||
| 48252-37670 |
XKU414..20T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU414..20T |
8 | ||
| 48252-37670 |
XKU414..20T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU414..20T |
8 | ||
| 48252-37670 |
XKU414..20T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU414..20T |
8 | ||
| 48252-37670 |
XKU414..20T |
8 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48253-3B122 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
2 | ||
| 48235-3B630 |
XKU414..20T 運転席側 |
3 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48253-3B122 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
2 | ||
| 48235-3B630 |
XKU414..20T 運転席側 |
3 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48253-3B122 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
2 | ||
| 48235-3B630 |
XKU414..20T 運転席側 |
3 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XKU414,424 |
8 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XKU414..20T |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XKU414..20T |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XKU414..20T |
6 | ||

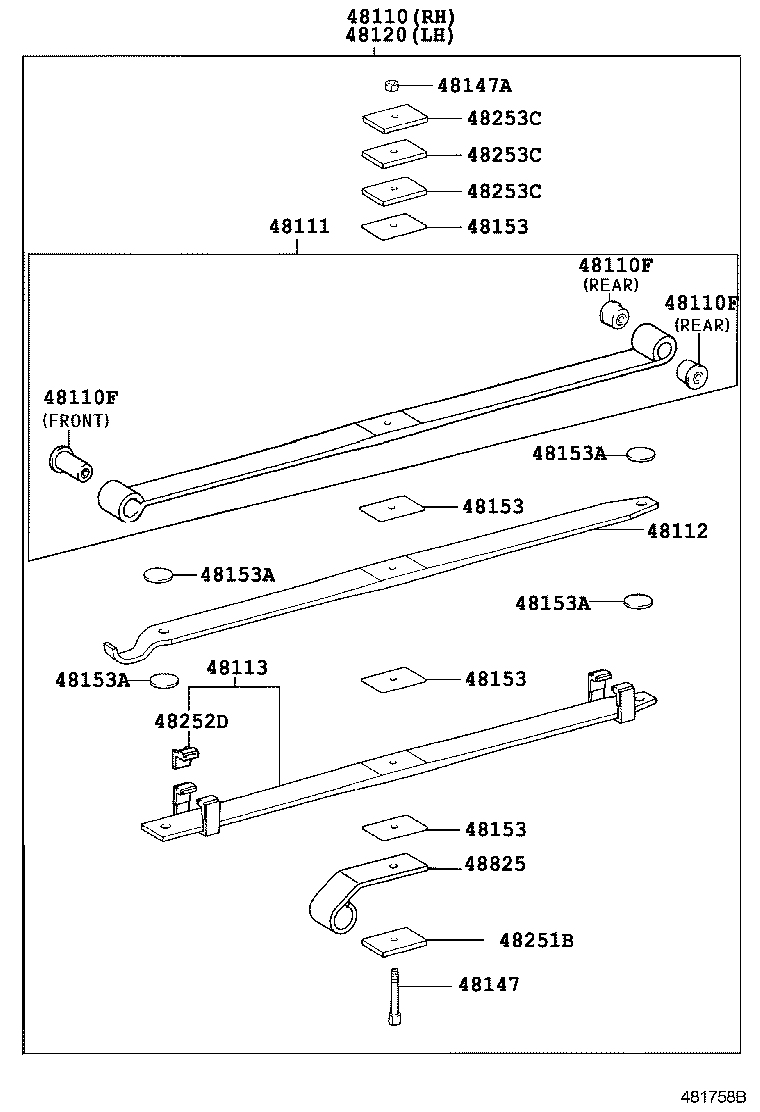

ILLUST NO. 2 OF 2(0310-0610)20T ; (0610- )20T
3-LEAF,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37632 |
XKU414..20T 3枚ﾘｰﾌ |
1 | ||
| 48110-37692 |
XKU414..20T 3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XKU414..20T ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XKU414..20T ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XKU414..20T ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XKU414..20T ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XKU414..20T ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XKU414..20T ﾘﾔ |
4 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37690 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側 |
1 | ||
| 48112-37630 |
XKU414..20T 運転席側 |
1 | ||
| 48112-37700 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側 |
1 | ||
| 48112-37750 |
XKU414..20T 助手席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-37750 |
XKU414..20T 助手席側 |
1 | ||
| 48102-37700 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側 |
1 | ||
| 48102-37690 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側 |
1 | ||
| 48102-37630 |
XKU414..20T 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37702 |
XKU414..20T 3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48110-37752 |
XKU414..20T 3枚ﾘｰﾌ |
1 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU414..20T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU414..20T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU414..20T |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XKU414..20T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU414..20T |
8 | ||
| 48252-37670 |
XKU414..20T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU414..20T |
8 | ||
| 48252-37670 |
XKU414..20T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU414..20T |
8 | ||
| 48252-37670 |
XKU414..20T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XKU414..20T |
8 | ||
| 48252-37670 |
XKU414..20T |
8 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48253-3B122 |
XKU414..20T ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
2 | ||
| 48235-3B630 |
XKU414..20T 運転席側 |
3 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XKU414,424 |
8 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XKU414..20T |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XKU414..20T |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XKU414..20T |
6 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XKU414,424 |
2 | ||
