XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
ILLUST NO. 3 OF 3(0310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-37040 |
XKU414,424 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37020 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||

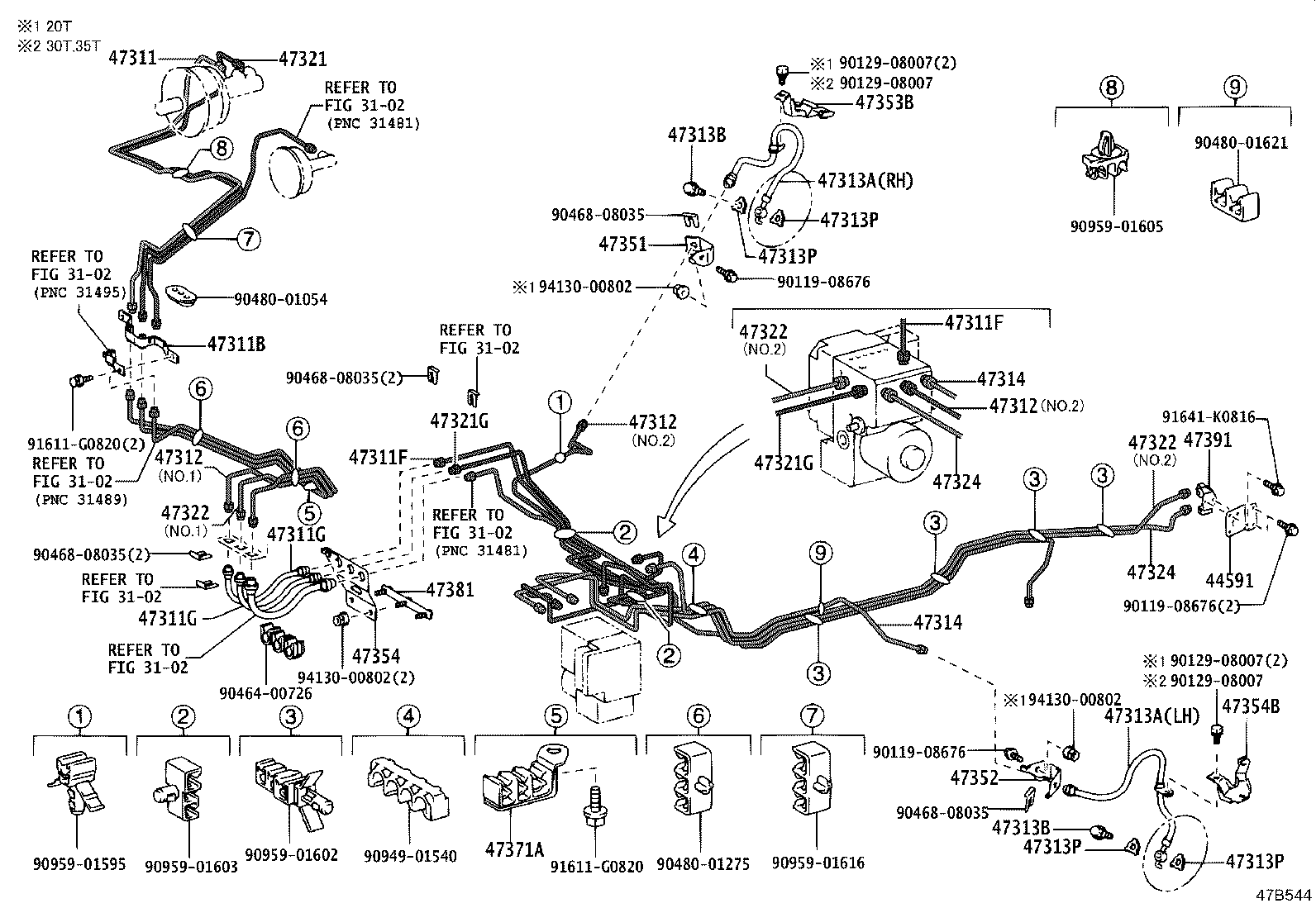

ILLUST NO. 1 OF 3(0310-0610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37130 |
XKU414,424 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37162 |
XKU414,424 |
1 | ||
| 47311-37161 |
XKU414,424 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37020 |
XKU414,424 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37430 |
XKU414,424 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37430 |
XKU414,424 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XKU414,424 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XKU414,424 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37460 |
XKU414..20T NO.2 |
1 | ||
| 47312-37270 |
XKU414,424 NO.1 |
1 | ||
| 47312-37270 |
XKU414,424 NO.1 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37460 |
XKU414..20T NO.2 |
1 | ||
| 47312-37270 |
XKU414,424 NO.1 |
1 | ||
| 47312-37270 |
XKU414,424 NO.1 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37460 |
XKU414..20T NO.2 |
1 | ||
| 47312-37270 |
XKU414,424 NO.1 |
1 | ||
| 47312-37270 |
XKU414,424 NO.1 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A73 |
XKU414..20T 右側 |
1 | ||
| 90947-02A74 |
XKU414..20T 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A73 |
XKU414..20T 右側 |
1 | ||
| 90947-02A74 |
XKU414..20T 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XKU414,424 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XKU414,424 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKU414,424 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKU414,424 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKU414,424 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XKU414,424 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37550 |
XKU414..20T |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37550 |
XKU414..20T |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XKU414,424 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37410 |
XKU414,424 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37410 |
XKU414,424 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37370 |
XKU414,424 NO.1 |
1 | ||
| 47322-37371 |
XKU414,424 NO.1 |
1 | ||
| 47322-37560 |
XKU414,424 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37370 |
XKU414,424 NO.1 |
1 | ||
| 47322-37371 |
XKU414,424 NO.1 |
1 | ||
| 47322-37560 |
XKU414,424 NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37370 |
XKU414,424 NO.1 |
1 | ||
| 47322-37371 |
XKU414,424 NO.1 |
1 | ||
| 47322-37560 |
XKU414,424 NO.2 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37230 |
XKU414,424 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37230 |
XKU414,424 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37210 |
XKU414..20T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37130 |
XKU414..20T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37200 |
XKU414..20T |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37131 |
XKU414,424 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37200 |
XKU414..20T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
XKU414,424 |
1 | ||
| 47371-37030 |
XKU414,424 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37280 |
XKU414,424 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37270 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01621 | ||||
| 90949-01540 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 91641-K0816 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||

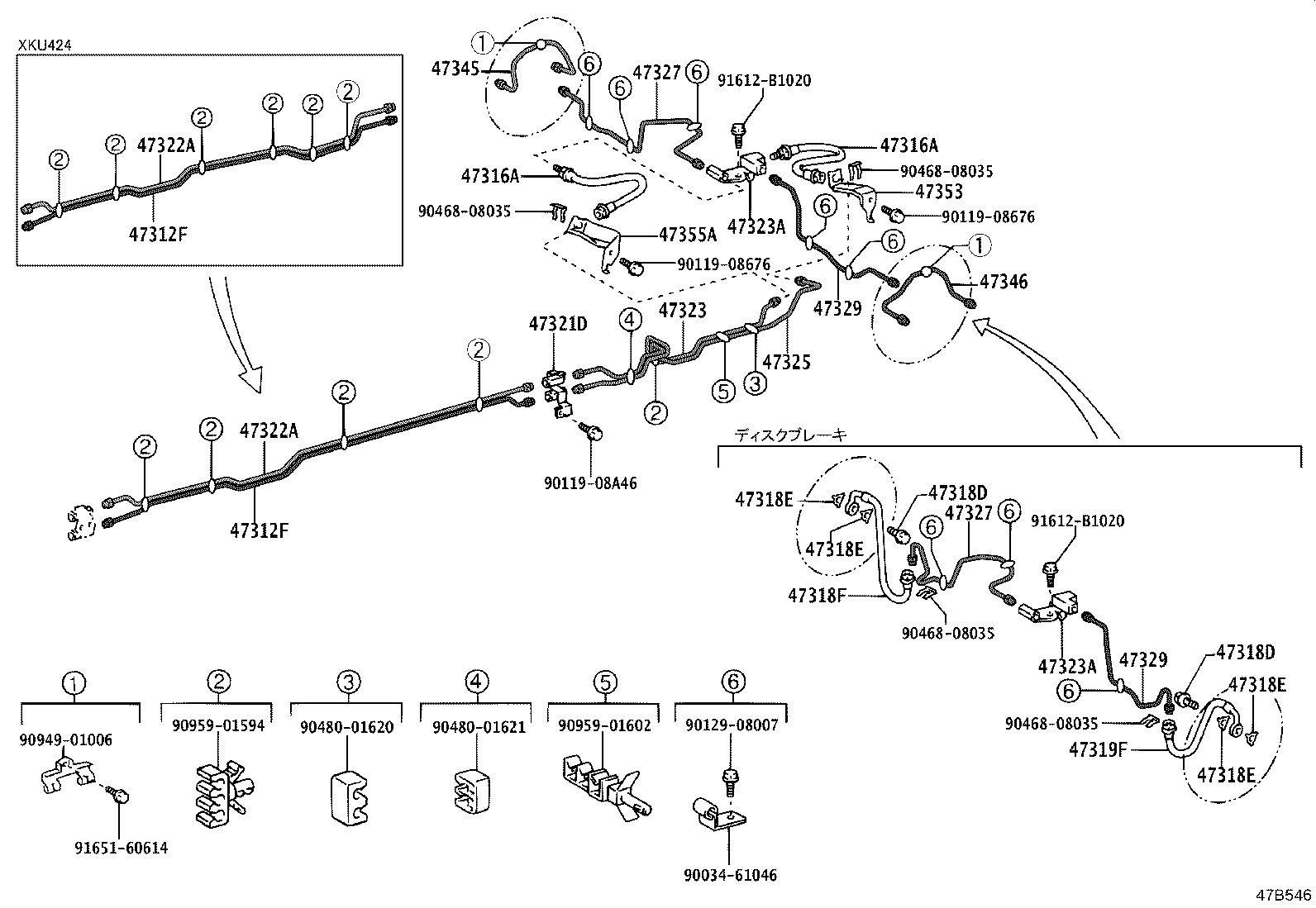

ILLUST NO. 2 OF 3(0310-0610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37680 |
XKU414 |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37680 |
XKU414 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XKU414,424 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XKU414,424 |
2 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XKU414,424 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37710 |
XKU414 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37710 |
XKU414 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37520 |
XKU414,424 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37090 |
XKU414,424 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37090 |
XKU414,424 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37310 |
XKU414,424 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37380 |
XKU414..20T |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37380 |
XKU414..20T |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37240 |
XKU414..20T |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37240 |
XKU414..20T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
XKU414..20T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
XKU414..20T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XKU414,424 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47354-37230 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90949-01006 | ||||
| 90959-01594 | ||||
| 90959-01602 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
