XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
(0310-0610)20T

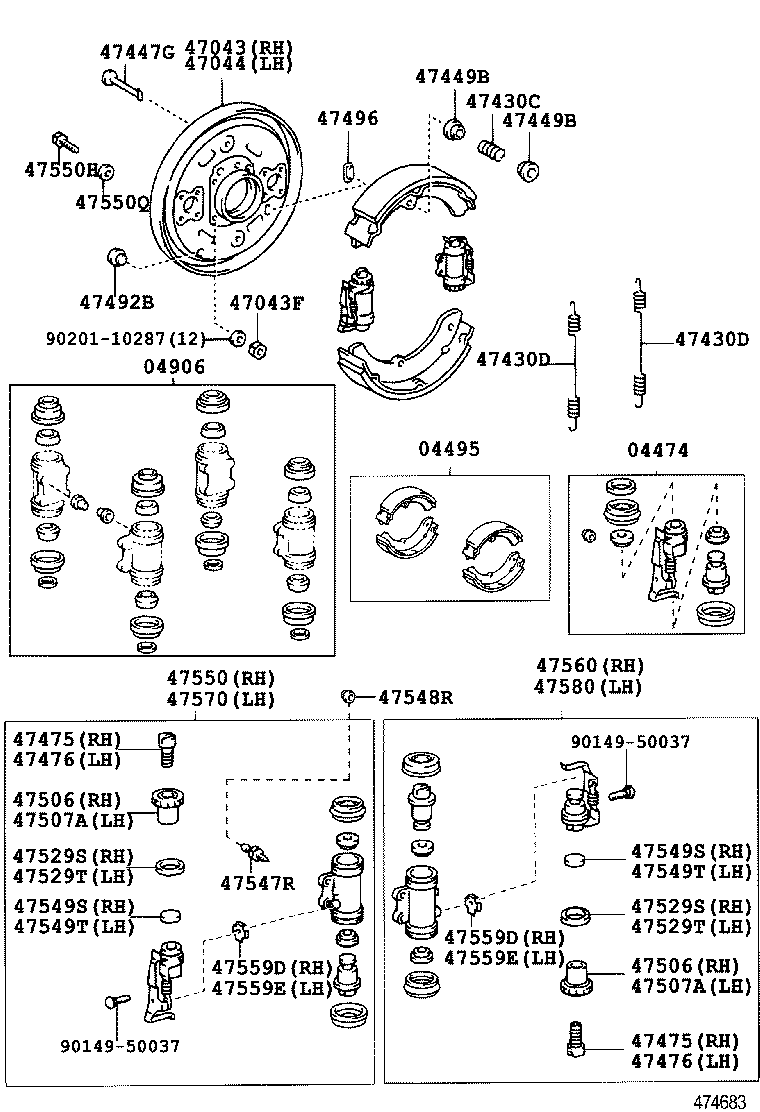

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-37240 |
XKU414..20T 右側 |
1 | ||
| 04468-37020 |
XKU414..20T 左側 |
1 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-37040 |
XKU414..20T ﾏｰｸ NBK D9227 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36181 |
XKU414..20T..DCRL |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-37060 |
XKU414..20T..DCRL |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01002 |
XKU414..20T |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-37060 |
XKU414..20T..DCRL |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
XKU414..20T..DCRL |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
XKU414..20T..DCRL |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
XKU414..20T..DCRL |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
XKU414..20T..DCRL |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
XKU414..20T..DCRL |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
XKU414..20T..DCRL |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
XKU414..20T |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36070 |
XKU414..20T |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
XKU414..20T |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
XKU414..20T |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
XKU414..20T..DCRL |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36020 |
XKU414..20T..DCRL |
8 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36020 |
XKU414..20T |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36020 |
XKU414..20T |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36020 |
XKU414..20T |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36020 |
XKU414..20T |
2 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
XKU414..20T |
2 | ||
| 47529S - SEAL, REAR BRAKE ADJUST NUT DUST, RH | ||||
| 47529-36010 |
XKU414..20T |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
XKU414..20T |
2 | ||
| 47529T - SEAL, REAR BRAKE ADJUST NUT DUST, LH | ||||
| 47529-36010 |
XKU414..20T |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-27020 |
XKU414..20T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
XKU414..20T |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-37091 |
XKU414..20T |
2 | ||
| 47549S - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH | ||||
| 47549-37091 |
XKU414..20T |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-37091 |
XKU414..20T |
2 | ||
| 47549T - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH | ||||
| 47549-37091 |
XKU414..20T |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37112 |
XKU414..20T..DCRL |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
XKU414..20T..DCRL |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
XKU414..20T..DCRL |
16 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
XKU414..20T |
2 | ||
| 47559D - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH | ||||
| 47559-36010 |
XKU414..20T |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
XKU414..20T |
2 | ||
| 47559E - SPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH | ||||
| 47559-36010 |
XKU414..20T |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-37082 |
XKU414..20T..DCRL |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37072 |
XKU414..20T..DCRL |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-37072 |
XKU414..20T..DCRL |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
