XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310- )20T

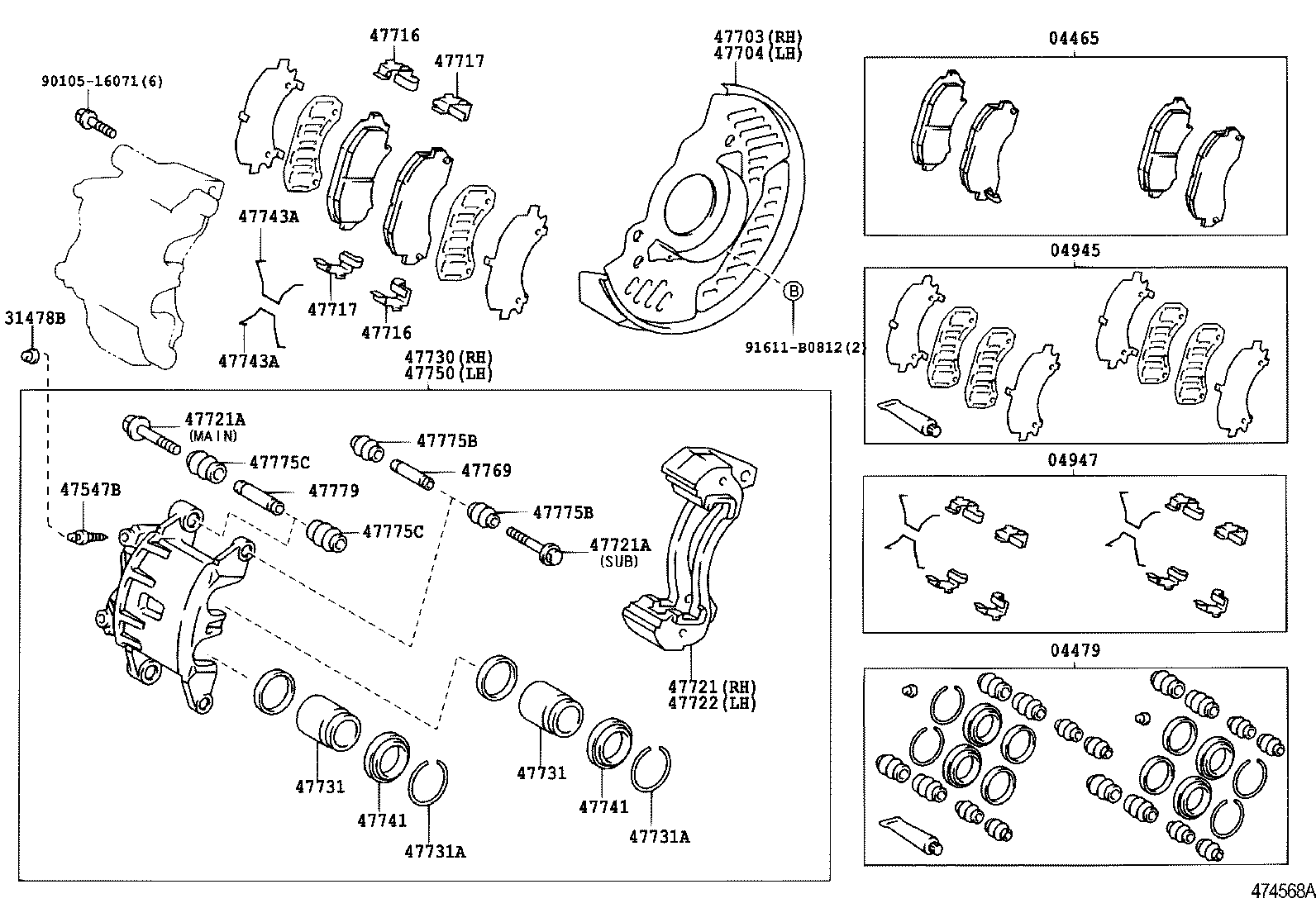

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37030 |
XKU414..20T ﾏｰｸ AISIN T536 |
1 | ||
| 04465-37100 |
XKU414..20T ﾏｰｸ AK V3016 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-37010 |
XKU414..20T |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37030 |
XKU414..20T |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-36020 |
XKU414..20T |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-37040 |
XKU414,424 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
XKU414..20T |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37030 |
XKU414..20T |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37030 |
XKU414..20T |
1 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
XKU414..20T |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
XKU414..20T |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
XKU414..20T |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
XKU414..20T |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37030 |
XKU414..20T |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
XKU414..20T *12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側 |
4 | ||
| 90119-08B87 |
XKU414..20T *8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
XKU414..20T *12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側 |
4 | ||
| 90119-08B87 |
XKU414..20T *8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37020 |
XKU414..20T ﾒｲﾝ ﾋﾟﾝ側 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37030 |
XKU414..20T |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
XKU414..20T |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
XKU414..20T |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
XKU414..20T |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
XKU414..20T |
4 | ||
| 47741 - BOOT, FRONT DISC BRAKE CYLINDER | ||||
| 47741-37010 |
XKU414..20T |
4 | ||
| 47741 - BOOT, FRONT DISC BRAKE CYLINDER | ||||
| 47741-37010 |
XKU414..20T |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XKU414..20T |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XKU414..20T |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37030 |
XKU414..20T |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
XKU414..20T |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
XKU414..20T |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
XKU414..20T |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
XKU414..20T |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
XKU414..20T |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
XKU414..20T |
4 | ||
| Common parts | ||||
| 90105-16071 | ||||
| 91611-B0812 | ||||
