XKU414-TQFMW3 (2003)
Toyota Dyna/Toyoace Hv
Production
Oct 2003
-
Oct 2006
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

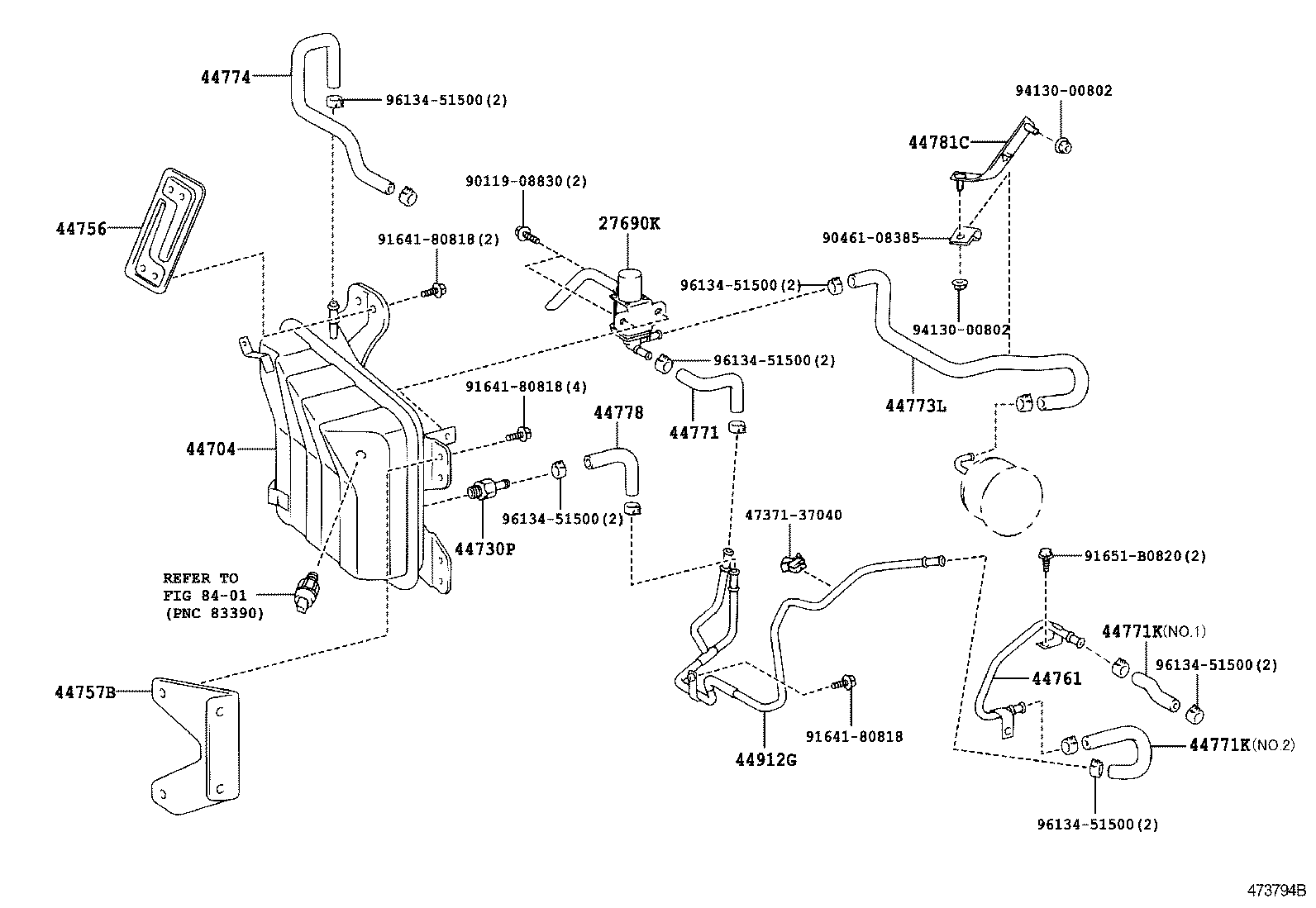

ILLUST NO. 2 OF 2(0310-0610)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78023 |
N04C..XKU414,424 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37070 |
XKU414,424 |
1 | ||
| 44704-37071 |
XKU414,424 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XKU414,424 |
1 | ||
| 44730-60050 |
XKU414,424 |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37100 |
XKU414,424 |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37090 |
XKU414,424 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37330 |
XKU414,424 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XKU414,424 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 95446-09120 |
XKU414,424 NO.1 |
1 | ||
| 44771-37580 |
XKU414,424 NO.2 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 95446-09120 |
XKU414,424 NO.1 |
1 | ||
| 44771-37580 |
XKU414,424 NO.2 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37290 |
XKU414,424 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
XKU414,424 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XKU414,424 |
1 | ||
| 44781C - BRACKET, HOSE CLAMP, NO.2 | ||||
| 44781-37081 |
XKU414,424 |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37A20 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08830 | ||||
| 90461-08385 | ||||
| 91641-80818 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96134-51500 | ||||
| Linked diagrams | ||||
| 8401 | ||||

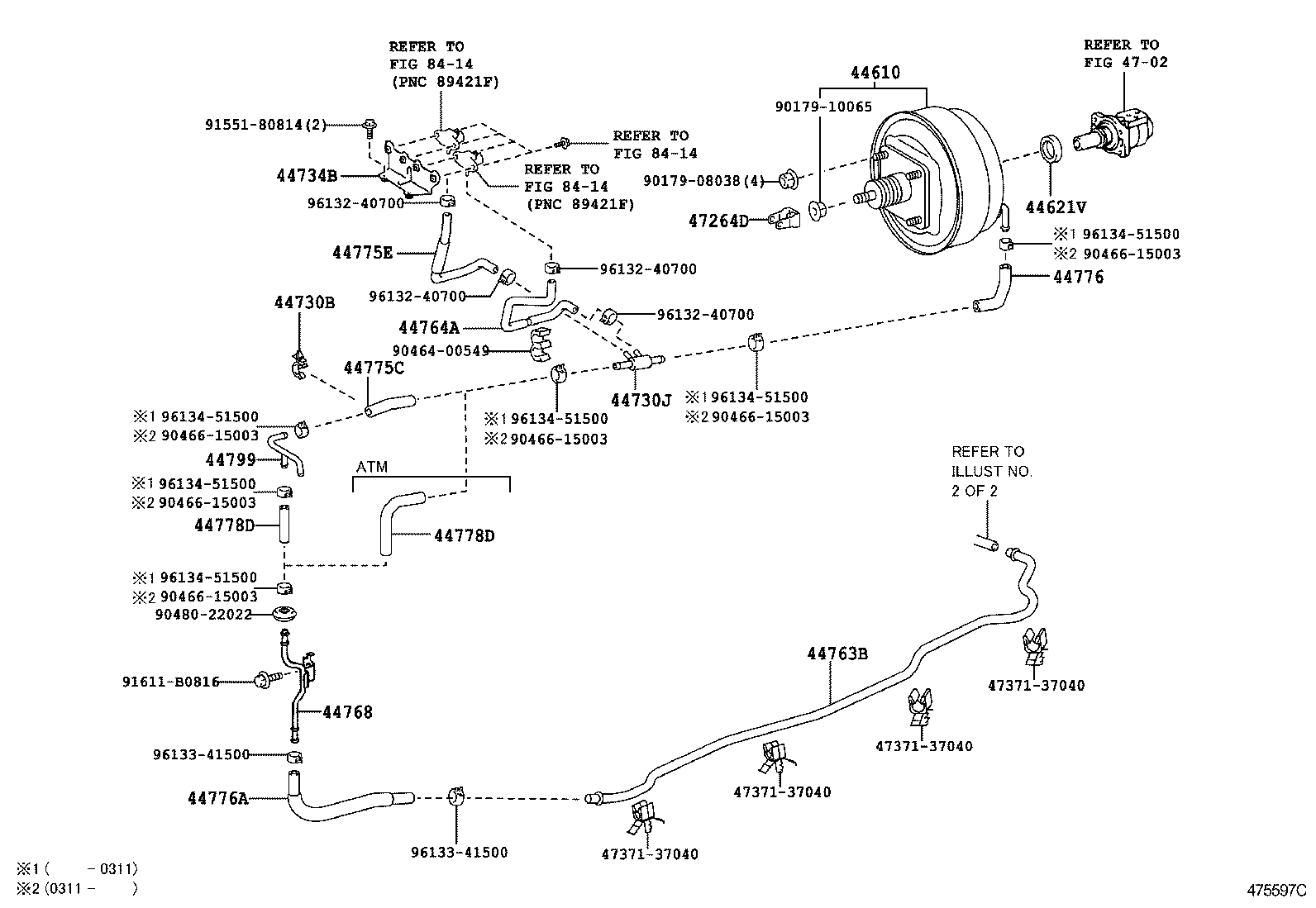

ILLUST NO. 1 OF 2(0310- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37151 |
XKU414..20T |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XKU414,424 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37020 |
XKU414,424 |
1 | ||
| 44597-37021 |
XKU414,424 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XKU414,424 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37011 |
XKU414,424 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37060 |
XKU414,424 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
XKU414,424 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37150 |
XKU414,424 |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37010 |
XKU414,424 |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37100 |
XKU414,424 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
XKU414,424 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37160 |
XKU414,424 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
XKU414,424 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
XKU414,424 |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
XKU414,424 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XKU414,424 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91551-80814 | ||||
| 91611-B0816 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| 96134-51500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
