XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )

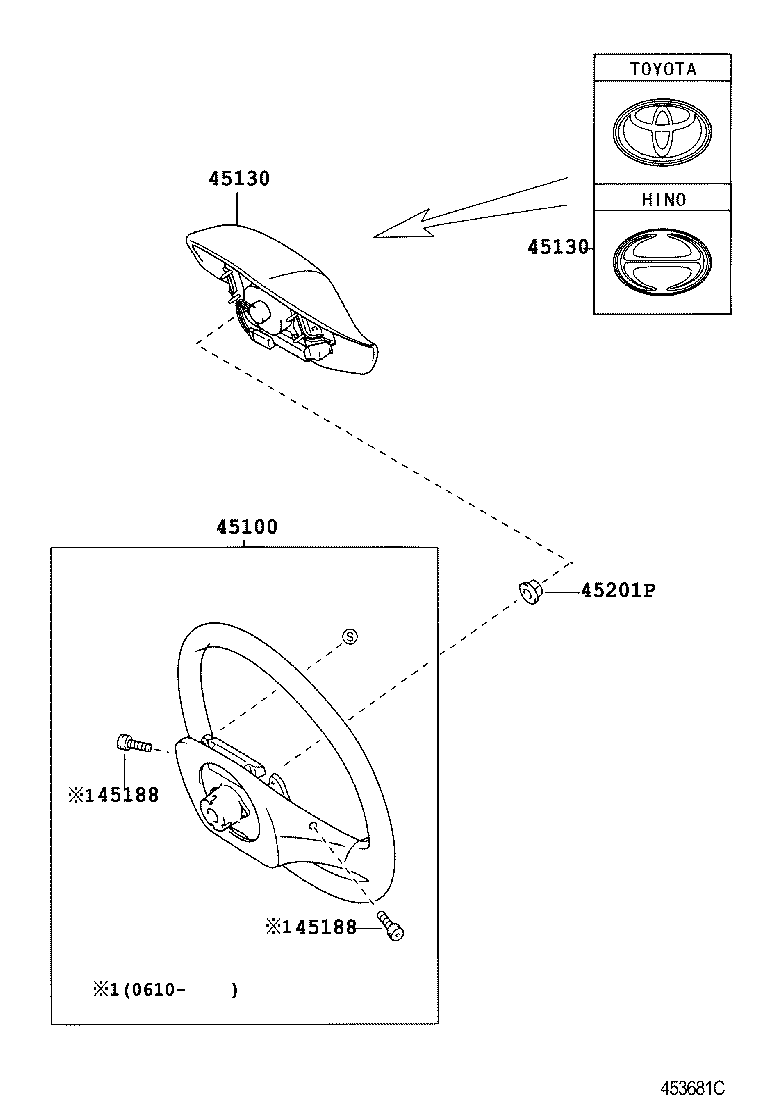

Click highlighted areas on diagram

2-SPOKE,ｱﾘ(ｴｱﾊﾞﾂｸﾞ)

diagram 45100 45130 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-37040B1

XKU414,424

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45100-36140B0

XKU414,424

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-36120B0

XKU414,424

TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ, ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-37150B0

XKU414,424

HINO:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-36130B0

XKU414,424

HINO:ｲﾗｽﾄｻﾝｼﾖｳ, ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-37140B0

XKU414,424

TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-36120B0

XKU414,424

TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ, ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-37150B0

XKU414,424

HINO:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-36130B0

XKU414,424

HINO:ｲﾗｽﾄｻﾝｼﾖｳ, ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-37140B0

XKU414,424

TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

XKU414,424

 1

(0310- )DCRL

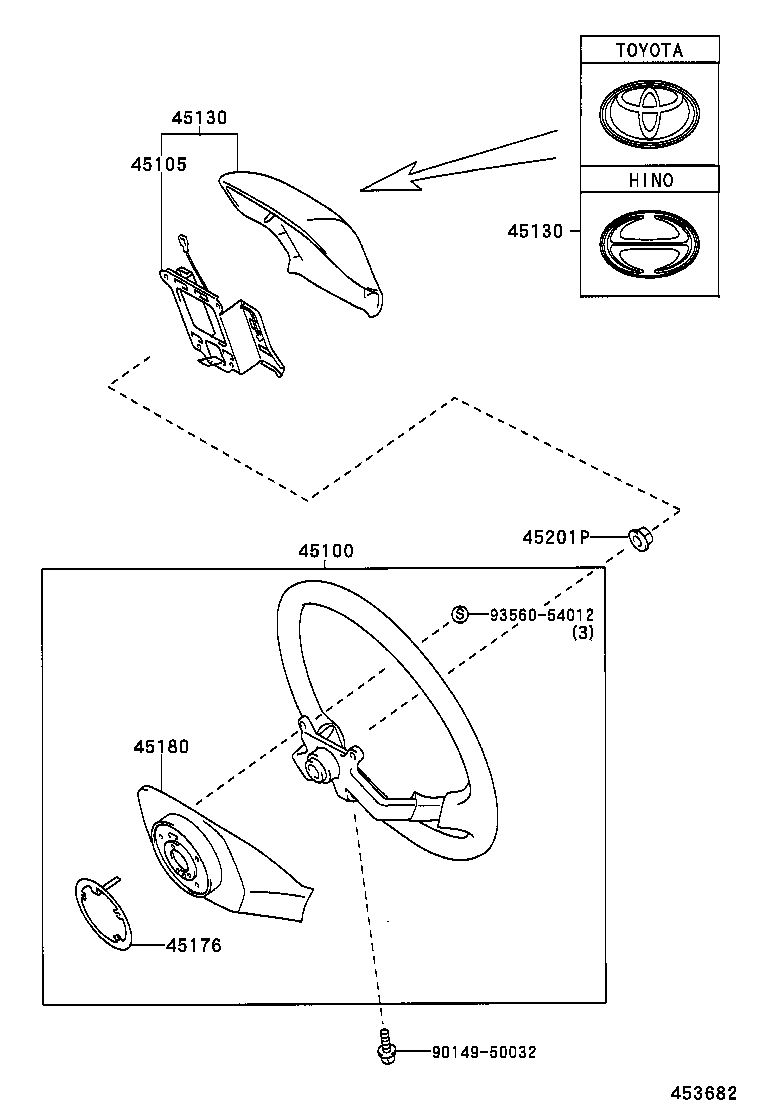

Click highlighted areas on diagram

2-SPOKE,ﾅｼ(ｴｱﾊﾞﾂｸﾞ)

diagram 45100 45105 45130 45130 45176 45180 45201P 9014950032 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-37040B1

XKU414,424

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45100-36140B0

XKU414,424

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36030

XKU414,424

 1
45130 - BUTTON ASSY, HORN
45130-36120B0

XKU414,424

TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ, ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-37150B0

XKU414,424

HINO:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-36130B0

XKU414,424

HINO:ｲﾗｽﾄｻﾝｼﾖｳ, ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-37140B0

XKU414,424

TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-36120B0

XKU414,424

TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ, ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-37150B0

XKU414,424

HINO:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-36130B0

XKU414,424

HINO:ｲﾗｽﾄｻﾝｼﾖｳ, ﾅｼ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45130-37140B0

XKU414,424

TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-36020

XKU414,424

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-36030B0

XKU414,424

MD.CHARCOAL,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

XKU414,424

 1
Common parts
90149-50032
93560-54012
