XKU414-TQFMW3 (2003)

Toyota Dyna/Toyoace Hv

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0610)

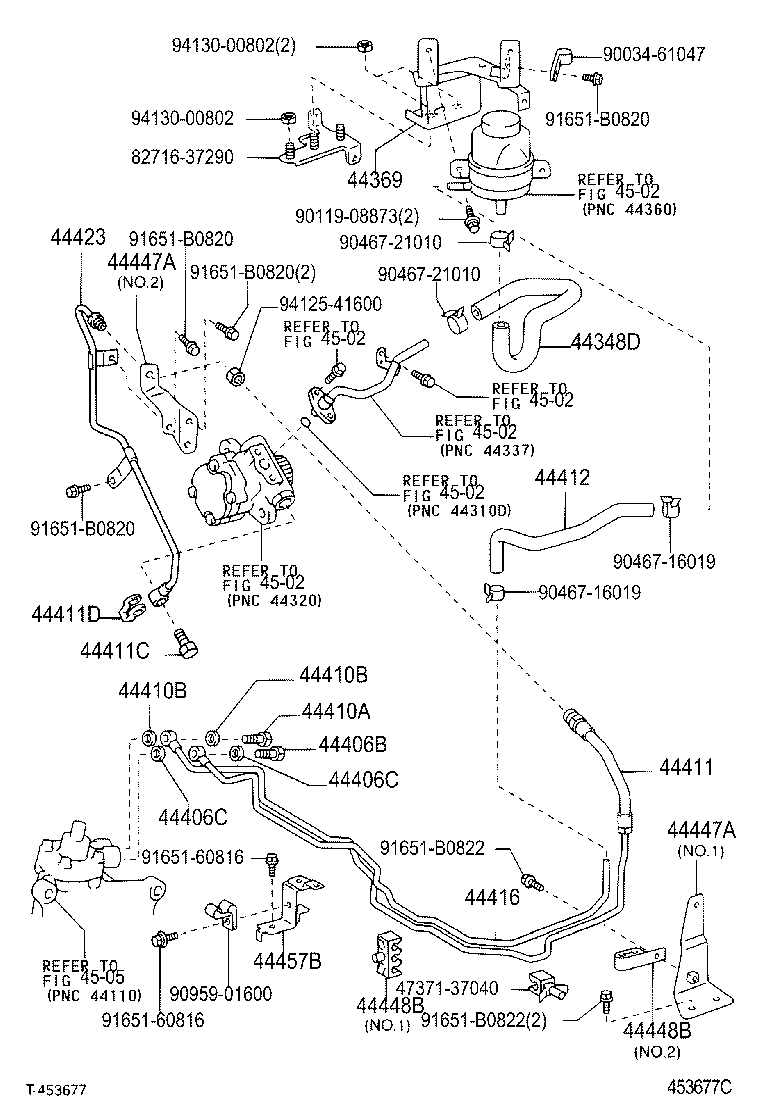

Click highlighted areas on diagram

diagram 44348D 44369 44406B 44406C 44406C 44410A 44410B 44410B 44411 44411C 44411D 44412 44416 44423 44447A 44447A 44448B 44448B 44457B 4502 4502 4502 4502 4502 4502 4505 4737137040 8271637290 9003461047 9011908873 9046716019 9046716019 9046721010 9046721010 9095901600 9165160816 9165160816 91651B0820 91651B0820 91651B0820 91651B0820 91651B0822 91651B0822 9412541600 9413000802 9413000802
Part # Description Qty Price
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37310

XKU414,424

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-37170

XKU414,424

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-14003

XKU414,424

 1
44406C - GASKET(FOR RETURN TUBE)
90430-14235

XKU414,424

 2
44406C - GASKET(FOR RETURN TUBE)
90430-14235

XKU414,424

 2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003

XKU414,424

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

XKU414,424

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

XKU414,424

 2
44411 - HOSE, PRESSURE FEED
44411-37240

XKU414,424

 1
44411-37241

XKU414,424

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

XKU414,424

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030

XKU414,424

 1
44412 - HOSE, RETURN
44412-37140

XKU414,424

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37441

XKU414,424

 1
44416-37440

XKU414,424

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37081

XKU414,424

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37220

XKU414,424

NO.2

 1
44447-37200

XKU414,424

NO.1

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37220

XKU414,424

NO.2

 1
44447-37200

XKU414,424

NO.1

 1
44448B - BRACKET, HOSE SUPPORT, NO.2
44448-37020

XKU414,424

NO.1

 1
44448-37050

XKU414,424

NO.2

 1
44448B - BRACKET, HOSE SUPPORT, NO.2
44448-37020

XKU414,424

NO.1

 1
44448-37050

XKU414,424

NO.2

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-37130

XKU414,424

 1
44457-37080

XKU414,424

 1
Common parts
47371-37040
82716-37290
90034-61047
90119-08873
90467-16019
90467-21010
90959-01600
91651-60816
91651-B0820
91651-B0822
94125-41600
94130-00802
